Table idempiere9.adempiere.ad_relationtype
Defines the sets of record pairs (and the conditions a given pair must fulfill to be part of one)

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_reference_source_id numeric 10  √  NULL::numeric
ad_reference.ad_reference_id adreferencesource_adrelationty R
Source Reference
ad_reference_target_id numeric 10  √  NULL::numeric
ad_reference.ad_reference_id adreferencetarget_adrelationty R
Target Reference
ad_relationtype_id numeric 10 Relation Type
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
isactive bpchar 1 'Y'::bpchar The record is active in the system
isdirected bpchar 1 'N'::bpchar Tells whether one "sees" the other end of the relation from each end or just from the source
name varchar 60 Alphanumeric identifier of the entity
role_source varchar 50  √  null If set, this role will be used as label for the zoom destination instead of the destinations's window name
role_target varchar 50  √  null If set, this role will be used as label for the zoom destination instead of the destinations's window name
type bpchar 1 'I'::bpchar Type of Validation (SQL, Java Script, Java Language)
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
ad_relationtype_uu varchar 36  √  NULL::character varying AD_RelationType_UU
entitytype varchar 40  √  'U'::character varying Dictionary Entity Type; Determines ownership and synchronization

Table contained 6 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_relationtype_id Primary key Asc ad_relationtype_key
ad_relationtype_uu Must be unique Asc ad_relationtype_uu_idx

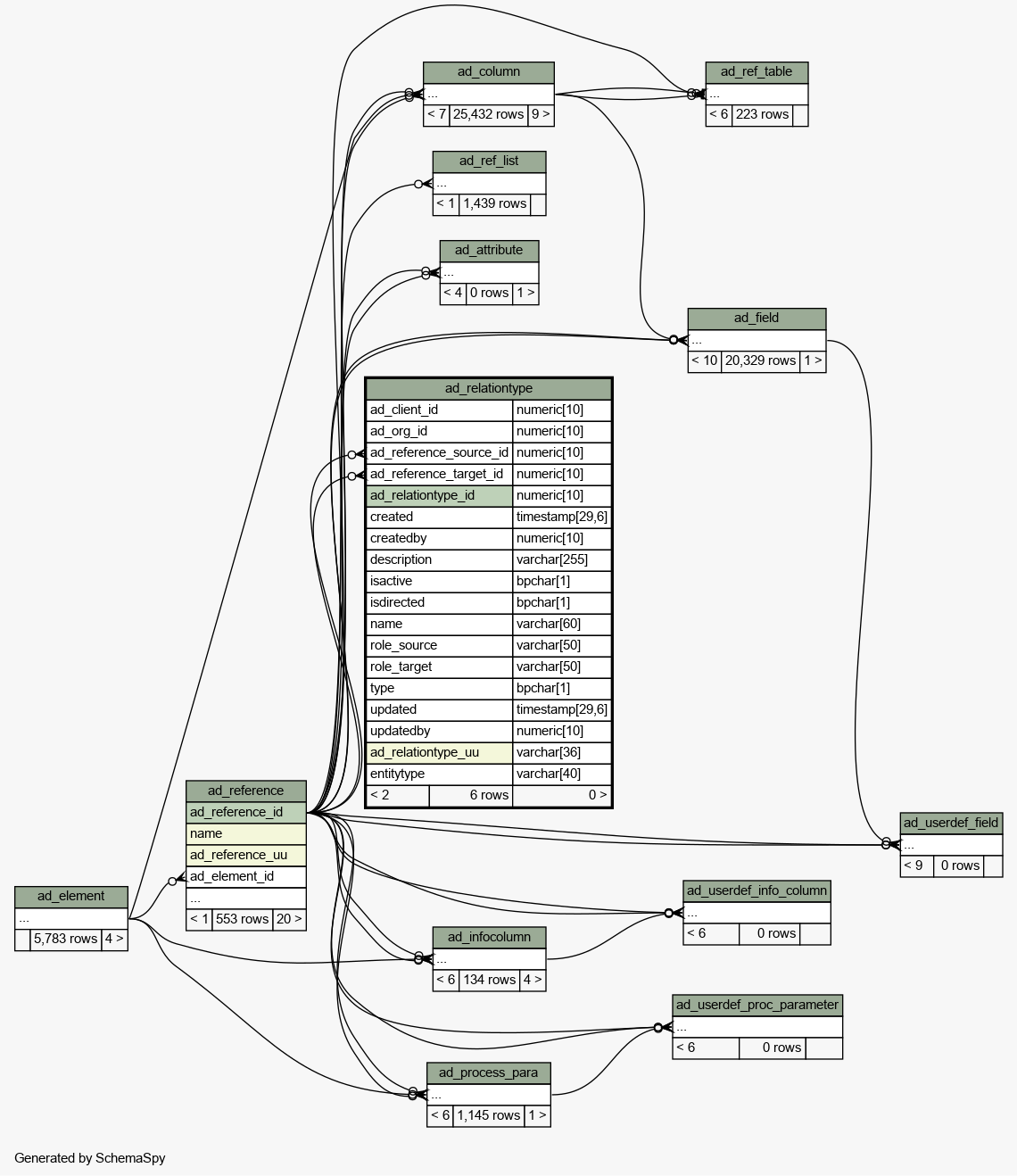

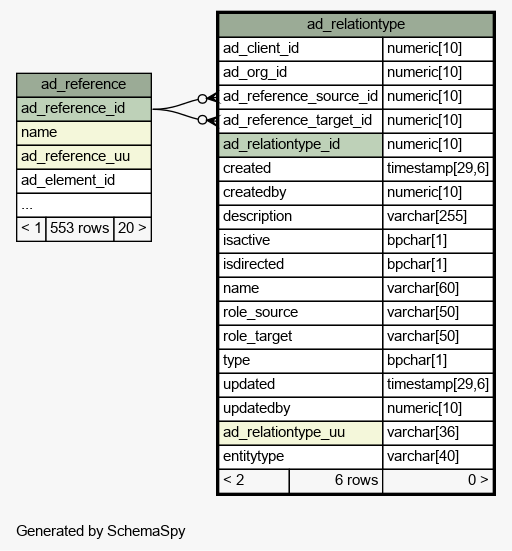

Close relationships  within of separation:
