Table idempiere9.adempiere.ad_infocolumn
Info Column

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_infocolumn_id numeric 10
ad_infoprocess.ad_infocolumn_id adinfocolumn_adinfoprocess R
ad_inforelated.parentrelatedcolumn_id parentrelatedcolumn_adinforela R
ad_inforelated.relatedcolumn_id relatedcolumn_adinforelated R
ad_userdef_info_column.ad_infocolumn_id adinfocolumn_aduserdefinfocolu R
Info Window Column
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
ad_infowindow_id numeric 10
ad_infowindow.ad_infowindow_id adinfowindow_adinfocolumn C
Info and search/select Window
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
selectclause varchar 2000 SQL SELECT clause
seqno numeric 10 0 Method of ordering records; lowest number comes first
isdisplayed bpchar 1 'Y'::bpchar Determines, if this field is displayed
isquerycriteria bpchar 1 'N'::bpchar The column is also used as a query criteria
ad_element_id numeric 10  √  null
ad_element.ad_element_id adelement_adinfocolumn R
System Element enables the central maintenance of column description and help.
ad_reference_id numeric 10
ad_reference.ad_reference_id adreference_adinfocolumn R
System Reference and Validation
ad_infocolumn_uu varchar 36  √  NULL::character varying AD_InfoColumn_UU
ad_reference_value_id numeric 10  √  NULL::numeric
ad_reference.ad_reference_id adreferencevalue_adinfocolumn R
Required to specify, if data type is Table or List
ad_val_rule_id numeric 10  √  NULL::numeric
ad_val_rule.ad_val_rule_id advalrule_adinfocolumn R
Dynamic Validation Rule
iscentrallymaintained bpchar 1 'Y'::bpchar Information maintained in System Element table
displaylogic varchar 2000  √  NULL::character varying If the Field is displayed, the result determines if the field is actually displayed
columnname varchar 30 Name of the column in the database
queryoperator varchar 10  √  NULL::character varying Operator for database query
queryfunction varchar 255  √  NULL::character varying Database function for query
isidentifier bpchar 1 'N'::bpchar This column is part of the record identifier
seqnoselection numeric 10  √  (0)::numeric Selection Column Sequence
defaultvalue varchar 2000  √  NULL::character varying Default value hierarchy, separated by ;
ismandatory bpchar 1 'N'::bpchar Data entry is required in this column
iskey bpchar 1  √  NULL::bpchar This column is the key in this table
isreadonly bpchar 1 'Y'::bpchar Field is read only
placeholder varchar 255  √  NULL::character varying Placeholder
inputfieldvalidation varchar 2000  √  NULL::character varying Input field validaton query
ad_fieldstyle_id numeric 10  √  NULL::numeric
ad_style.ad_style_id adfieldstyle_adinfocolumn R
Field CSS Style
isautocomplete bpchar 1 'N'::bpchar Automatic completion for textfields

Table contained 134 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_infocolumn_id Primary key Asc ad_infocolumn_pkey
ad_infocolumn_uu Must be unique Asc ad_infocolumn_uu_idx

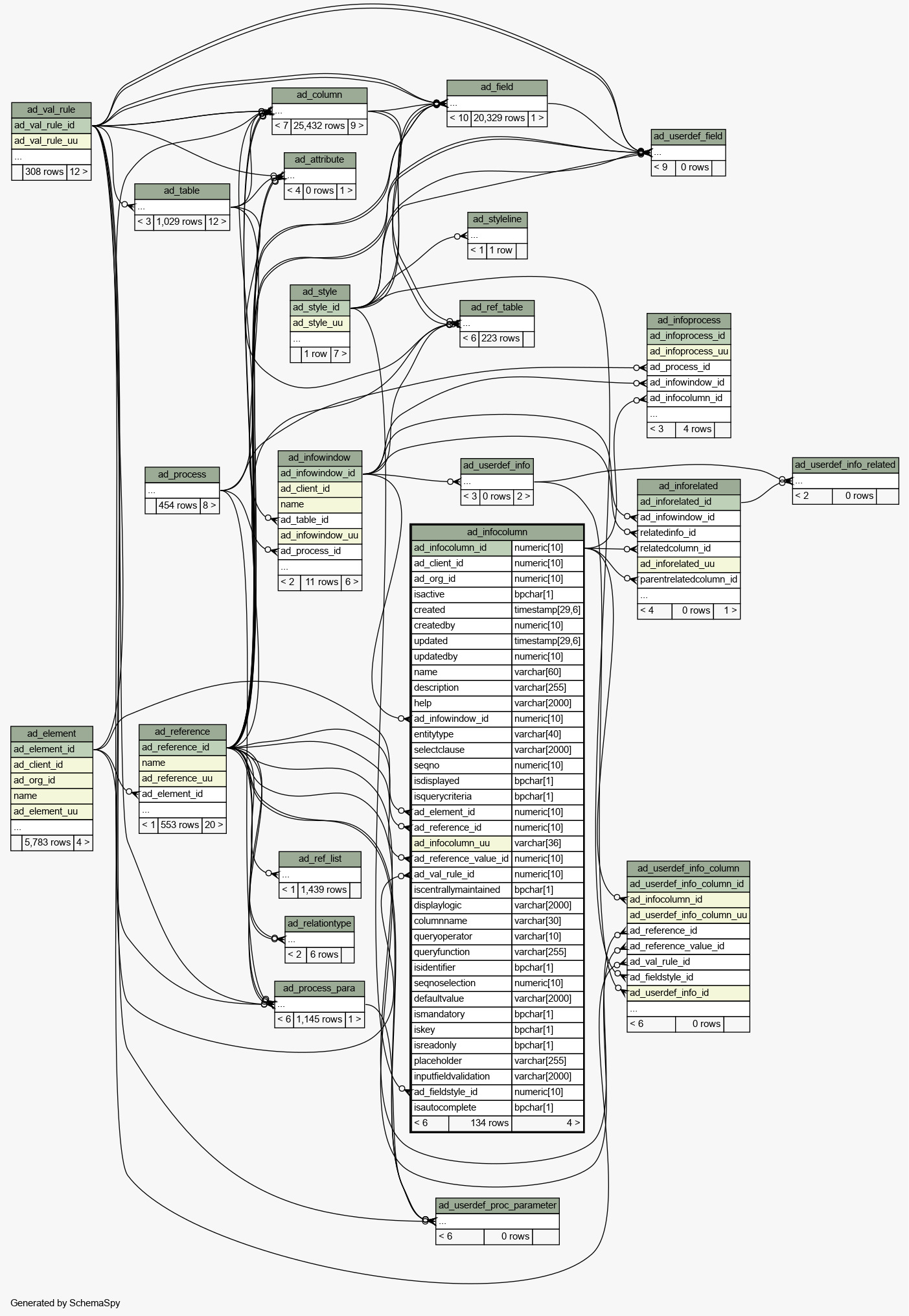

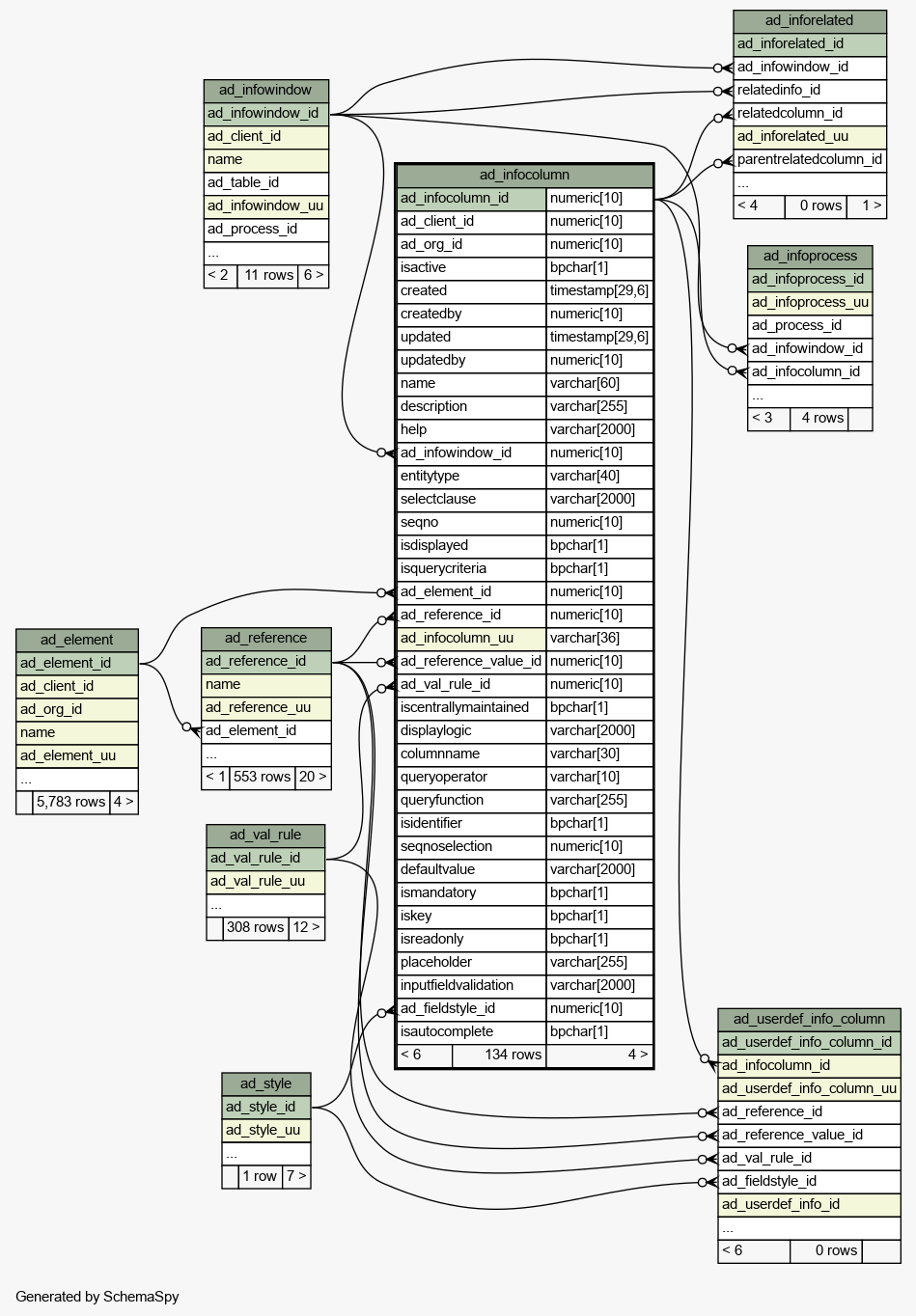

Close relationships  within of separation:
