Table idempiere9.adempiere.ad_indexcolumn
Index definition for column

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Client/Tenant for this installation.
ad_column_id numeric 10  √  null
ad_column.ad_column_id adcolumn_adindexcolumn R
Column in the table
ad_indexcolumn_id numeric 10 Table Index Column
ad_indexcolumn_uu varchar 36  √  NULL::character varying AD_IndexColumn_UU
ad_org_id numeric 10 Organizational entity within client
ad_tableindex_id numeric 10
ad_tableindex.ad_tableindex_id adtableindex_adindexcolumn R
Table Index
columnsql varchar 255  √  NULL::character varying Virtual Column (r/o)
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
isactive bpchar 1 The record is active in the system
seqno numeric 10  √  NULL::numeric Method of ordering records; lowest number comes first
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records

Table contained 1,355 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_indexcolumn_id Primary key Asc ad_indexcolumn_key
ad_indexcolumn_uu Must be unique Asc ad_indexcolumn_uu_idx

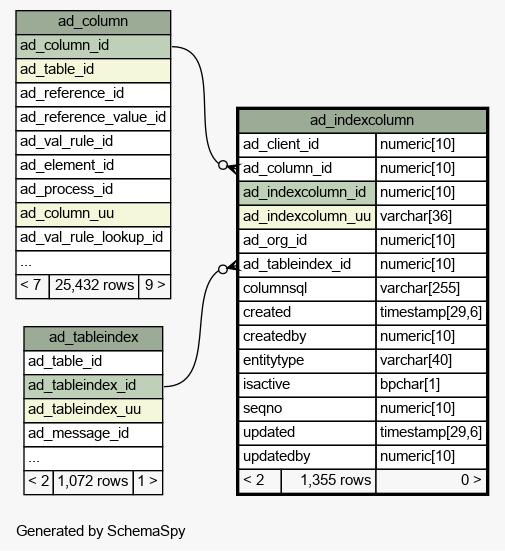

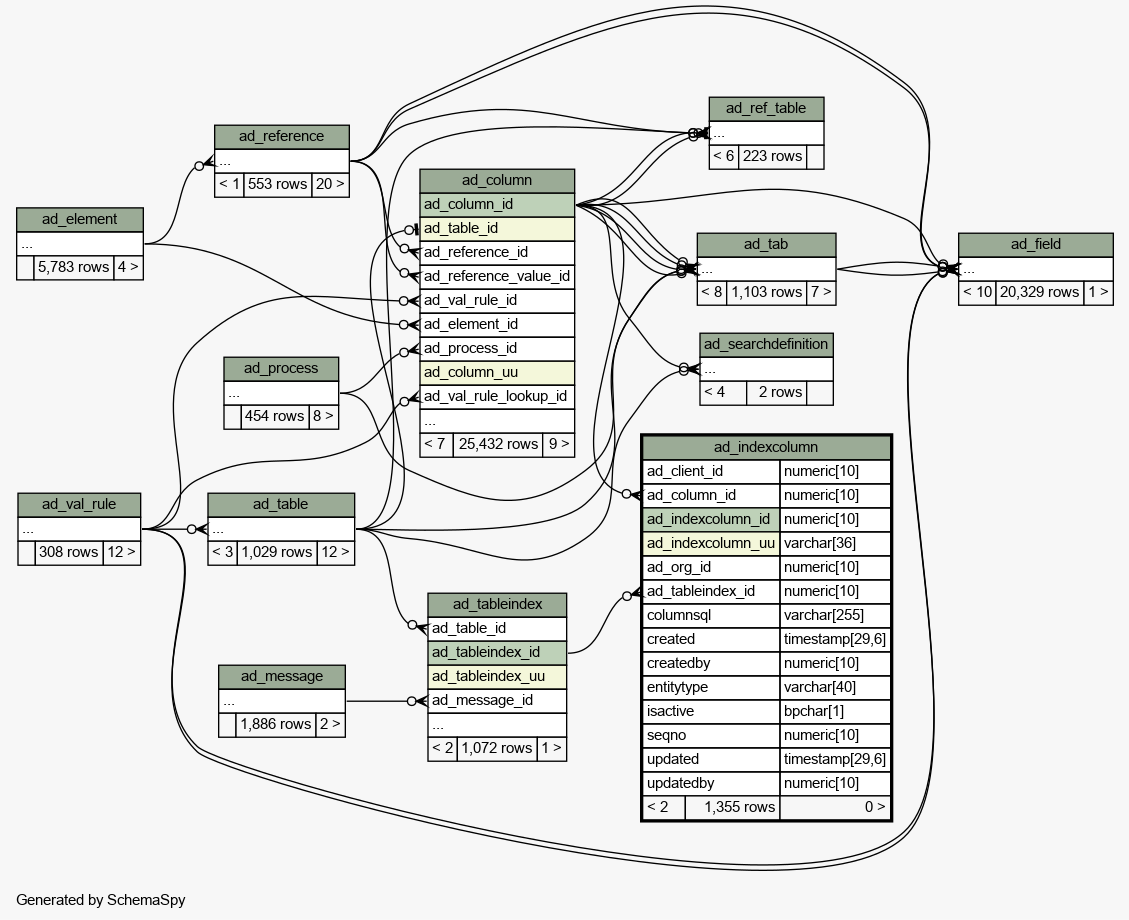

Close relationships  within of separation:
