Table idempiere9.adempiere.ad_fieldgroup
Logical grouping of fields

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_fieldgroup_id numeric 10
ad_field.ad_fieldgroup_id adfieldgroup_adfield R
ad_process_para.ad_fieldgroup_id adfieldgroup_adprocesspara R
ad_userdef_field.ad_fieldgroup_id adfieldgroup_aduserdeffield R
ad_userdef_proc_parameter.ad_fieldgroup_id adfieldgroup_aduserdefprocpara R
Logical grouping of fields
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
fieldgrouptype bpchar 1  √  null Field Group Type
iscollapsedbydefault bpchar 1  √  'N'::bpchar Flag to set the initial state of collapsible field group.
ad_fieldgroup_uu varchar 36  √  NULL::character varying AD_FieldGroup_UU

Table contained 72 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_fieldgroup_id Primary key Asc ad_fieldgroup_pkey
ad_fieldgroup_id Must be unique Asc ad_fieldgroup_key
ad_fieldgroup_uu Must be unique Asc ad_fieldgroup_uu_idx

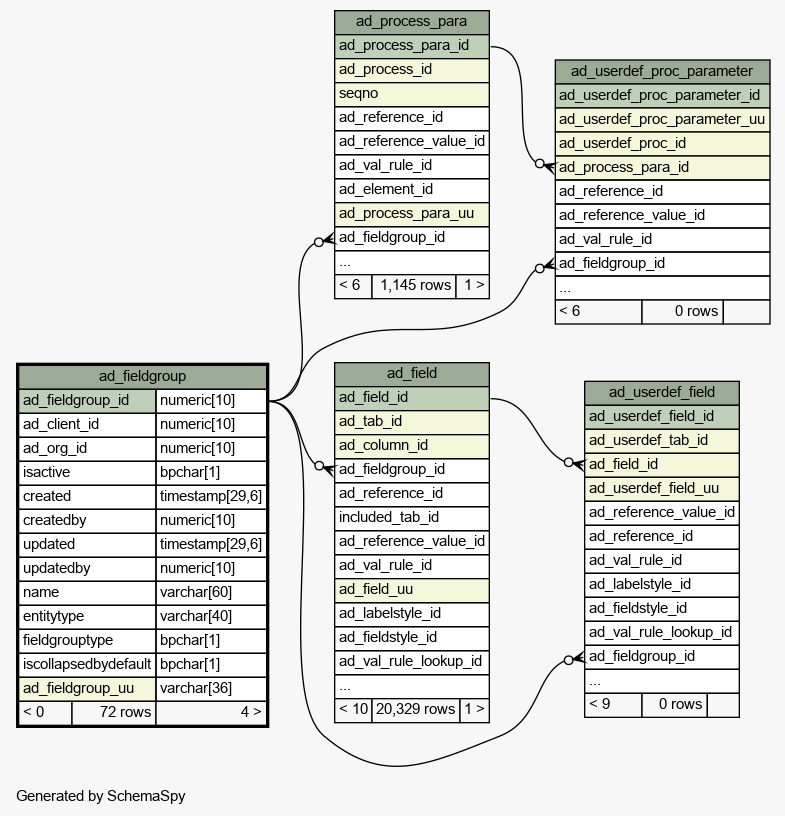

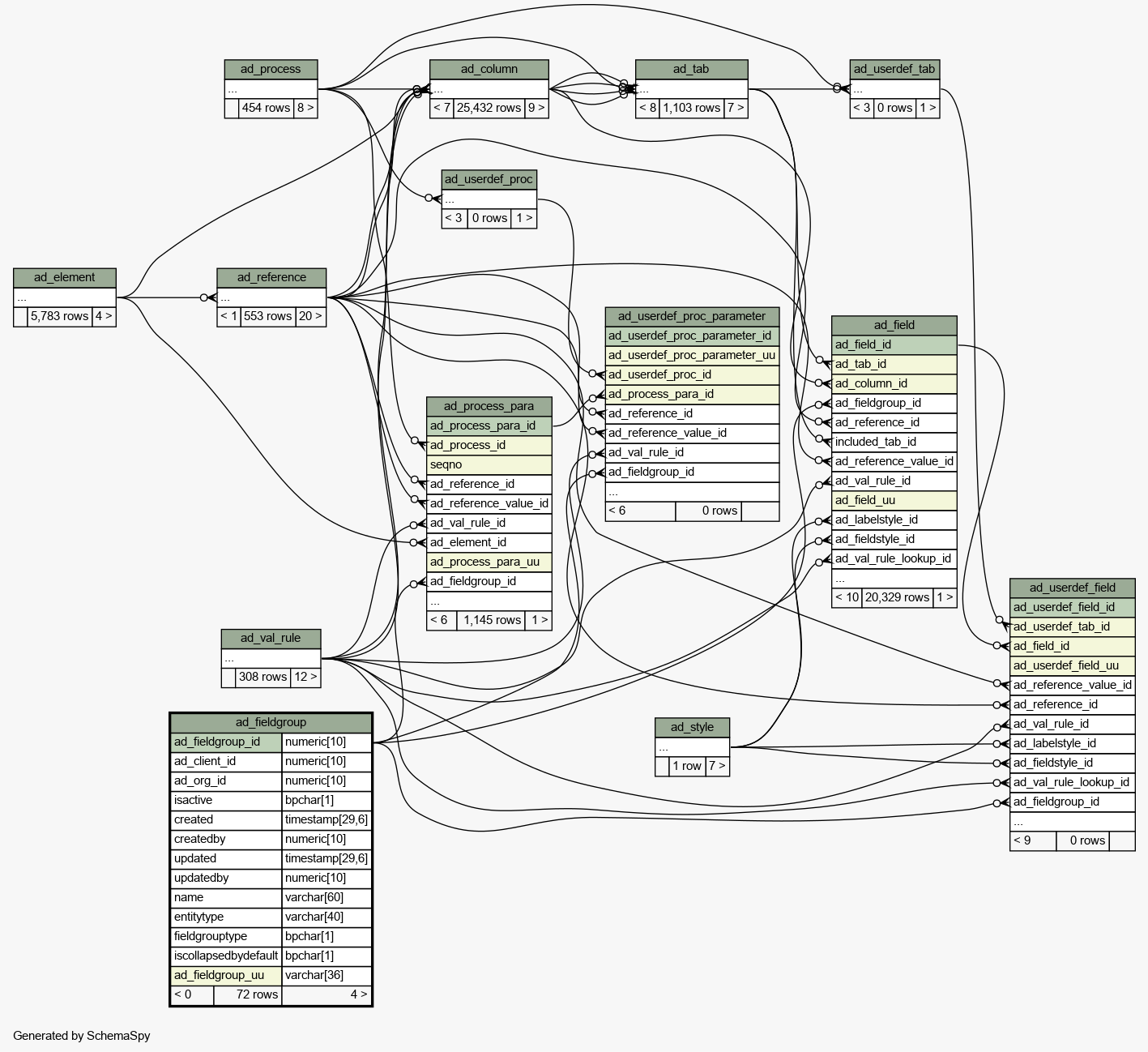

Close relationships  within of separation:
