Table idempiere9.adempiere.ad_workflow
Workflow or combination of tasks

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_workflow_id numeric 10
ad_process.ad_workflow_id adworkflow_adprocess R
Workflow or combination of tasks
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10
ad_org.ad_org_id workfloworg R
Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help text 2147483647  √  null Comment or Hint
accesslevel bpchar 1 Access Level required
ad_wf_node_id numeric 10  √  null Workflow Node (activity), step or process
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
durationunit bpchar 1  √  null Unit of Duration
author varchar 20 'ComPiere'::character varying Author/Creator of the Entity
version numeric 10 0 Version of the table definition
validfrom timestamp 29,6  √  null Valid from including this date (first day)
validto timestamp 29,6  √  null Valid to including this date (last day)
priority numeric 10  √  null Indicates if this request is of a high, medium or low priority.
limit numeric 10  √  null Maximum Duration in Duration Unit
duration numeric 10 0 Normal Duration in Duration Unit
cost numeric 0 Cost information
workingtime numeric 10 0 Workflow Simulation Execution Time
waitingtime numeric 10 0 Workflow Simulation Waiting time
ad_wf_responsible_id numeric 10  √  null Responsible for Workflow Execution
publishstatus bpchar 1 Status of Publication
ad_workflowprocessor_id numeric 10  √  null Workflow Processor Server
value varchar 40 Search key for the record in the format required - must be unique
isdefault bpchar 1 'N'::bpchar Default value
ad_table_id numeric 10  √  null
ad_table.ad_table_id adtable_adworkflow R
Database Table information
validateworkflow bpchar 1  √  null Validate Workflow
workflowtype bpchar 1 'G'::bpchar Type of Workflow
docvaluelogic varchar 2000  √  null Logic to determine Workflow Start - If true, a workflow process is started for the document
isvalid bpchar 1 'N'::bpchar Element is valid
s_resource_id numeric 10  √  null Resource
setuptime numeric 10  √  null Setup time before starting Production
movingtime numeric 10  √  null Moving Time
processtype bpchar 2  √  null Process Type
documentno varchar 30  √  null Document sequence number of the document
qtybatchsize numeric 0  √  (1)::numeric Qty Batch Size
queuingtime numeric 10  √  null Queue time is the time a job waits at a work center before begin handled.
isbetafunctionality bpchar 1 'N'::bpchar This functionality is considered Beta
yield numeric 10  √  (100)::numeric The Yield is the percentage of a lot that is expected to be of acceptable wuality may fall below 100 percent
unitscycles numeric 0  √  null The Units by Cycles are defined for process type Flow Repetitive Dedicated and indicated the product to be manufactured on a production line for duration unit.
overlapunits numeric 0  √  null Overlap Units are number of units that must be completed before they are moved the next activity
ad_workflow_uu varchar 36  √  NULL::character varying AD_Workflow_UU
ad_ctxhelp_id numeric 10  √  NULL::numeric Context Help

Table contained 56 rows at 2021-12-25 14:44 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_workflow_id Primary key Asc ad_workflow_pkey
ad_client_id + name Must be unique Asc/Asc ad_workflow_name
ad_workflow_uu Must be unique Asc ad_workflow_uu_idx

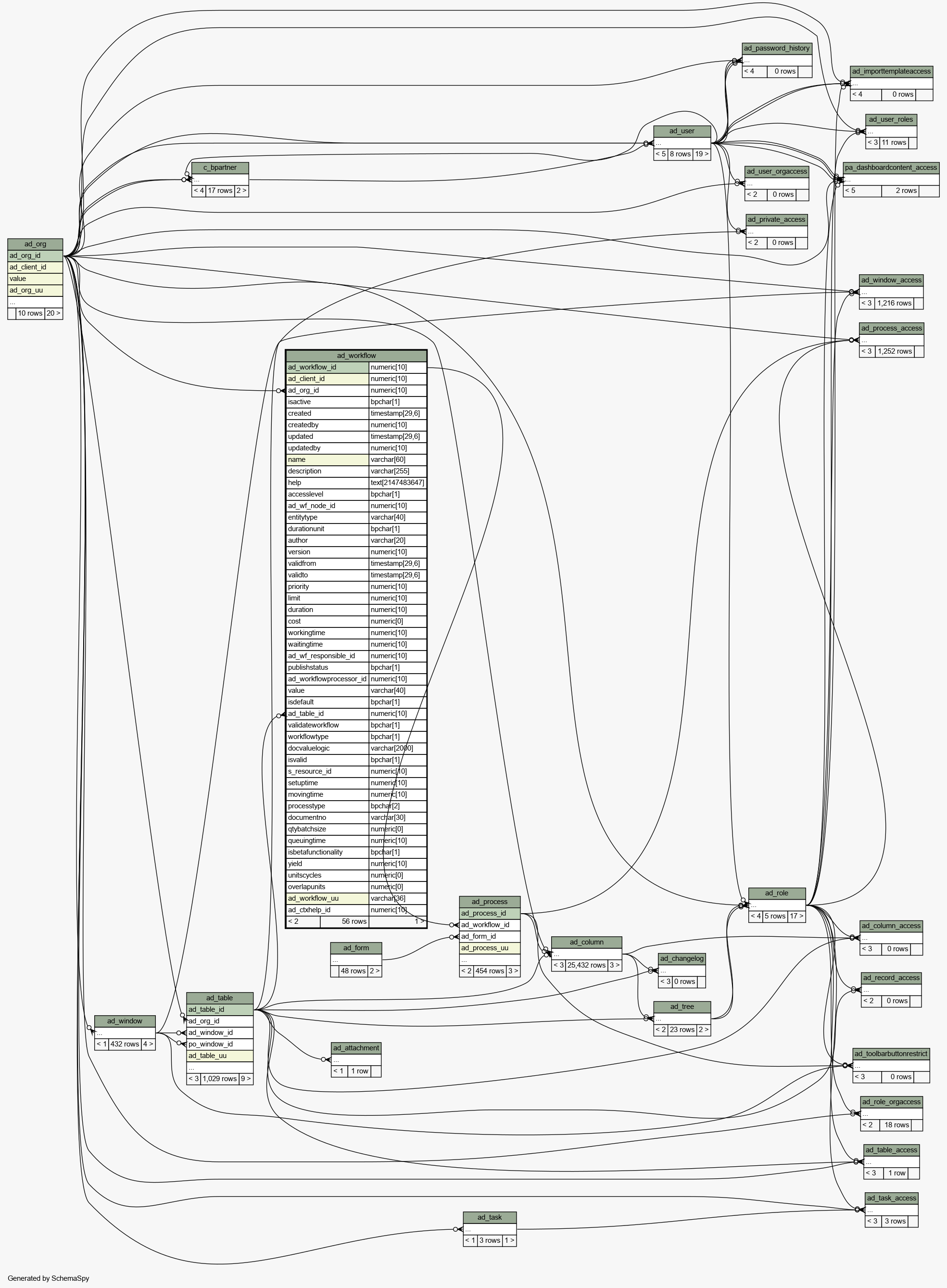

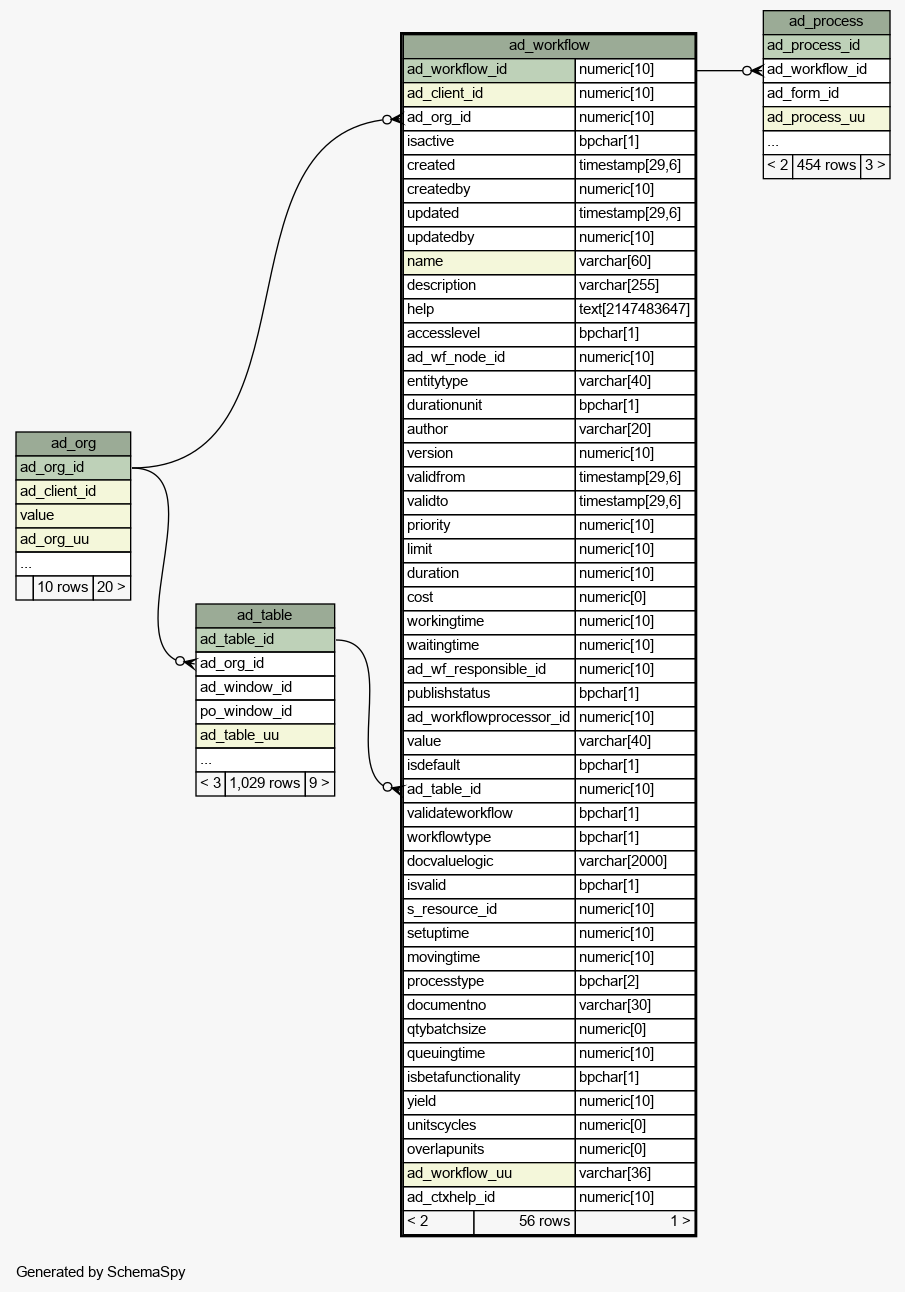

Close relationships  within of separation:
