Table idempiere9.adempiere.ad_ldapaccess
Ldap Access Log

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_ldapaccess_id numeric 10 Ldap Access Log
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_ldapprocessor_id numeric 10 LDAP Server to authenticate and authorize external systems based on iDempiere
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_adldapaccess R
User within the system - Internal or Business Partner Contact
r_interestarea_id numeric 10  √  null Interest Area or Topic
iserror bpchar 1 'N'::bpchar An Error occurred in the execution
summary varchar 2000  √  null Textual summary of this request
description varchar 255  √  null Optional short description of the record
ad_ldapaccess_uu varchar 36  √  NULL::character varying AD_LdapAccess_UU

Table contained 0 rows at 2021-12-25 14:44 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_ldapaccess_id Primary key Asc ad_ldapaccess_pkey
ad_ldapaccess_uu Must be unique Asc ad_ldapaccess_uu_idx

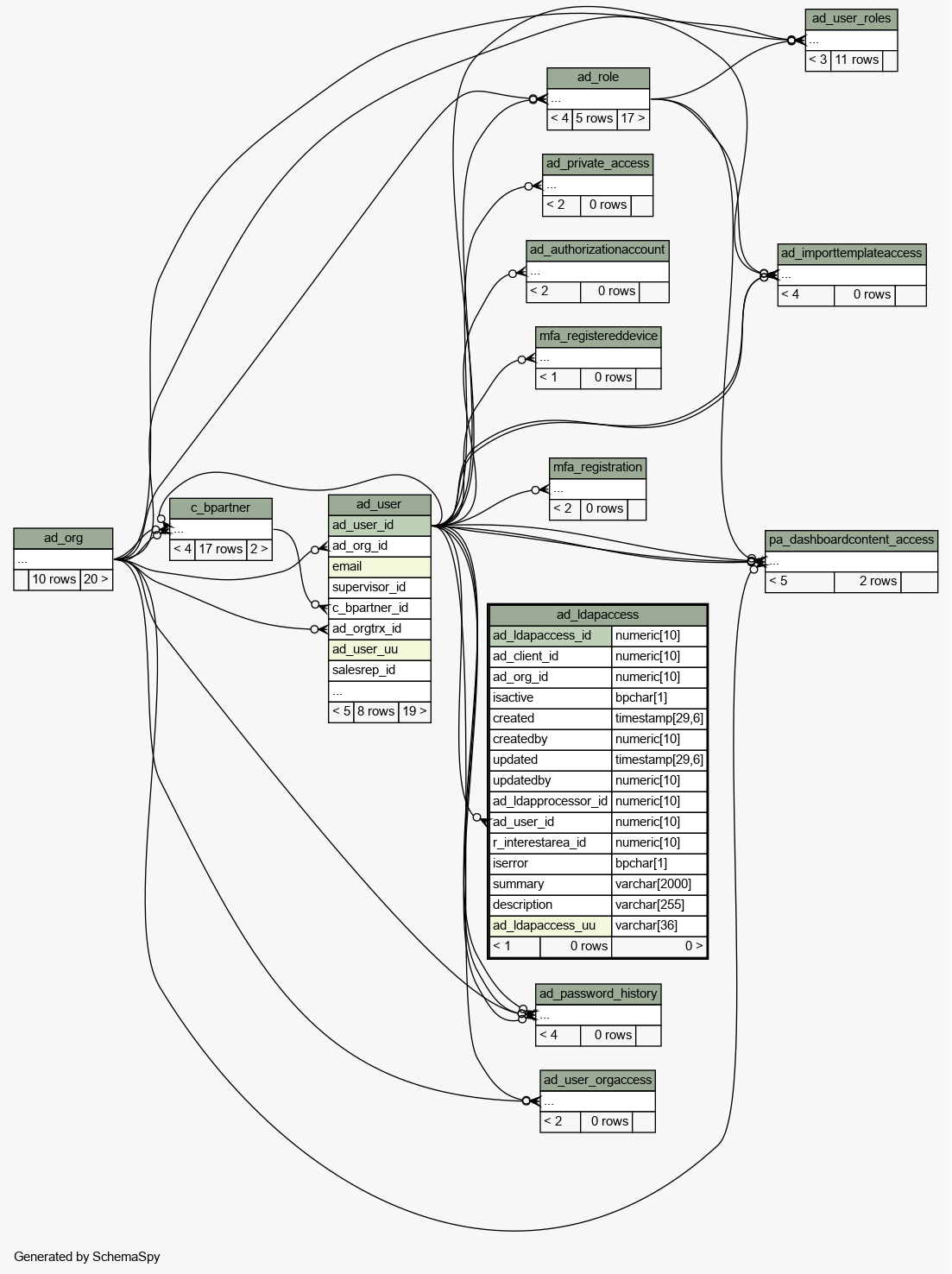

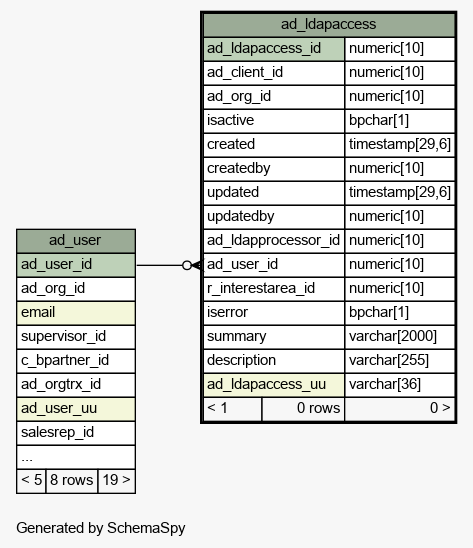

Close relationships  within of separation:
