Table idempiere9.adempiere.ad_attachment
Attachment for the document

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_attachment_id numeric 10 Attachment for the document
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_table_id numeric 10
ad_table.ad_table_id adtable_adattachment R
Database Table information
record_id numeric 10 Direct internal record ID
title varchar 60 Name this entity is referred to as
binarydata bytea 2147483647  √  null Binary Data
textmsg varchar 2000  √  null Text Message
ad_attachment_uu varchar 36  √  NULL::character varying AD_Attachment_UU
ad_storageprovider_id numeric 10  √  NULL::numeric Storage Provider

Table contained 1 rows at 2021-12-25 14:44 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_attachment_id Primary key Asc ad_attachment_pkey
ad_table_id + record_id Must be unique Asc/Asc ad_attachment_record
ad_attachment_uu Must be unique Asc ad_attachment_uu_idx

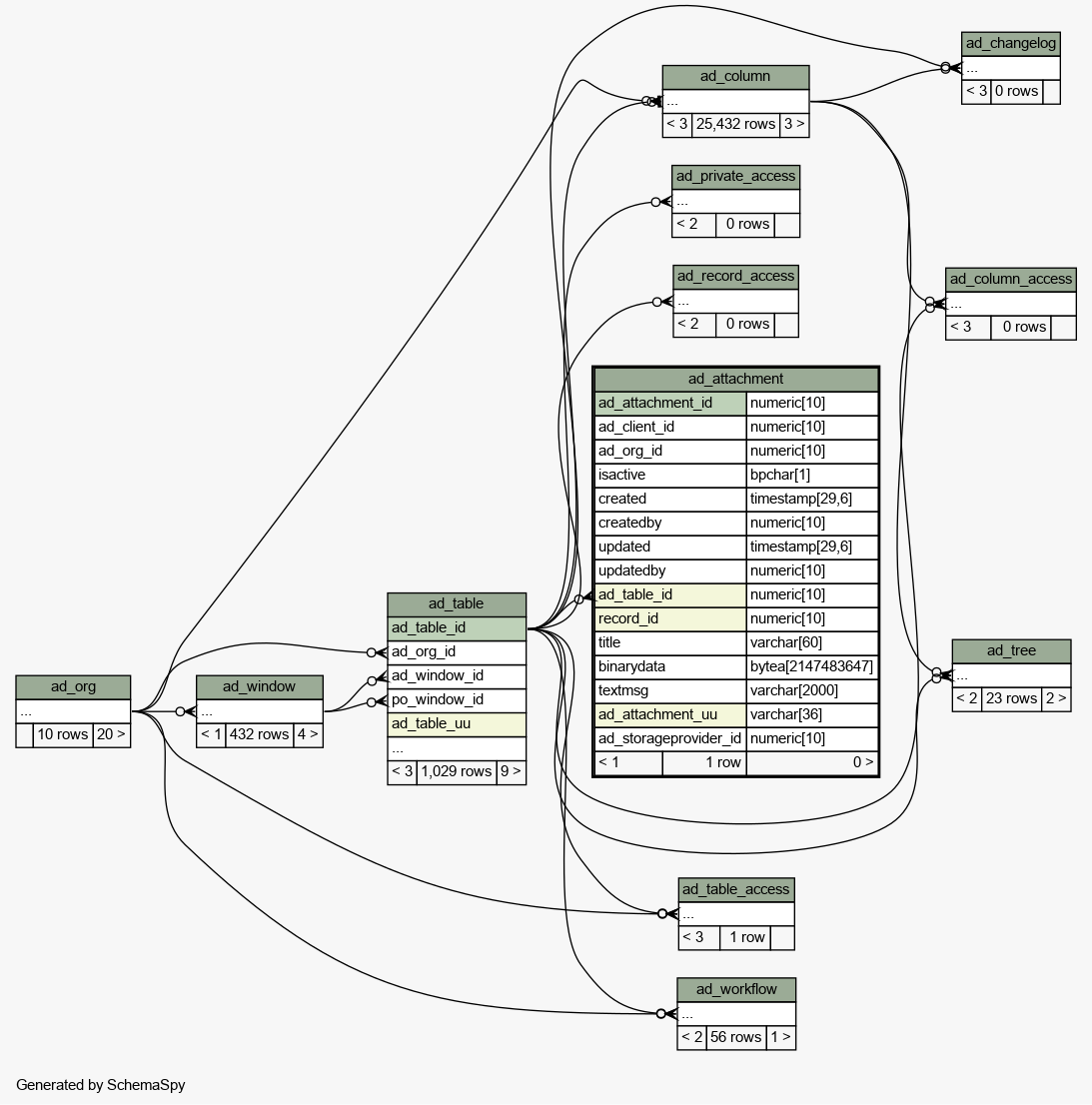

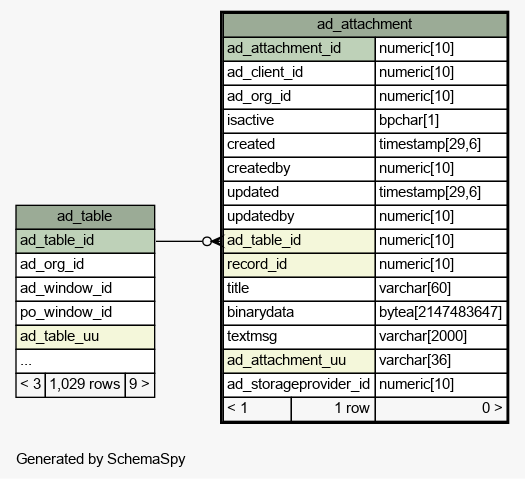

Close relationships  within of separation:
