Table idempiere11.adempiere.ad_wf_processdata
Workflow Process Context

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_processdata_id numeric 10 Workflow Process Context
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_wf_process_id numeric 10
ad_wf_process.ad_wf_process_id adwfproccess_adwfprocessdata C
Actual Workflow Process Instance
attributename varchar 60 Name of the Attribute
attributevalue varchar 60  √  null Value of the Attribute
ad_wf_processdata_uu varchar 36  √  NULL::character varying AD_WF_ProcessData_UU

Table contained 0 rows at 2024-01-03 13:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_processdata_id Primary key Asc ad_wf_processdata_pkey
ad_wf_process_id Performance Asc ad_wf_processdata_process
ad_wf_processdata_uu Must be unique Asc ad_wf_processdata_uu_idx

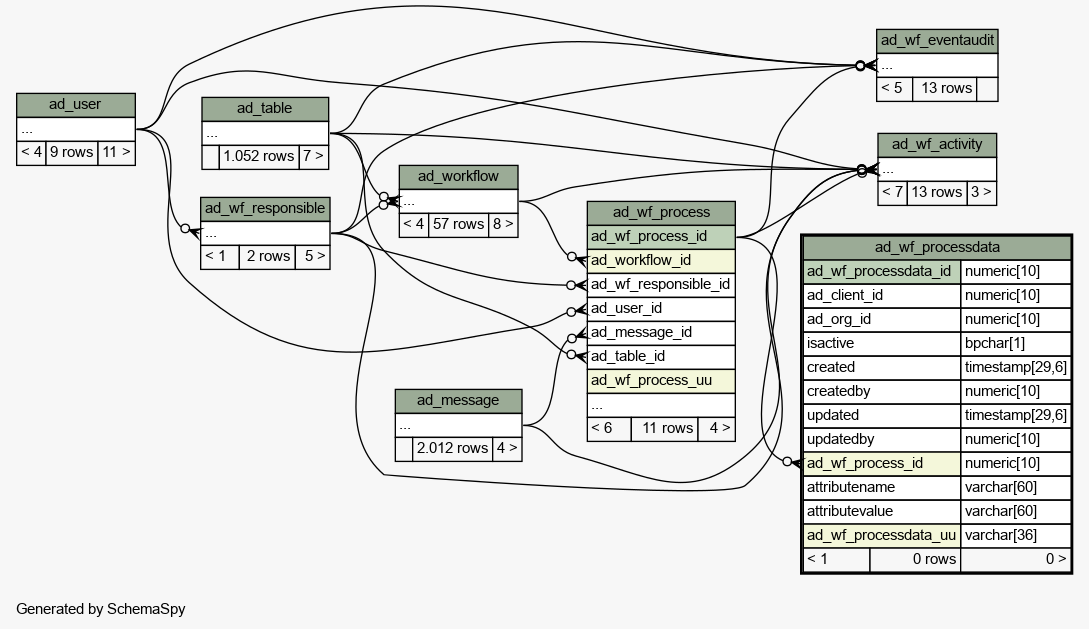

Close relationships  within of separation:
