Table idempiere11.adempiere.ad_wf_block
Workflow Transaction Execution Block

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_block_id numeric 10
ad_wf_node.ad_wf_block_id adwfblock_adwfnode N
Workflow Transaction Execution Block
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
ad_workflow_id numeric 10
ad_workflow.ad_workflow_id adworkflow_adwfblock C
Workflow or combination of tasks
ad_wf_block_uu varchar 36  √  NULL::character varying AD_WF_Block_UU

Table contained 0 rows at 2024-01-03 13:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_block_id Primary key Asc ad_wf_block_pkey
ad_wf_block_uu Must be unique Asc ad_wf_block_uu_idx

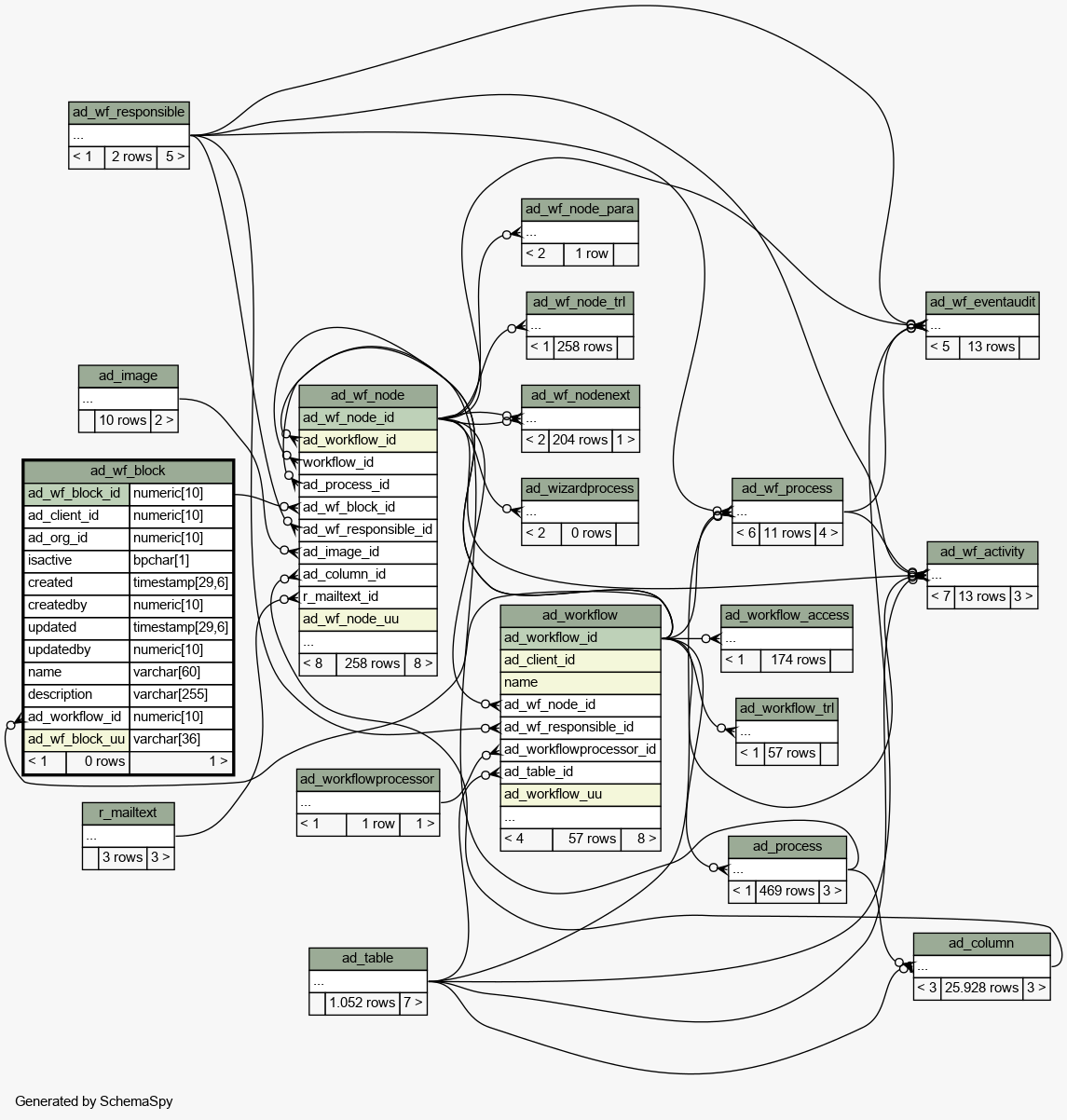

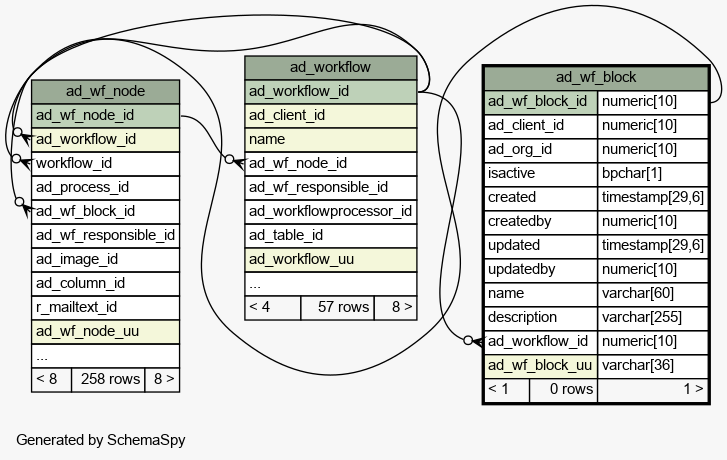

Close relationships  within of separation:
