Table idempiere11.adempiere.ad_image
System Image or Icon

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_image_id numeric 10
ad_user.ad_image_id adimage_aduser R
ad_wf_node.ad_image_id adimage_adwfnode R
Image or Icon
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
imageurl varchar 120  √  null URL of image
binarydata bytea 2147483647  √  null Binary Data
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
description varchar 255  √  null Optional short description of the record
ad_image_uu varchar 36  √  NULL::character varying AD_Image_UU
ad_storageprovider_id numeric 10  √  NULL::numeric Storage Provider

Table contained 10 rows at 2024-01-03 13:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_image_id Primary key Asc ad_image_pkey
ad_image_uu Must be unique Asc ad_image_uu_idx

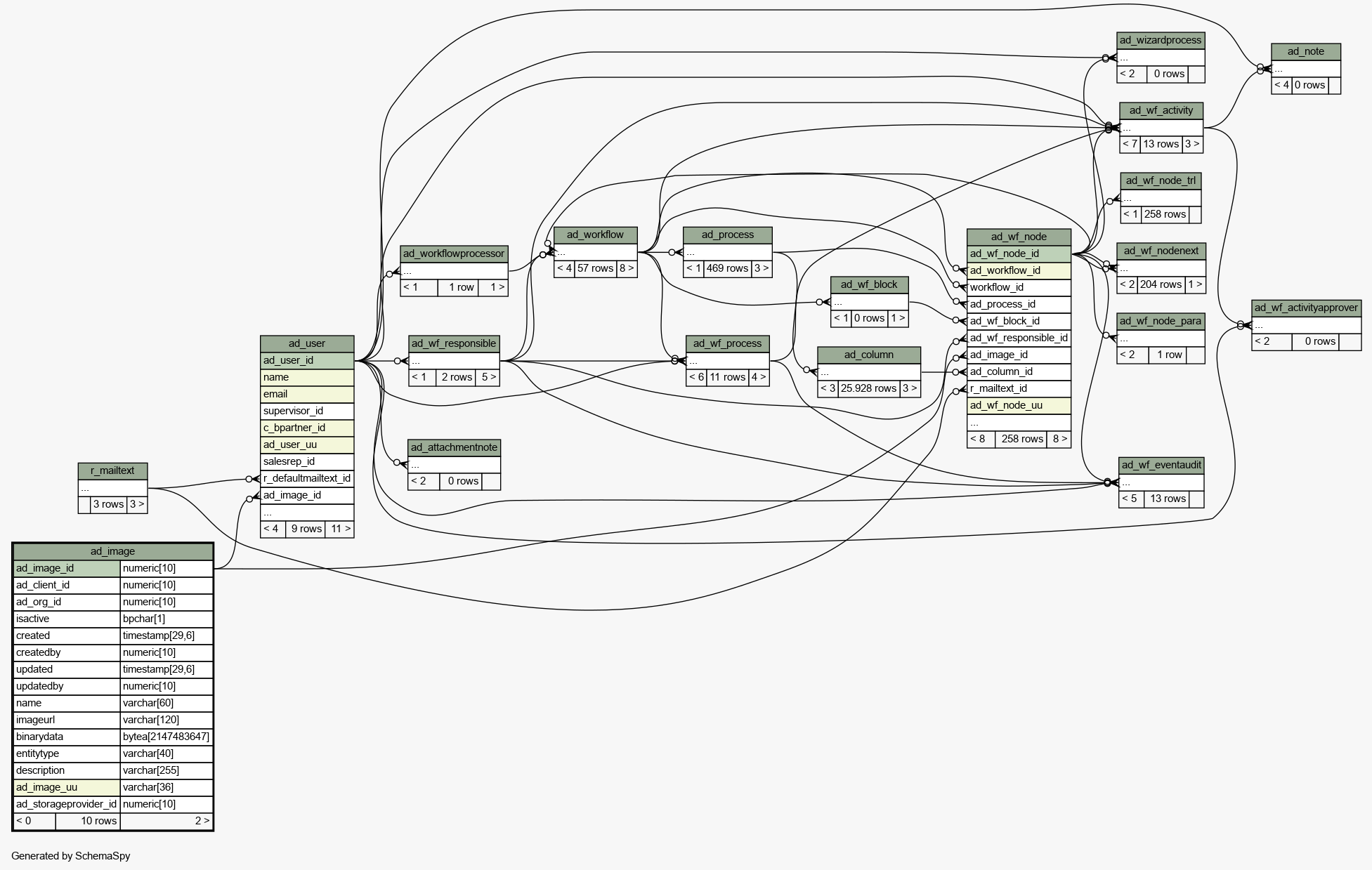

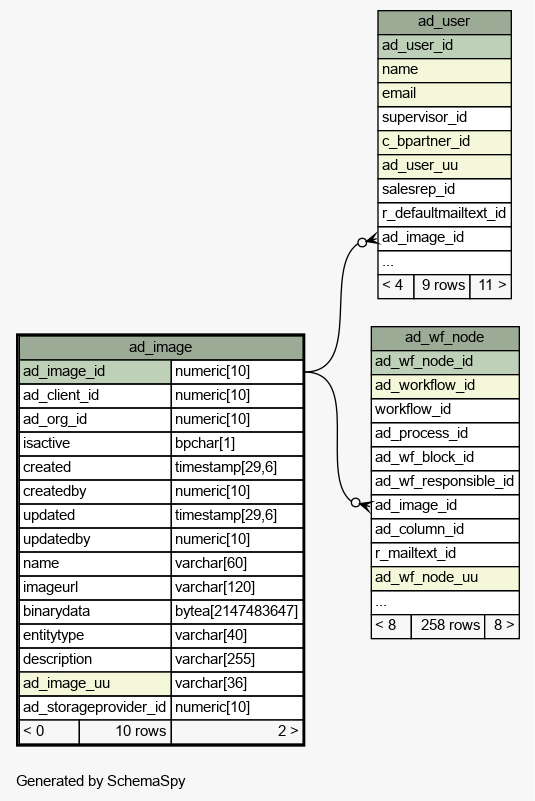

Close relationships  within of separation:
