Table idempiere11.adempiere.ad_attachmentnote
Personal Attachment Note

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_attachmentnote_id numeric 10 Personal Attachment Note
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_attachment_id numeric 10
ad_attachment.ad_attachment_id adattachment_note R
Attachment for the document
ad_user_id numeric 10
ad_user.ad_user_id aduser_adattachmentnote R
User within the system - Internal or Business Partner Contact
title varchar 60 Name this entity is referred to as
textmsg varchar 2000 Text Message
ad_attachmentnote_uu varchar 36  √  NULL::character varying AD_AttachmentNote_UU

Table contained 0 rows at 2024-01-03 13:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_attachmentnote_id Primary key Asc ad_attachmentnote_pkey
ad_attachmentnote_uu Must be unique Asc ad_attachmentnote_uu_idx

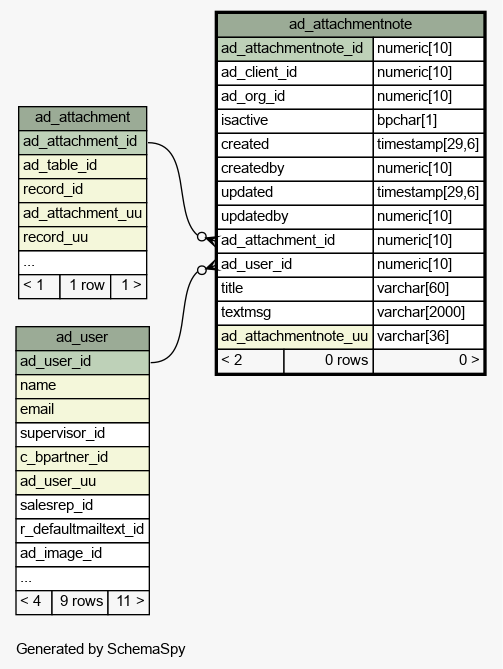

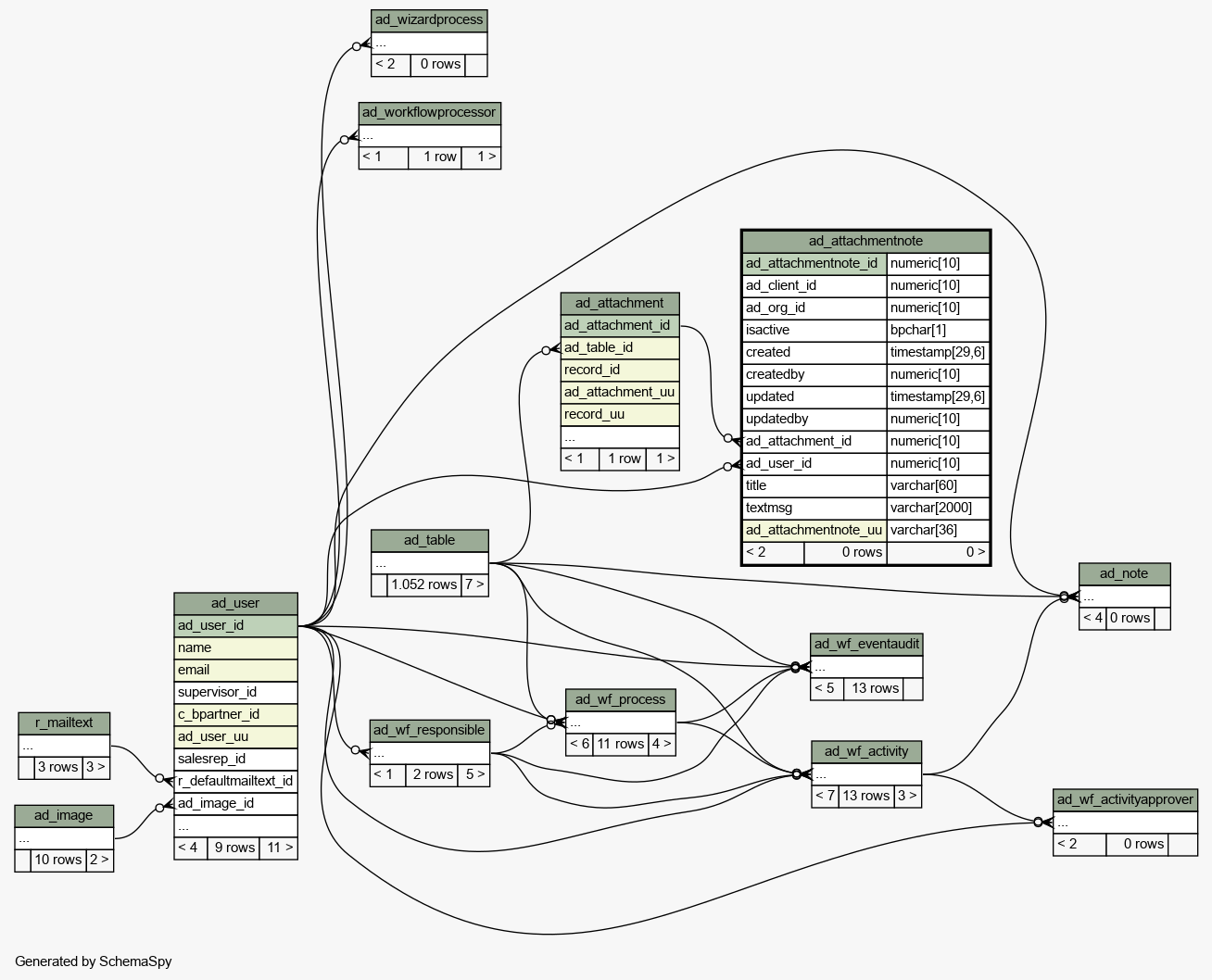

Close relationships  within of separation:
