Table idempiere11.adempiere.ws_webservicefieldinput
Web Service Field Input

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_column_id numeric 10  √  null Column in the table
ad_org_id numeric 10 Organizational entity within tenant
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10  √  null User who created this records
isactive bpchar 1 'Y'::bpchar The record is active in the system
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10  √  null User who updated this records
ws_webservicefieldinput_id numeric 10 Web Service Field Input
ws_webservicetype_id numeric 10
ws_webservicetype.ws_webservicetype_id wswebservicetype_wswebservicfi R
Web Service Type
ad_reference_id numeric 10  √  NULL::numeric System Reference and Validation
columnname varchar 30  √  NULL::character varying Name of the column in the database
identifierlogic varchar 2000  √  null Identifier Logic
isidentifier bpchar 1  √  'N'::bpchar This column is part of the record identifier
isnullidentifier bpchar 1  √  'N'::bpchar Should allow null value for identifier field
ws_webservicefieldinput_uu varchar 36  √  NULL::character varying WS_WebServiceFieldInput_UU
ad_reference_value_id numeric 10  √  NULL::numeric Required to specify, if data type is Table or List

Table contained 45 rows at 2024-01-03 13:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ws_webservicefieldinput_id Primary key Asc ws_webservicefieldinput_key
ws_webservicefieldinput_uu Must be unique Asc ws_webservicefieldinput_uu_idx

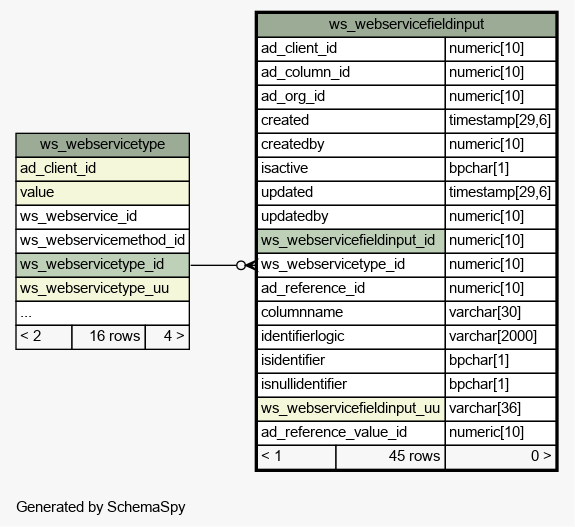

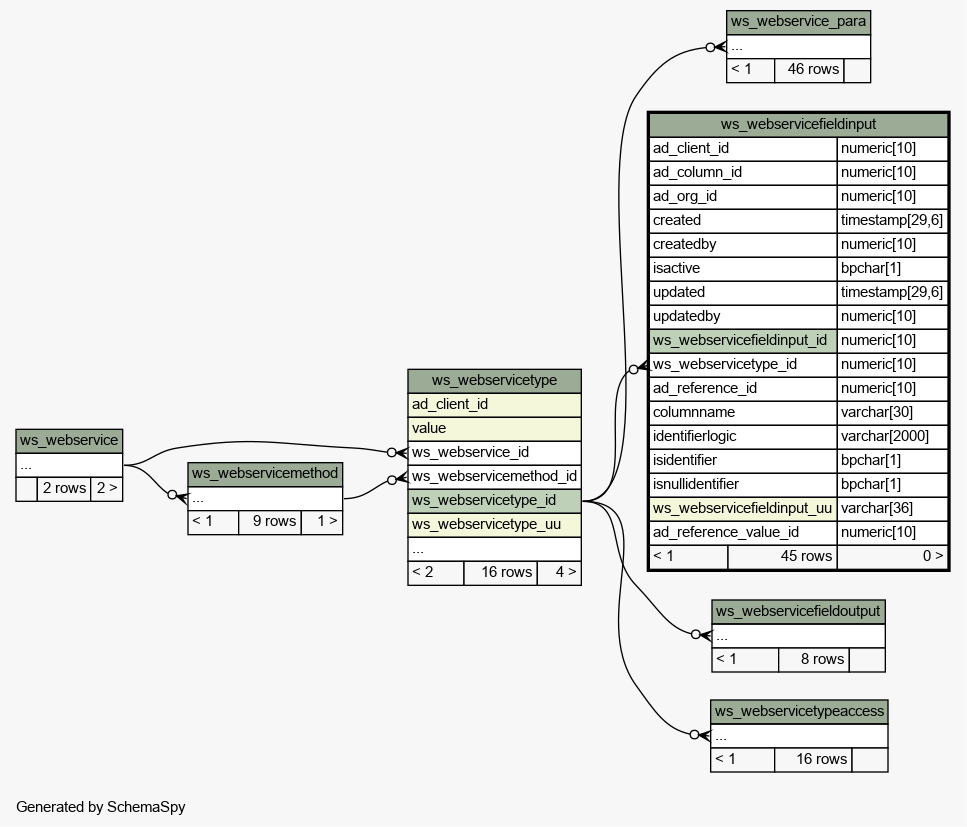

Close relationships  within of separation:
