Table idempiere11.adempiere.c_activity
Business Activity

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
c_activity_id numeric 10
c_project.c_activity_id cactivity_cproject R
Business Activity
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40 Search key for the record in the format required - must be unique
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
issummary bpchar 1 'N'::bpchar This is a summary entity
help varchar 2000  √  null Comment or Hint
c_activity_uu varchar 36  √  NULL::character varying C_Activity_UU

Table contained 0 rows at 2024-01-03 13:56 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_activity_id Primary key Asc c_activity_pkey
c_activity_uu Must be unique Asc c_activity_uu_idx
ad_client_id + value Must be unique Asc/Asc c_activity_value

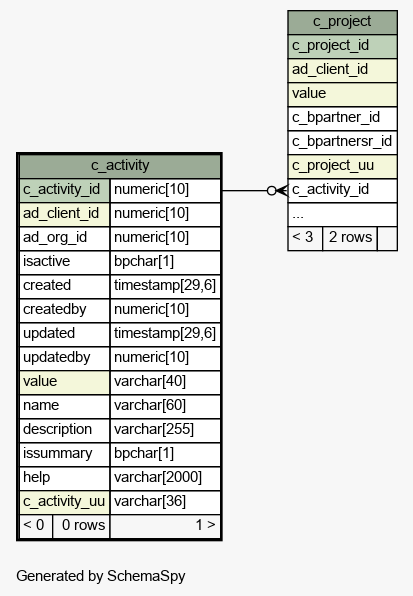

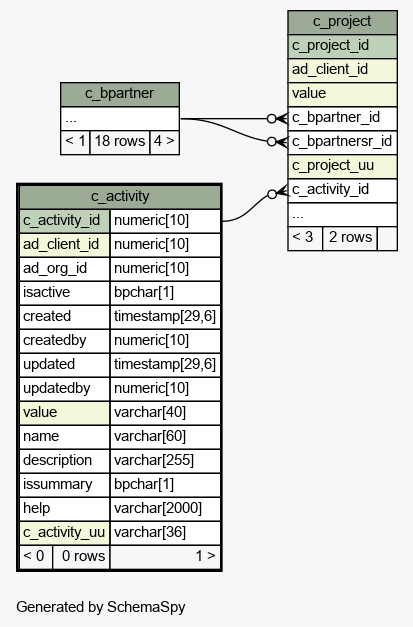

Close relationships  within of separation:
