Table idempiere11.adempiere.ad_workflowprocessor
Workflow Processor Server

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_workflowprocessor_id numeric 10
ad_workflow.ad_workflowprocessor_id adworkflowprocessor_adwf N
ad_workflowprocessorlog.ad_workflowprocessor_id adworkflowprocessor_log C
Workflow Processor Server
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
frequencytype bpchar 1  √  null Frequency of event
frequency numeric 10  √  null Frequency of events
datelastrun timestamp 29,6  √  null Date the process was last run.
datenextrun timestamp 29,6  √  null Date the process will run next
supervisor_id numeric 10
ad_user.ad_user_id aduser_adworkflowprocessor R
Supervisor for this user/organization - used for escalation and approval
keeplogdays numeric 10 Number of days to keep the log entries
processing bpchar 1  √  null Process Now
inactivityalertdays numeric 10  √  0 Send Alert when there is no activity after days (0= no alert)
reminddays numeric 10  √  0 Days between sending Reminder Emails for a due or inactive Document
alertoverpriority numeric 10  √  null Send alert email when over priority
ad_workflowprocessor_uu varchar 36  √  NULL::character varying AD_WorkflowProcessor_UU
ad_schedule_id numeric 10 NULL::numeric
ad_schedule.ad_schedule_id adschedule_adworkflowprocessor R
Schedule

Table contained 1 rows at 2024-01-03 13:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_workflowprocessor_id Primary key Asc ad_workflowprocessor_pkey
ad_workflowprocessor_uu Must be unique Asc ad_workflowprocessor_uu_idx

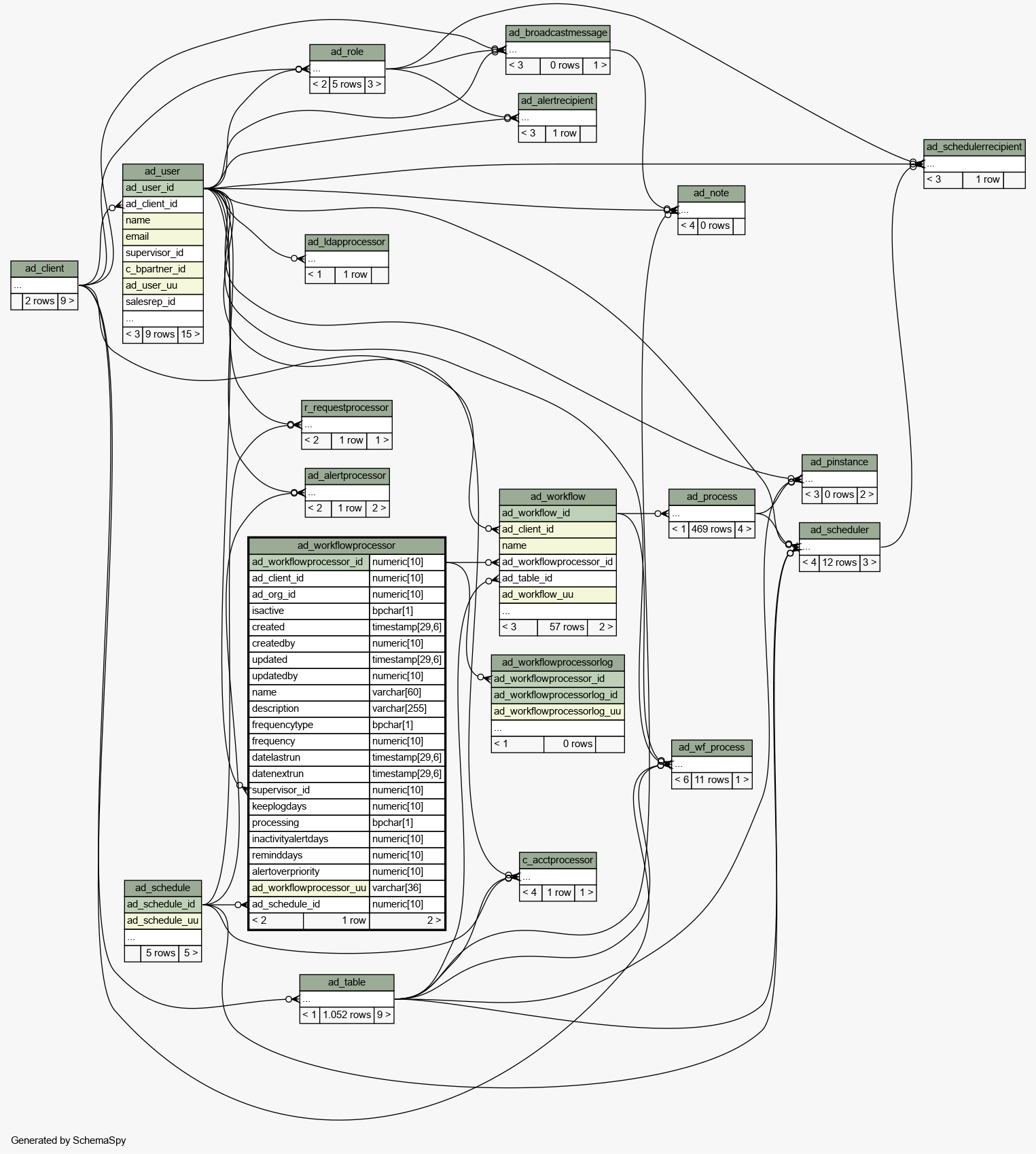

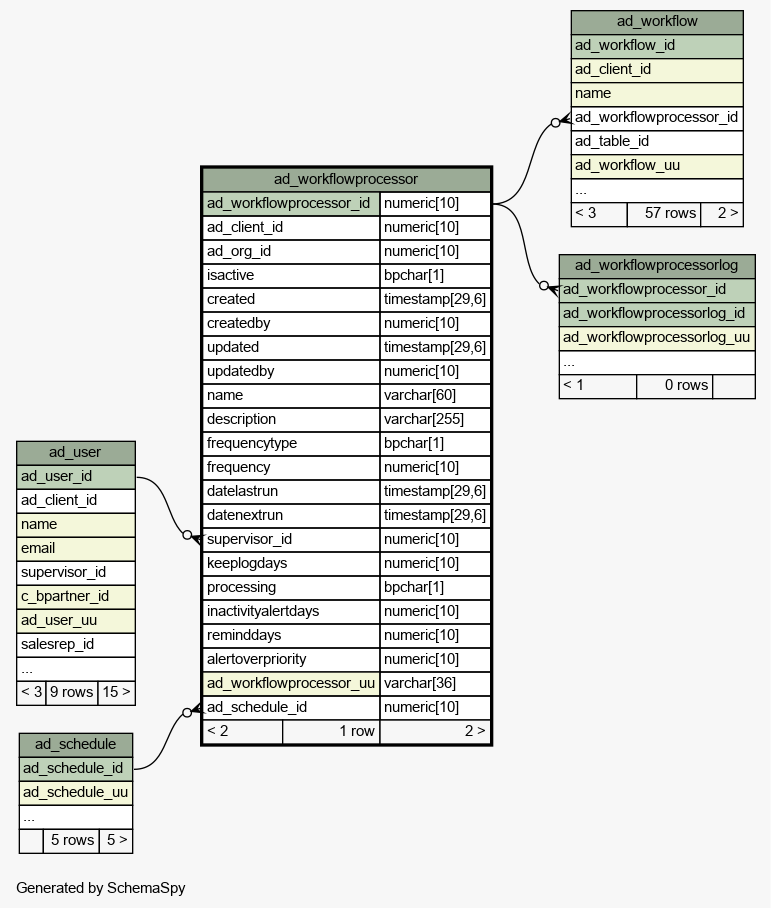

Close relationships  within of separation:
