Table idempiere11.adempiere.ad_broadcastmessage
Broadcast Messages for system users

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
broadcastfrequency varchar 60 NULL::character varying How Many Times Message Should be Broadcasted
broadcastmessage text 2147483647 Broadcast Message
broadcasttype varchar 32 NULL::character varying Type of Broadcast
expiration timestamp 29,6  √  null Expire On
logacknowledge bpchar 1  √  'N'::bpchar Want to Log the Acknowledgment of Message?
target varchar 60 NULL::character varying Target tenant
ad_role_id numeric 10  √  NULL::numeric
ad_role.ad_role_id adrole_adbroadcastmessage R
Responsibility Role
ad_user_id numeric 10  √  NULL::numeric
ad_user.ad_user_id aduser_adbroadcastmessage R
User within the system - Internal or Business Partner Contact
testmessage bpchar 1  √  NULL::bpchar Test broadcast message
publish bpchar 1  √  NULL::bpchar Publish Broadcast Message
expirenow bpchar 1  √  null Expire the broadcast message
ad_broadcastmessage_id numeric 10 NULL::numeric
ad_note.ad_broadcastmessage_id adbroadcastmessage_adnote R
Broadcast Message
ispublished bpchar 1  √  'N'::bpchar The Topic is published and can be viewed
processed bpchar 1  √  'N'::bpchar The document has been processed
expired bpchar 1  √  'N'::bpchar Expired
ad_broadcastmessage_uu varchar 36  √  NULL::character varying AD_BroadcastMessage_UU
notification_client_id numeric 10  √  null
ad_client.ad_client_id notificationclient_adbroadcast R
Notification Tenant
title varchar 60  √  NULL::character varying Name this entity is referred to as

Table contained 0 rows at 2024-01-03 13:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_broadcastmessage_id Primary key Asc ad_broadcastmessage_key
ad_broadcastmessage_uu Must be unique Asc ad_broadcastmessage_uu_idx

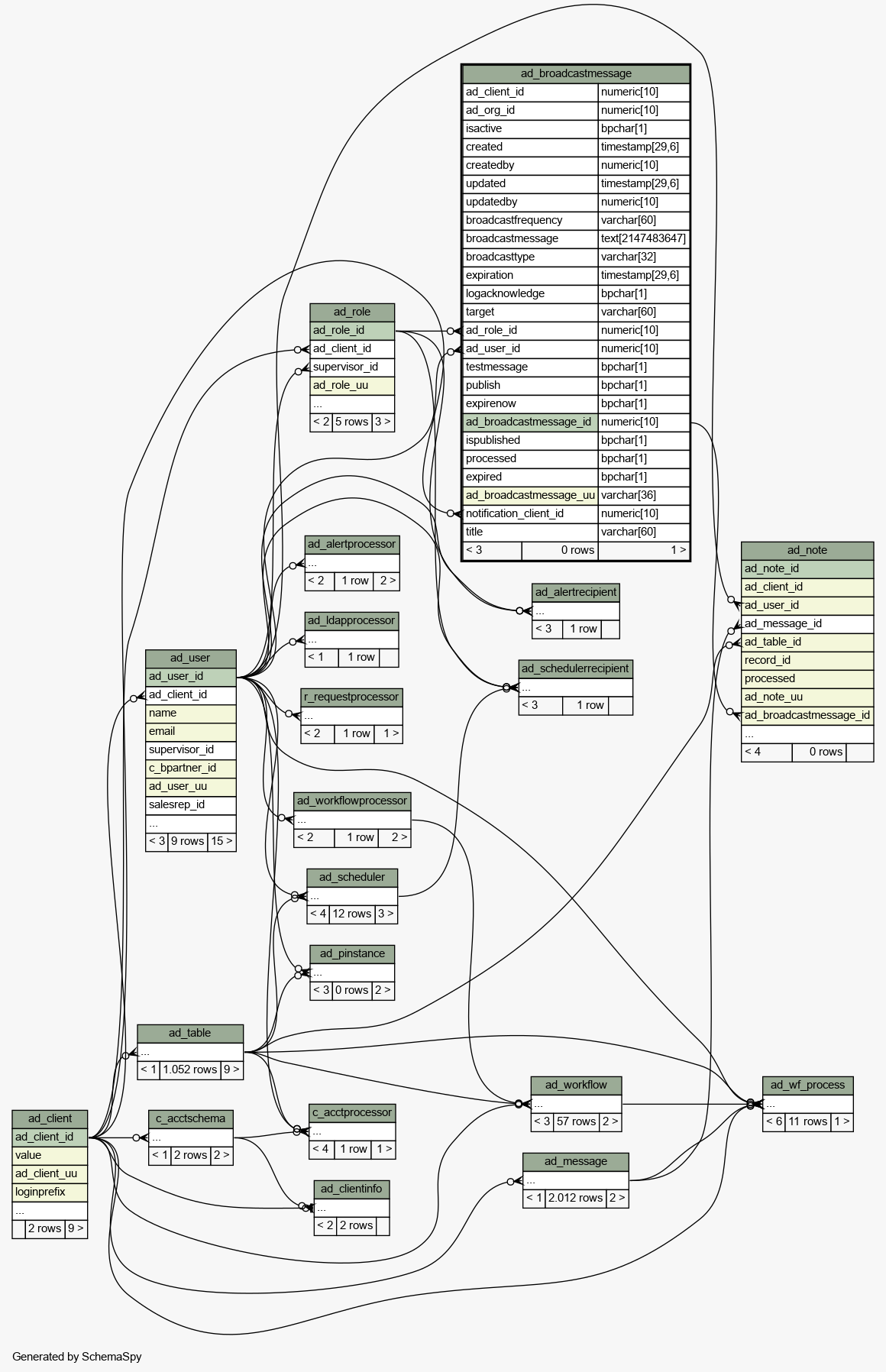

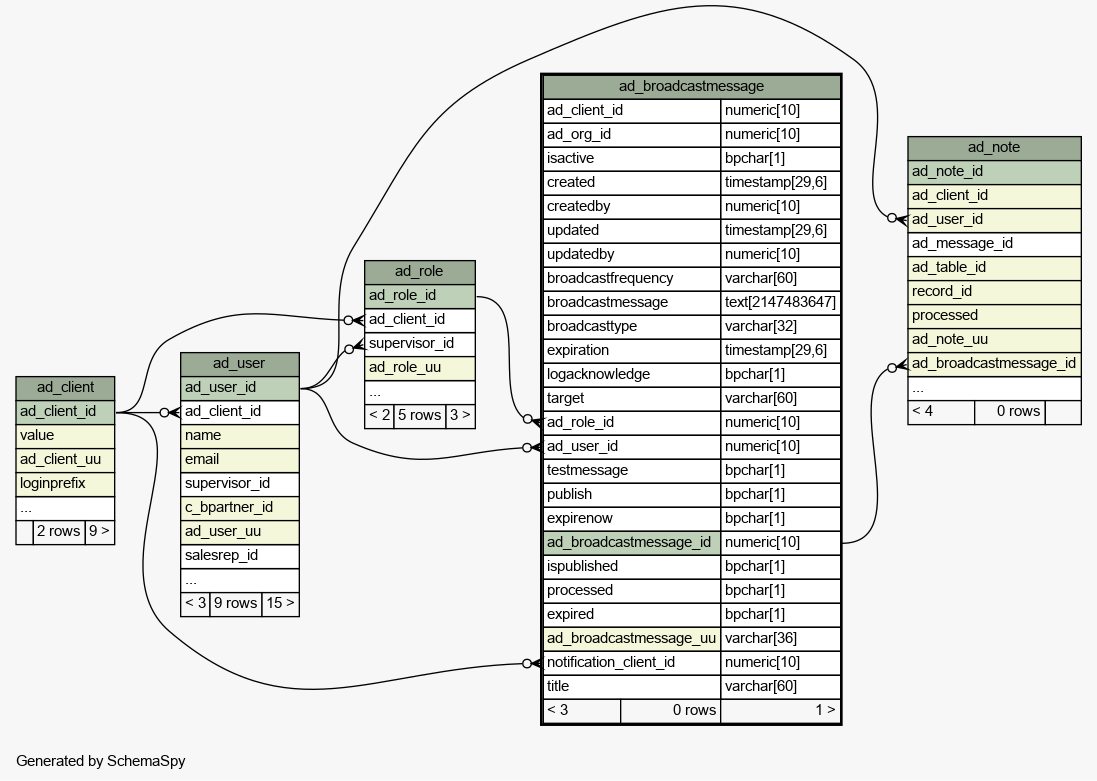

Close relationships  within of separation:
