Table idempiere11.adempiere.asp_level
ASP Level

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
asp_level_id numeric 10
asp_clientlevel.asp_level_id asplevel_aspclientlevel R
asp_form.asp_level_id asplevel_aspform R
asp_process.asp_level_id asplevel_aspprocess R
asp_ref_list.asp_level_id asplevel_aspreflist R
asp_task.asp_level_id asplevel_asptask R
asp_window.asp_level_id asplevel_aspwindow R
asp_workflow.asp_level_id asplevel_aspworkflow R
ASP Level
asp_module_id numeric 10
asp_module.asp_module_id aspmodule_asplevel R
ASP Module
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
isactive bpchar 1 'Y'::bpchar The record is active in the system
name varchar 60 Alphanumeric identifier of the entity
processing bpchar 1  √  null Process Now
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40 Search key for the record in the format required - must be unique
asp_level_uu varchar 36  √  NULL::character varying ASP_Level_UU

Table contained 0 rows at 2024-01-03 13:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
asp_level_id Primary key Asc asp_level_key
asp_level_uu Must be unique Asc asp_level_uu_idx

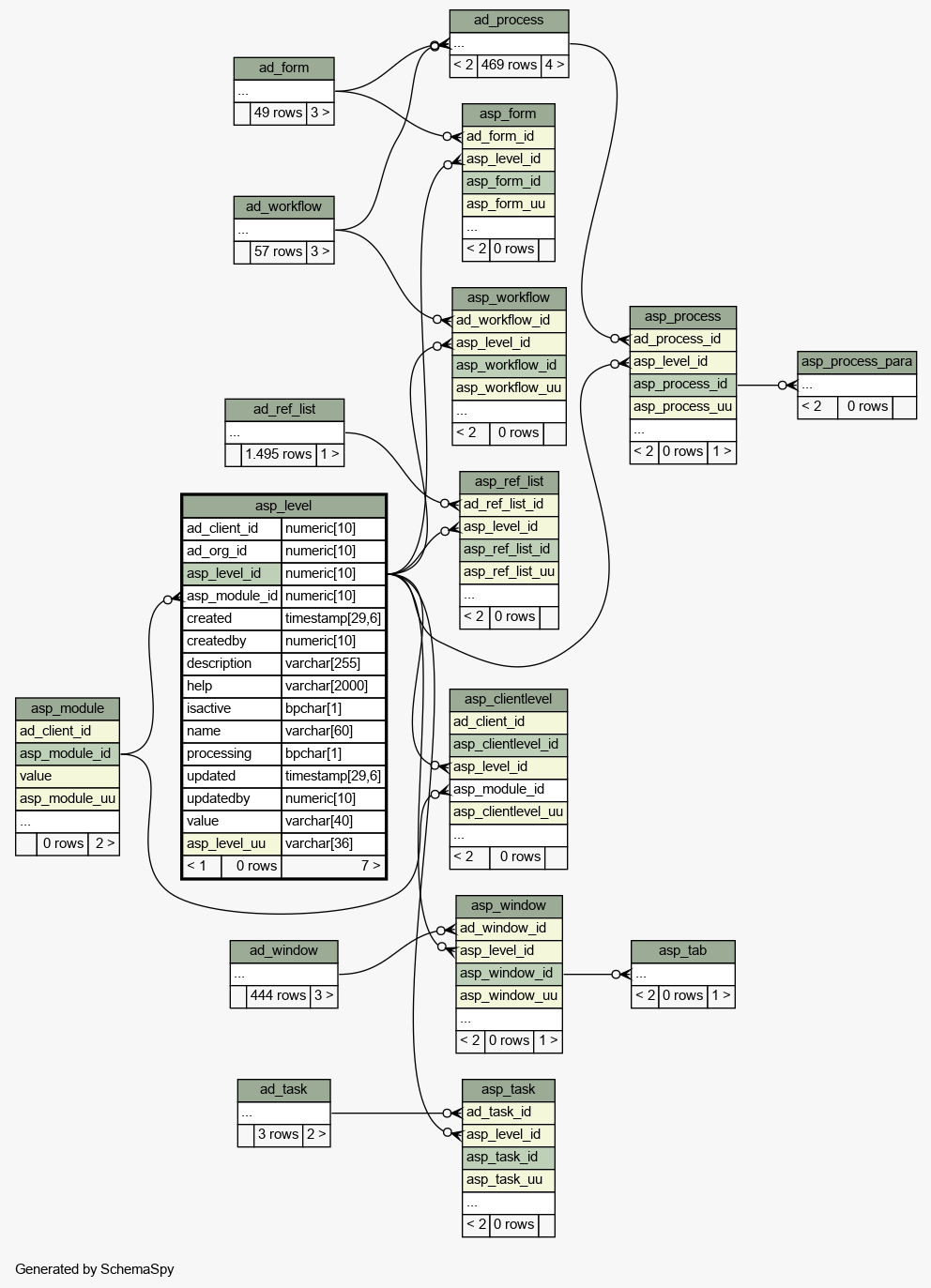

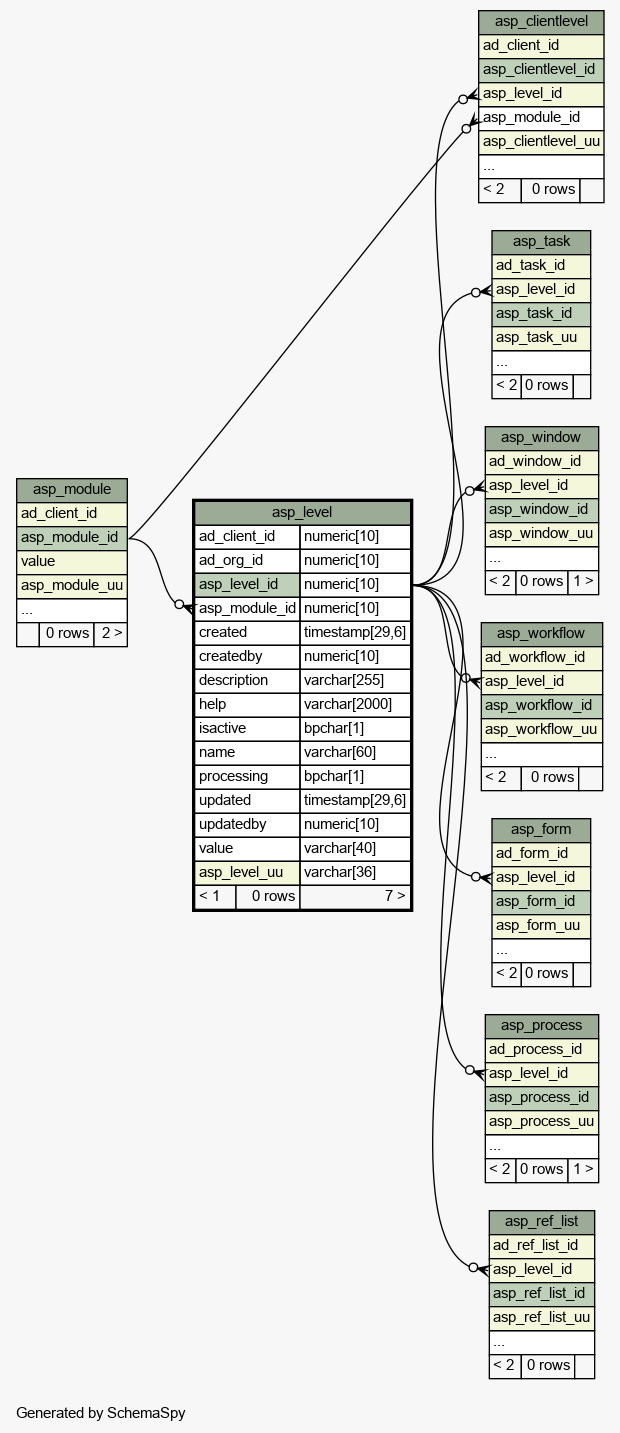

Close relationships  within of separation:
