Table idempiere11.adempiere.asp_clientexception
Tenant Exception

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_field_id numeric 10  √  null
ad_field.ad_field_id adfield_aspclientexception R
Field on a database table
ad_form_id numeric 10  √  null
ad_form.ad_form_id adform_aspclientexception R
Special Form
ad_org_id numeric 10 0 Organizational entity within tenant
ad_process_id numeric 10  √  null
ad_process.ad_process_id adprocess_aspclientexception R
Process or Report
ad_process_para_id numeric 10  √  null
ad_process_para.ad_process_para_id adprocesspara_aspclientexcepti R
Process Parameter
ad_tab_id numeric 10  √  null
ad_tab.ad_tab_id adtab_aspclientexception R
Tab within a Window
ad_task_id numeric 10  √  null
ad_task.ad_task_id adtask_aspclientexception R
Operation System Task
ad_wf_node_id numeric 10  √  null Workflow Node (activity), step or process
ad_window_id numeric 10  √  null
ad_window.ad_window_id adwindow_aspclientexception R
Data entry or display window
ad_workflow_id numeric 10  √  null
ad_workflow.ad_workflow_id adworkflow_aspclientexception R
Workflow or combination of tasks
asp_clientexception_id numeric 10 Tenant Exception
asp_status bpchar 1 'U'::bpchar ASP Status
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
isactive bpchar 1 'Y'::bpchar The record is active in the system
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
asp_clientexception_uu varchar 36  √  NULL::character varying ASP_ClientException_UU

Table contained 0 rows at 2024-01-03 13:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
asp_clientexception_id Primary key Asc asp_clientexception_key
ad_client_id Must be unique Asc asp_clientexception_unq
asp_clientexception_uu Must be unique Asc asp_clientexception_uu_idx

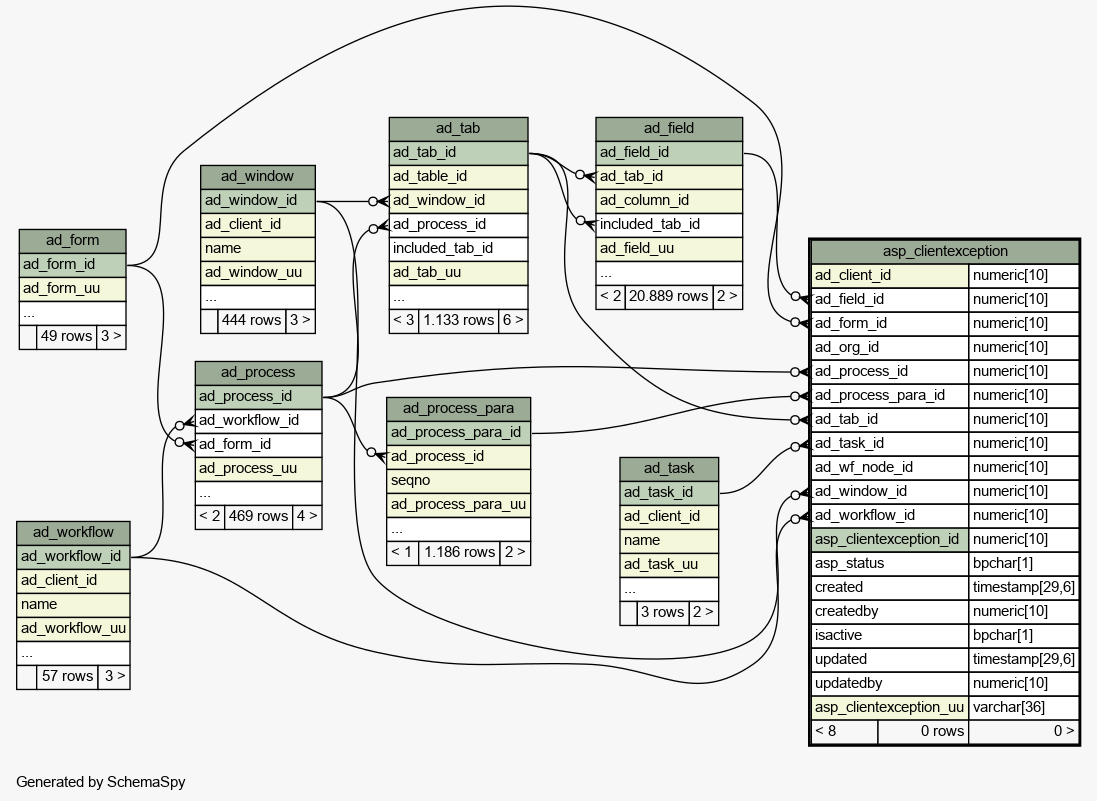

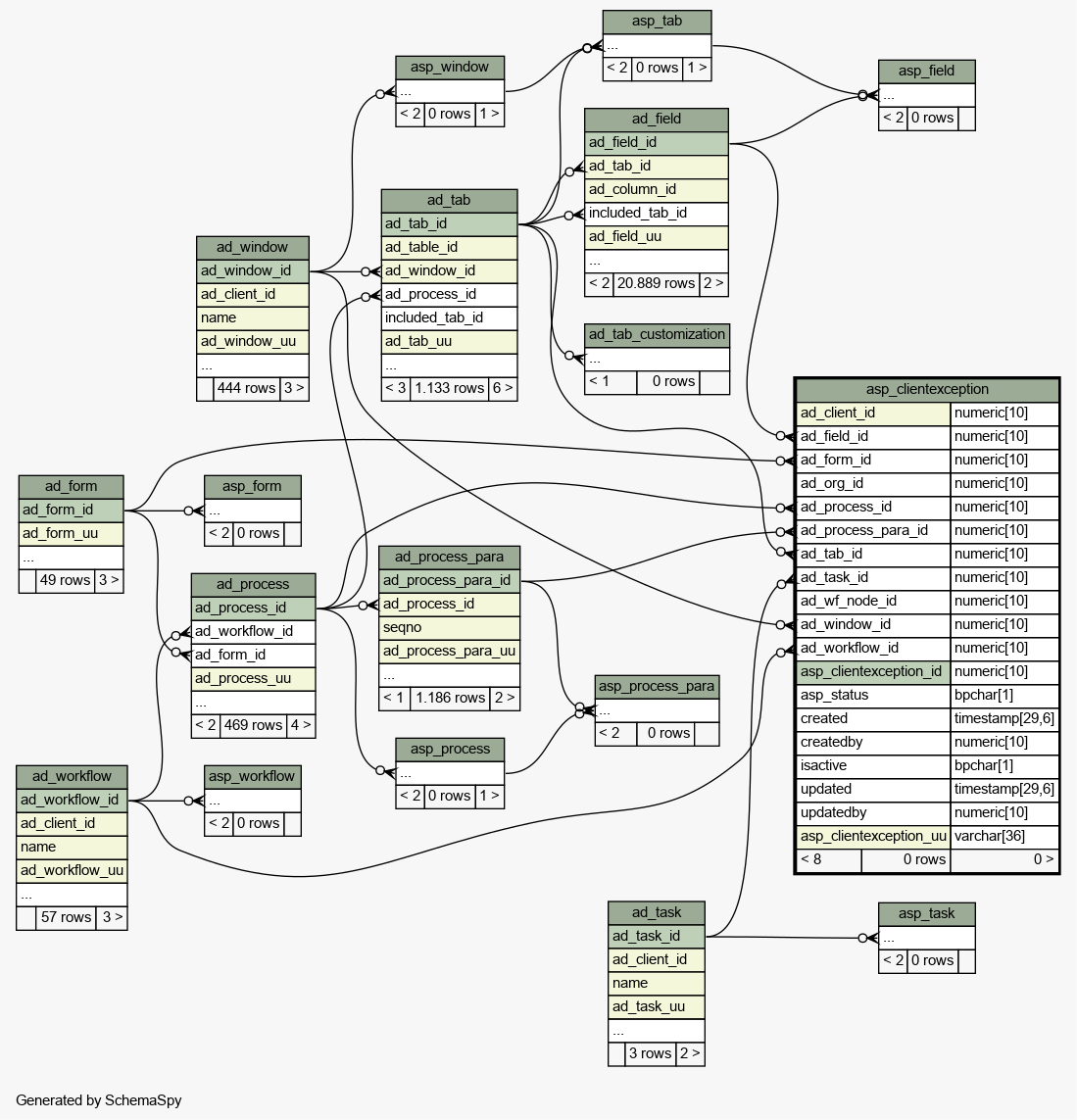

Close relationships  within of separation:
