Table idempiere11.adempiere.c_orgassignment
Assigment to (transaction) Organization

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
c_orgassignment_id numeric 10 Assignment to (transaction) Organization
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10
ad_org.ad_org_id adorg_corgassignment R
Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_user_id numeric 10
ad_user.ad_user_id aduser_corgassignment R
User within the system - Internal or Business Partner Contact
validfrom timestamp 29,6 Valid from including this date (first day)
validto timestamp 29,6 Valid to including this date (last day)
description varchar 255  √  null Optional short description of the record
c_orgassignment_uu varchar 36  √  NULL::character varying C_OrgAssignment_UU

Table contained 0 rows at 2024-01-03 13:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_orgassignment_id Primary key Asc c_orgassignment_pkey
c_orgassignment_uu Must be unique Asc c_orgassignment_uu_idx

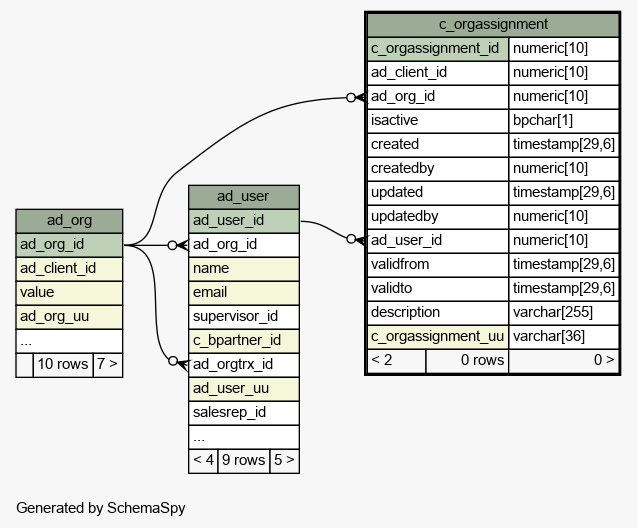

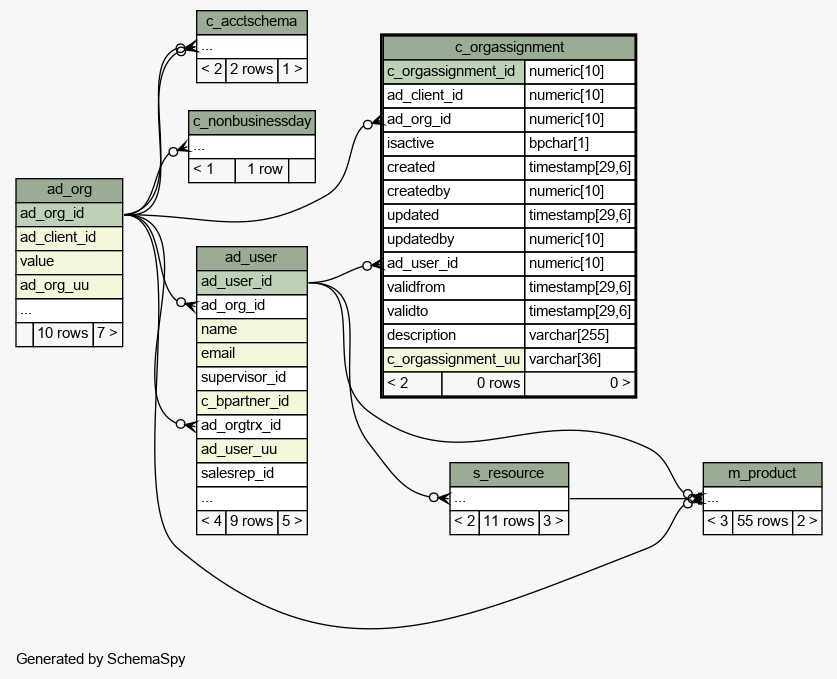

Close relationships  within of separation:
