Table idempiere11.adempiere.ad_viewcolumn
Database View Column

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
ad_viewcolumn_id numeric 10 Database View Column
ad_viewcolumn_uu varchar 36  √  NULL::character varying AD_ViewColumn_UU
ad_viewcomponent_id numeric 10
ad_viewcomponent.ad_viewcomponent_id adviewcomponent_adviewcolumn R
Database View Component
columnname varchar 30 NULL::character varying Name of the column in the database
columnsql varchar 2000  √  null Virtual Column (r/o)
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
dbdatatype bpchar 1  √  NULL::bpchar Database Data Type
description varchar 255  √  NULL::character varying Optional short description of the record
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
help varchar 2000  √  NULL::character varying Comment or Hint
isactive bpchar 1 The record is active in the system
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
seqno numeric 10  √  NULL::numeric Method of ordering records; lowest number comes first

Table contained 17.632 rows at 2024-01-03 13:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_viewcolumn_id Primary key Asc ad_viewcolumn_key
ad_viewcolumn_uu Must be unique Asc ad_viewcolumn_uu_idx

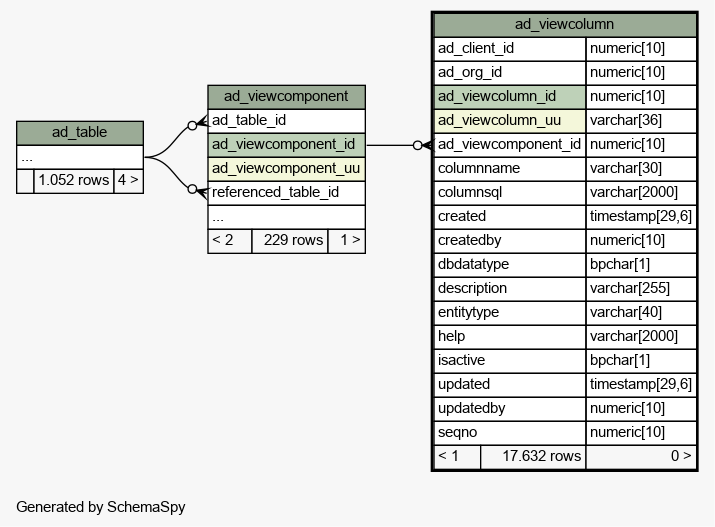

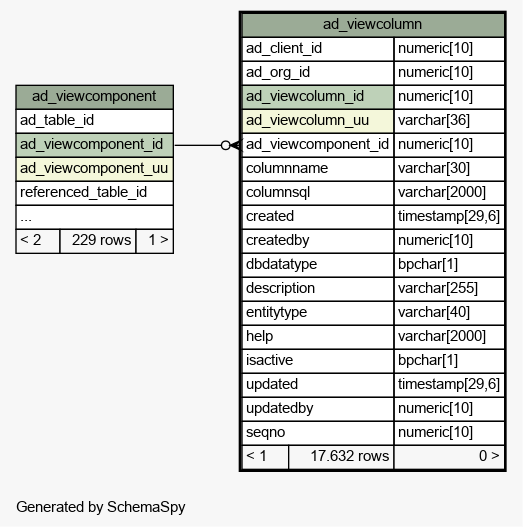

Close relationships  within of separation:
