Table idempiere11.adempiere.ad_reference
System Reference (Pick List)

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_reference_id numeric 10
a_registrationattribute.ad_reference_id adreference_aregattribute R
a_registrationattribute.ad_reference_value_id adreferencevalue_aregattribute R
ad_process_para.ad_reference_id adreference_adprocesspara R
ad_process_para.ad_reference_value_id adreferencevalue_adprocpara R
System Reference and Validation
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
validationtype bpchar 1 Different method of validating data
vformat varchar 40  √  null Format of the value; Can contain fixed format elements, Variables: "_lLoOaAcCa09"
entitytype varchar 40 'D'::character varying
ad_entitytype.entitytype entityt_adreference R
Dictionary Entity Type; Determines ownership and synchronization
isorderbyvalue bpchar 1  √  'N'::bpchar Order list using the value column instead of the name column
ad_reference_uu varchar 36  √  NULL::character varying AD_Reference_UU
ad_element_id numeric 10  √  NULL::numeric System Element enables the central maintenance of column description and help.
showinactive varchar 4 'N'::character varying Show Inactive Records

Table contained 582 rows at 2024-01-03 13:54 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_reference_id Primary key Asc ad_reference_pkey
name Must be unique Asc ad_reference_name
ad_reference_uu Must be unique Asc ad_reference_uu_idx

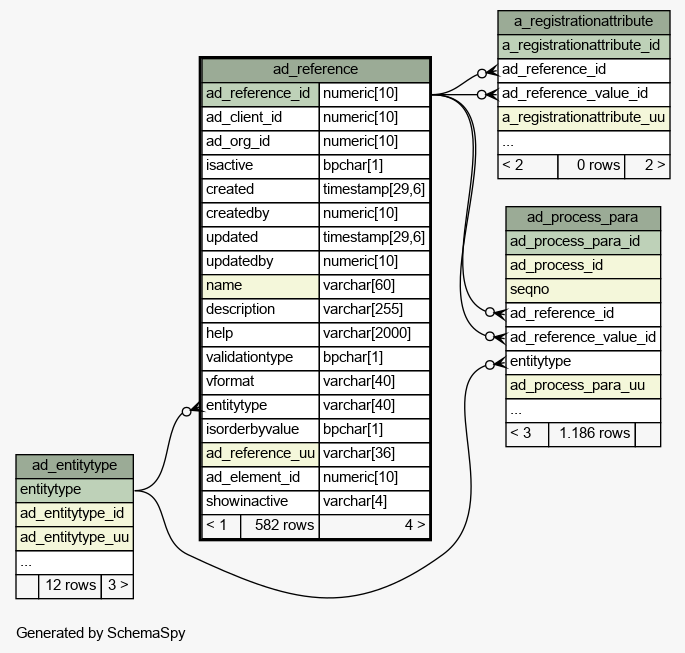

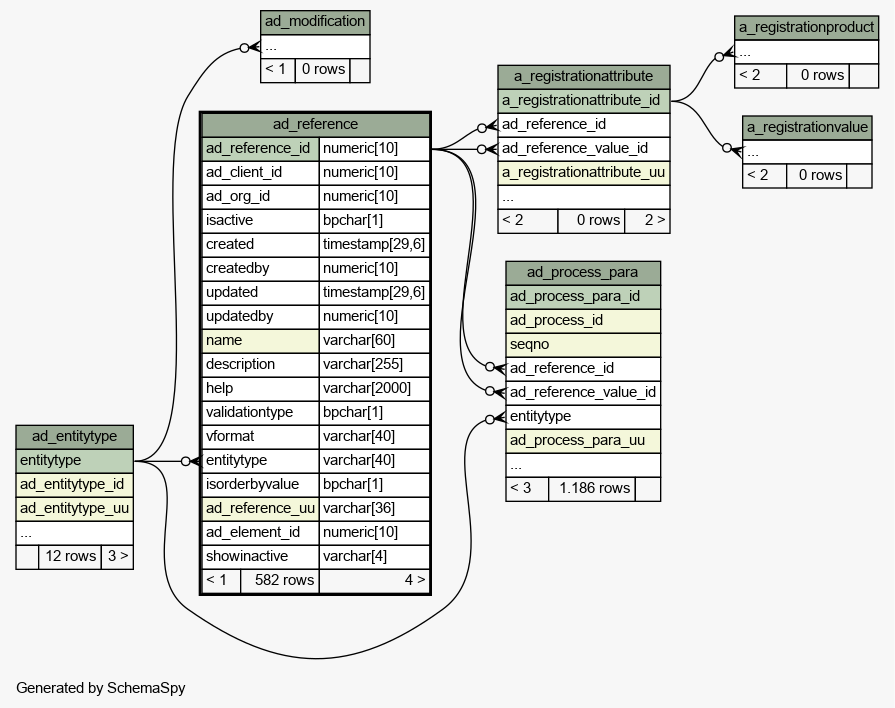

Close relationships  within of separation:
