Table idempiere11.adempiere.c_cycle
Identifier for this Project Reporting Cycle

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
c_cycle_id numeric 10
c_cyclestep.c_cycle_id ccycle_ccyclestep C
Identifier for this Project Reporting Cycle
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
c_currency_id numeric 10 The Currency for this record
c_cycle_uu varchar 36  √  NULL::character varying C_Cycle_UU

Table contained 2 rows at 2024-01-03 13:54 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_cycle_id Primary key Asc c_cycle_pkey
ad_client_id + name Must be unique Asc/Asc c_cycle_name
c_cycle_uu Must be unique Asc c_cycle_uu_idx

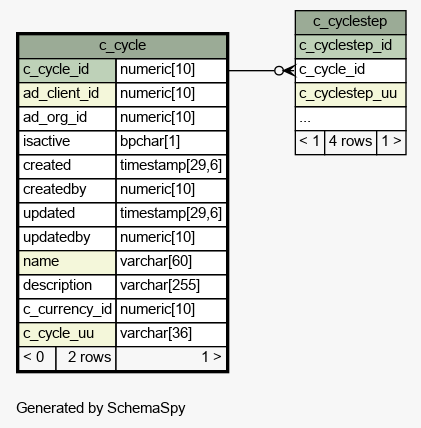

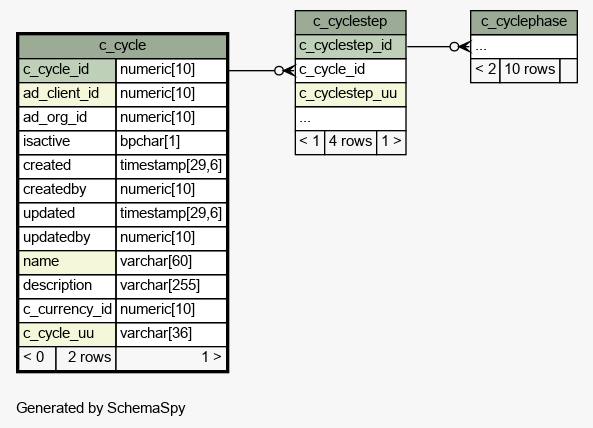

Close relationships  within of separation:
