Table idempiere11.adempiere.ad_printlabel
Label Format to print

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_printlabel_id numeric 10
ad_printlabelline.ad_printlabel_id adprintlabel_adprintlabelline R
Label Format to print
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
ad_table_id numeric 10
ad_table.ad_table_id adtable_adprintlabel R
Database Table information
printername varchar 40  √  null Name of the Printer
islandscape bpchar 1 'Y'::bpchar Landscape orientation
labelheight numeric 10 Height of the label
labelwidth numeric 10 Width of the Label
ad_labelprinter_id numeric 10
ad_labelprinter.ad_labelprinter_id adlabelprinter_printlabel R
Label Printer Definition
ad_printlabel_uu varchar 36  √  NULL::character varying AD_PrintLabel_UU

Table contained 0 rows at 2024-01-03 13:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_printlabel_id Primary key Asc ad_printlabel_pkey
ad_printlabel_uu Must be unique Asc ad_printlabel_uu_idx

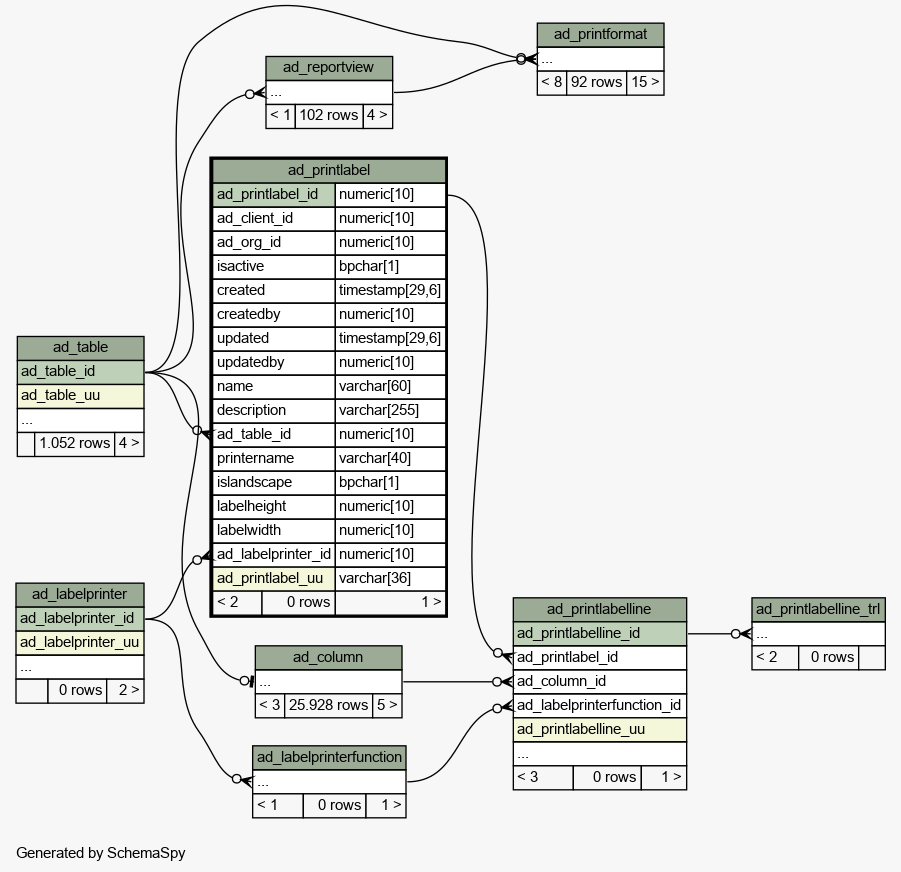

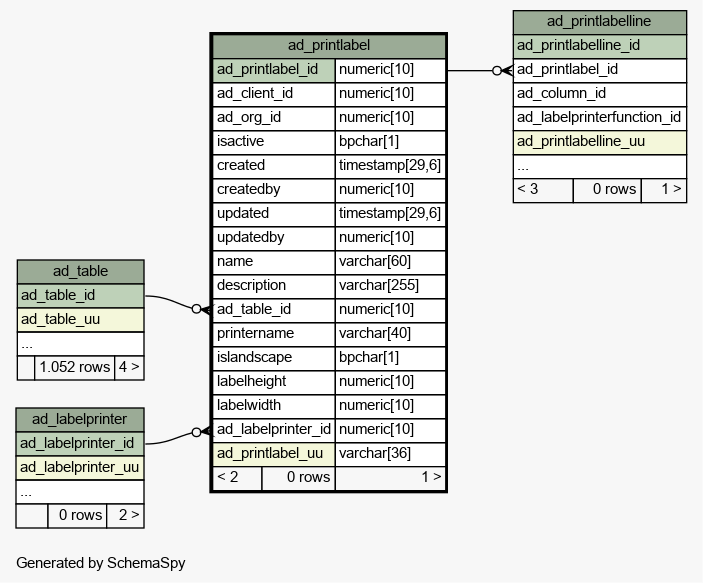

Close relationships  within of separation:
