Table idempiere11.adempiere.pa_dashboardcontent
Dashboard Content

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pa_dashboardcontent_id numeric 10
pa_dashboardcontent_access.pa_dashboardcontent_id padashboardcontacc_padashboard R
pa_dashboardpreference.pa_dashboardcontent_id padashboardcontent_padashpref R
Dashboard Content
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
isactive bpchar 1 The record is active in the system
name varchar 120 Alphanumeric identifier of the entity
ad_window_id numeric 10  √  null Data entry or display window
description varchar 255  √  null Optional short description of the record
html text 2147483647  √  null HTML
line numeric 0  √  null Unique line for this document
pa_goal_id numeric 10  √  null
pa_goal.pa_goal_id pagoal_padashboardcontent R
Performance Goal
columnno numeric 10  √  (1)::numeric Dashboard content column number
zulfilepath varchar 255  √  null URI for Dashboard Gadget
iscollapsible bpchar 1 'Y'::bpchar Flag to indicate the state of the dashboard panel
goaldisplay bpchar 1  √  'T'::bpchar Type of goal display on dashboard
pa_dashboardcontent_uu varchar 36  √  NULL::character varying PA_DashboardContent_UU
isshowindashboard bpchar 1 'Y'::bpchar Show the dashlet in the dashboard
ad_process_id numeric 10  √  NULL::numeric Process or Report
isembedreportcontent bpchar 1 'N'::bpchar Embed report content into dashboard
processparameters varchar 2000  √  NULL::character varying Comma separated process parameter list
iscollapsedbydefault bpchar 1 'N'::bpchar Flag to set the initial state of collapsible field group.
ad_user_id numeric 10  √  0
ad_user.ad_user_id aduser_padashboardcontent R
User within the system - Internal or Business Partner Contact
ad_role_id numeric 10  √  0
ad_role.ad_role_id adrole_padashboardcontent R
Responsibility Role
isshowinlogin bpchar 1  √  'Y'::bpchar Show on Login
ad_chart_id numeric 10  √  NULL::numeric
ad_chart.ad_chart_id adchart_padashboardcontent R
Chart
isshowtitle bpchar 1 'Y'::bpchar Show Title
ad_statusline_id numeric 10  √  NULL::numeric Status Line
ismaximizable bpchar 1 'Y'::bpchar Maximizable
ad_printformat_id numeric 10  √  NULL::numeric Data Print Format

Table contained 10 rows at 2024-01-03 13:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
pa_dashboardcontent_id Primary key Asc pa_dashboardcontent_key
pa_dashboardcontent_uu Must be unique Asc pa_dashboardcontent_uu_idx

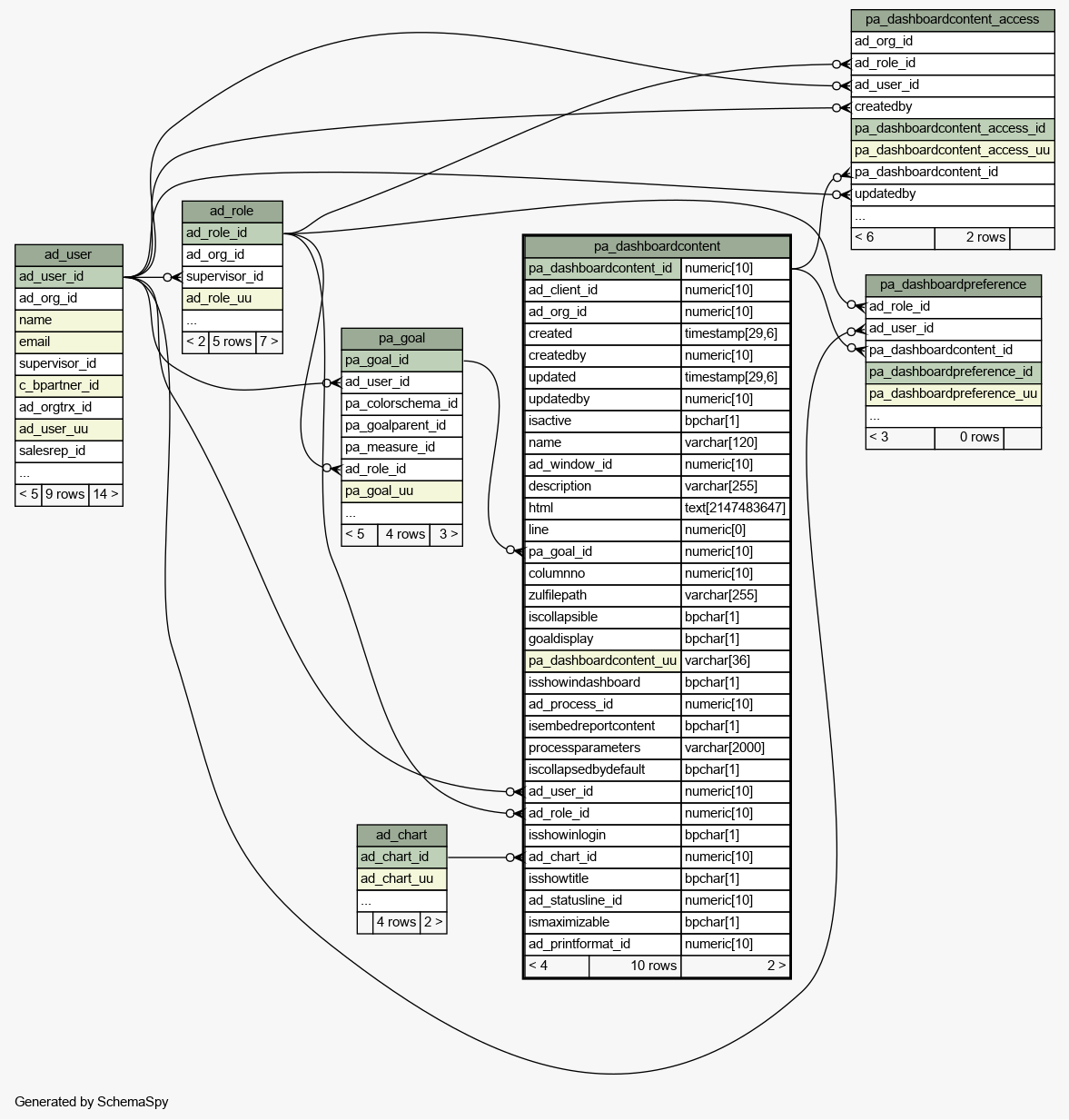

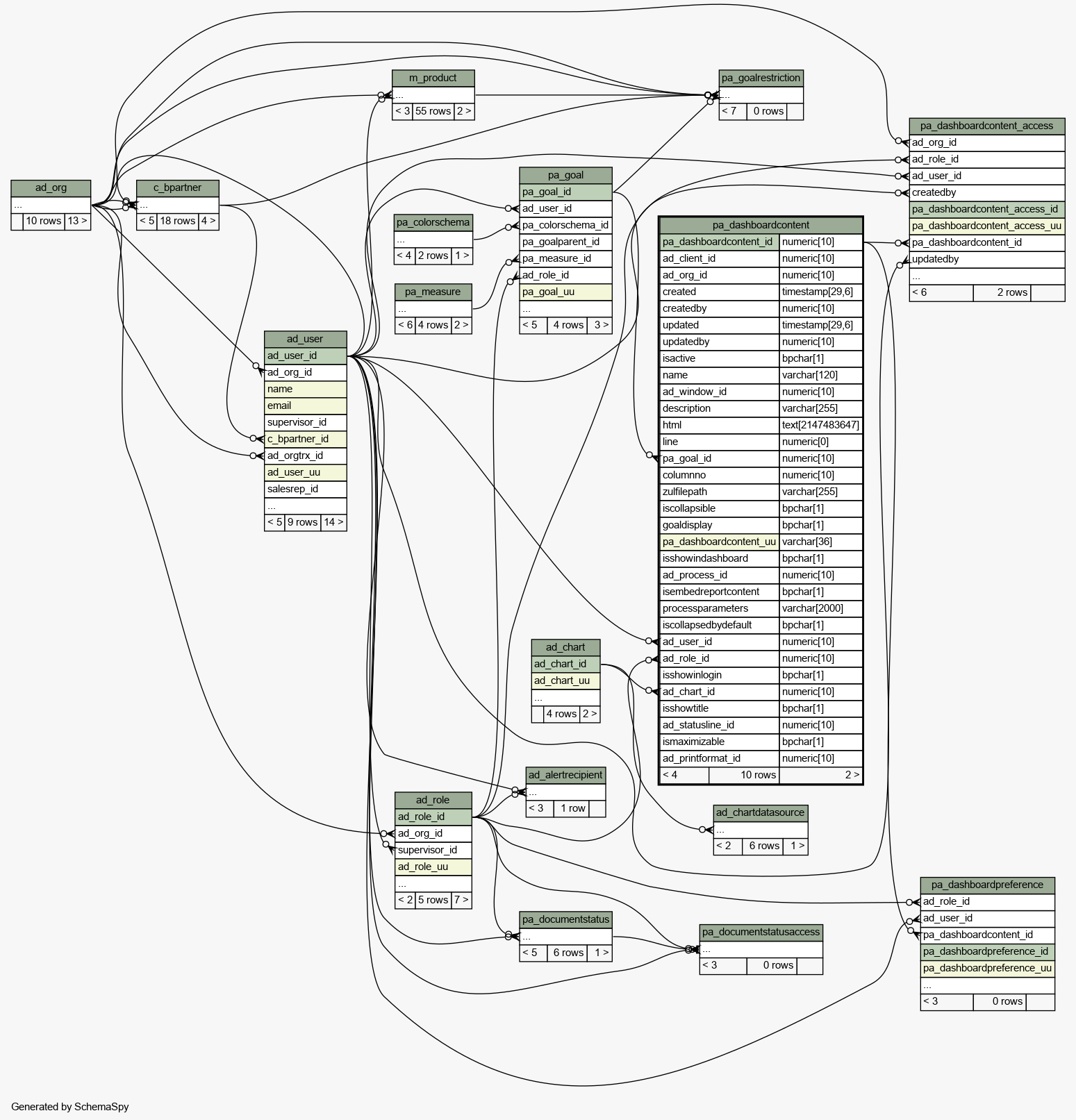

Close relationships  within of separation:
