Table idempiere11.adempiere.pa_colorschema
Performance Color Schema

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pa_colorschema_id numeric 10
pa_goal.pa_colorschema_id pacolorschema_pagoal R
Performance Color Schema
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
mark1percent numeric 10 0 Percentage up to this color is used
ad_printcolor1_id numeric 10
ad_printcolor.ad_printcolor_id adprintcolor1_pacolorschema R
First color used
mark2percent numeric 10 0 Percentage up to this color is used
ad_printcolor2_id numeric 10
ad_printcolor.ad_printcolor_id adprintcolor2_pacolorschema R
Second color used
mark3percent numeric 10  √  0 Percentage up to this color is used
ad_printcolor3_id numeric 10  √  null
ad_printcolor.ad_printcolor_id adprintcolor3_pacolorschema R
Third color used
mark4percent numeric 10  √  0 Percentage up to this color is used
ad_printcolor4_id numeric 10  √  null
ad_printcolor.ad_printcolor_id adprintcolor4_pacolorschema R
Forth color used
entitytype varchar 40 Dictionary Entity Type; Determines ownership and synchronization
pa_colorschema_uu varchar 36  √  NULL::character varying PA_ColorSchema_UU

Table contained 2 rows at 2024-01-03 13:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
pa_colorschema_id Primary key Asc pa_colorschema_pkey
pa_colorschema_uu Must be unique Asc pa_colorschema_uu_idx

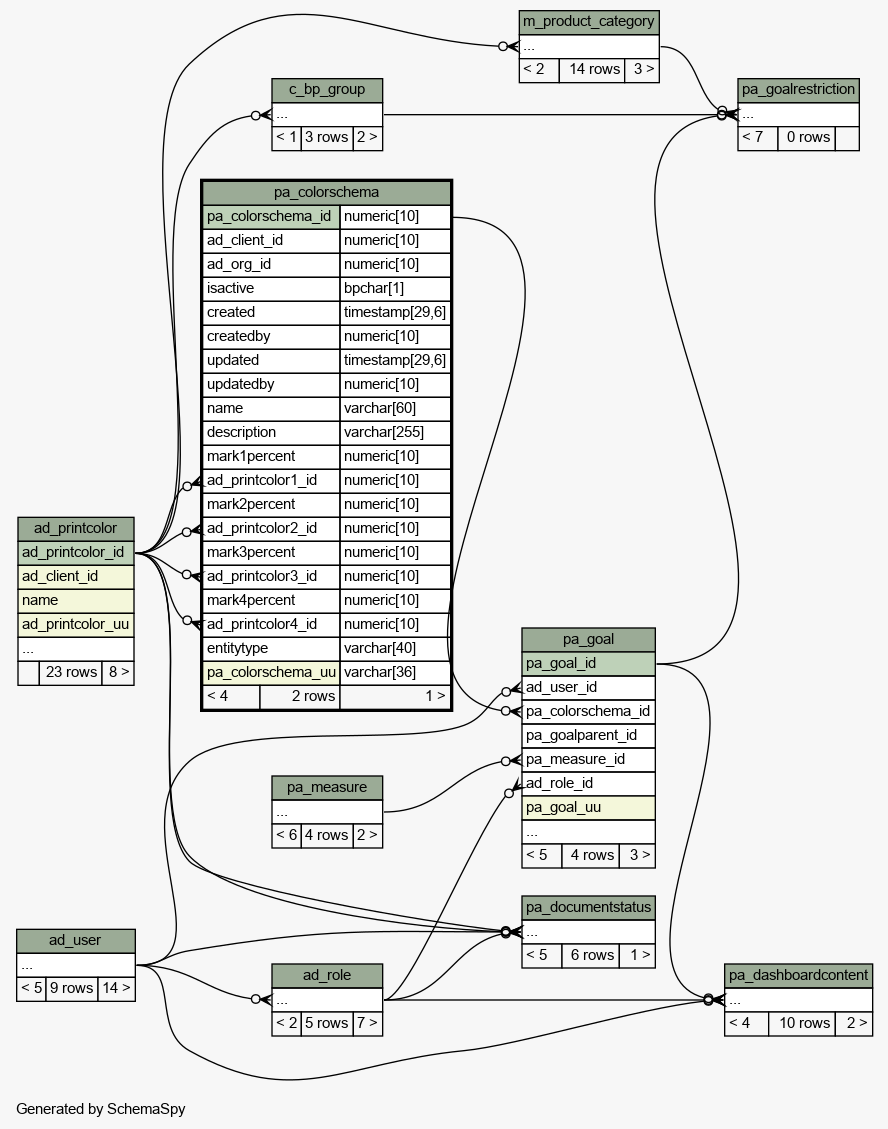

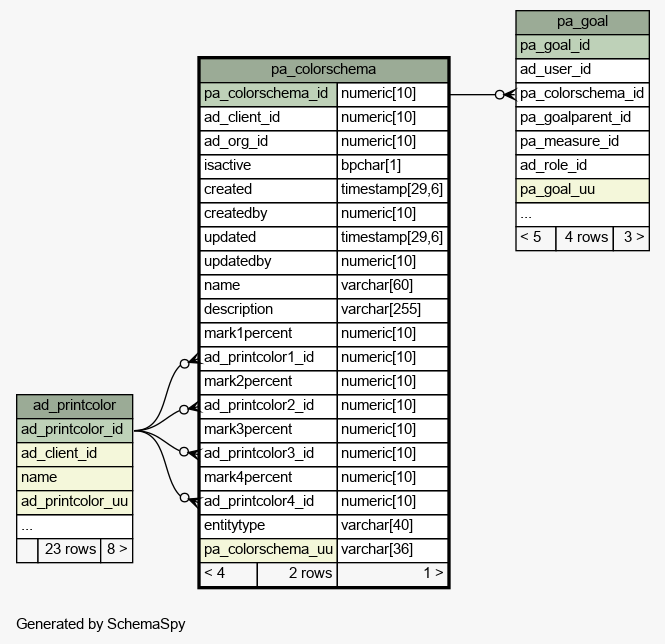

Close relationships  within of separation:
