Table idempiere11.adempiere.pa_achievement
Performance Achievement

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pa_achievement_id numeric 10 Performance Achievement
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
note varchar 2000  √  null Optional additional user defined information
seqno numeric 10 0 Method of ordering records; lowest number comes first
pa_measure_id numeric 10
pa_measure.pa_measure_id pameasure_paachievement R
Concrete Performance Measurement
manualactual numeric 0 0 Manually entered actual value
isachieved bpchar 1 The goal is achieved
datedoc timestamp 29,6  √  null Date of the Document
pa_achievement_uu varchar 36  √  NULL::character varying PA_Achievement_UU

Table contained 0 rows at 2024-01-03 13:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
pa_achievement_id Primary key Asc pa_achievement_pkey
pa_achievement_uu Must be unique Asc pa_achievement_uu_idx

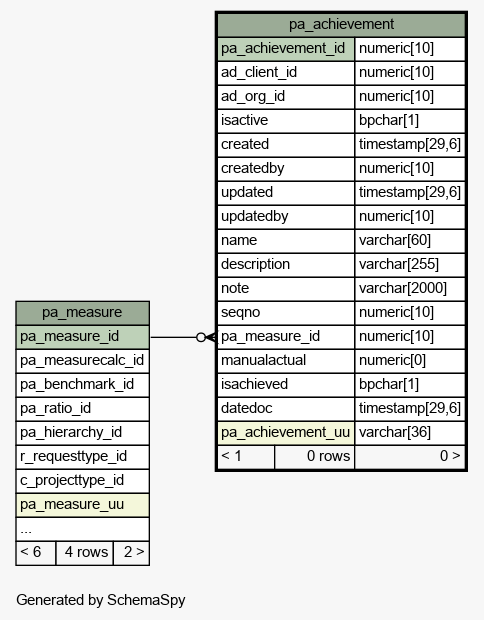

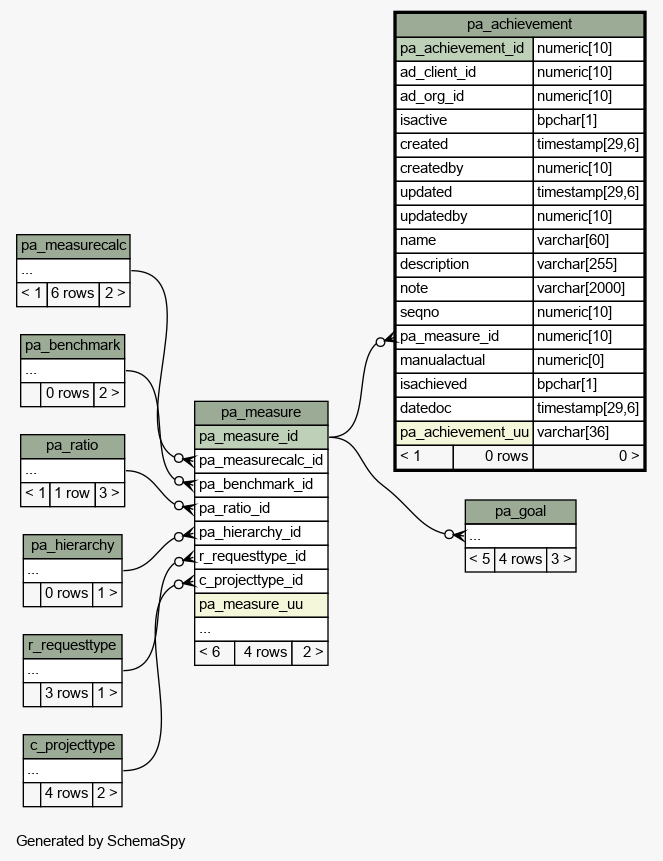

Close relationships  within of separation:
