Table idempiere11.adempiere.c_phase
Standard Phase of the Project Type

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
seqno numeric 10 Method of ordering records; lowest number comes first
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
c_projecttype_id numeric 10
c_projecttype.c_projecttype_id cprojecttype_cphase C
Type of the project
standardqty numeric 0 0 Standard Quantity
c_phase_id numeric 10 Standard Phase of the Project Type
m_product_id numeric 10  √  null
m_product.m_product_id mproduct_cphase R
Product, Service, Item
c_phase_uu varchar 36  √  NULL::character varying C_Phase_UU

Table contained 13 rows at 2024-01-03 13:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_phase_id Primary key Asc c_phase_pkey
c_phase_uu Must be unique Asc c_phase_uu_idx

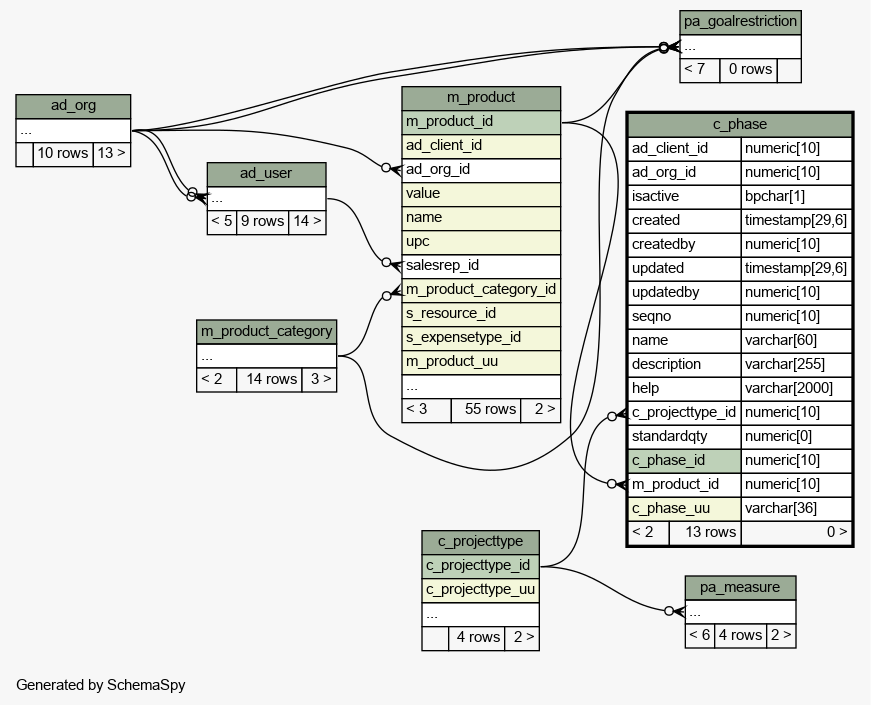

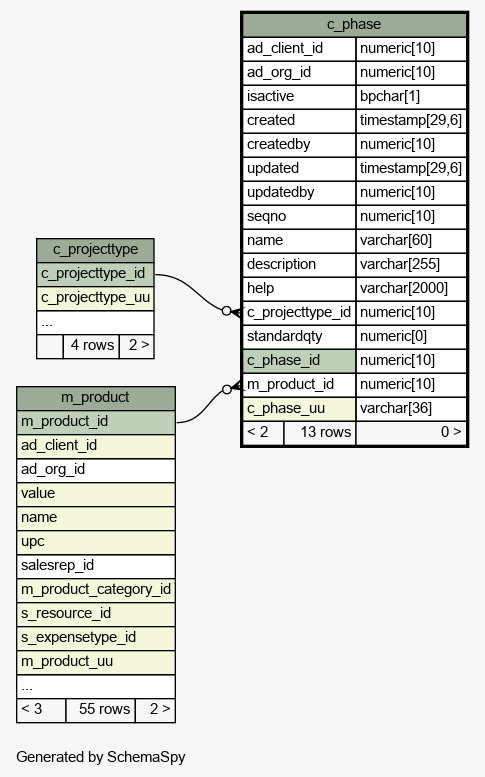

Close relationships  within of separation:
