Table idempiere11.adempiere.c_poskeylayout
POS Function Key Layout

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
c_poskeylayout_id numeric 10
c_pos.c_poskeylayout_id cposkeylayout_cpos R
c_pos.osk_keylayout_id oskkeylayout_cpos R
c_pos.osnp_keylayout_id osnpkeylayout_cpos R
c_poskey.c_poskeylayout_id cposkeylayout_c_poskey C
c_poskey.subkeylayout_id subkeylayout_cposkey R
POS Function Key Layout
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
c_poskeylayout_uu varchar 36  √  NULL::character varying C_POSKeyLayout_UU
columns numeric 10  √  NULL::numeric Number of columns
poskeylayouttype bpchar 1  √  NULL::bpchar The type of Key Layout
ad_printcolor_id numeric 10  √  NULL::numeric
ad_printcolor.ad_printcolor_id adprintcolor_cposkeylayout R
Color used for printing and display
ad_printfont_id numeric 10  √  NULL::numeric Maintain Print Font

Table contained 5 rows at 2024-01-03 13:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_poskeylayout_id Primary key Asc c_poskeylayout_pkey
c_poskeylayout_uu Must be unique Asc c_poskeylayout_uu_idx

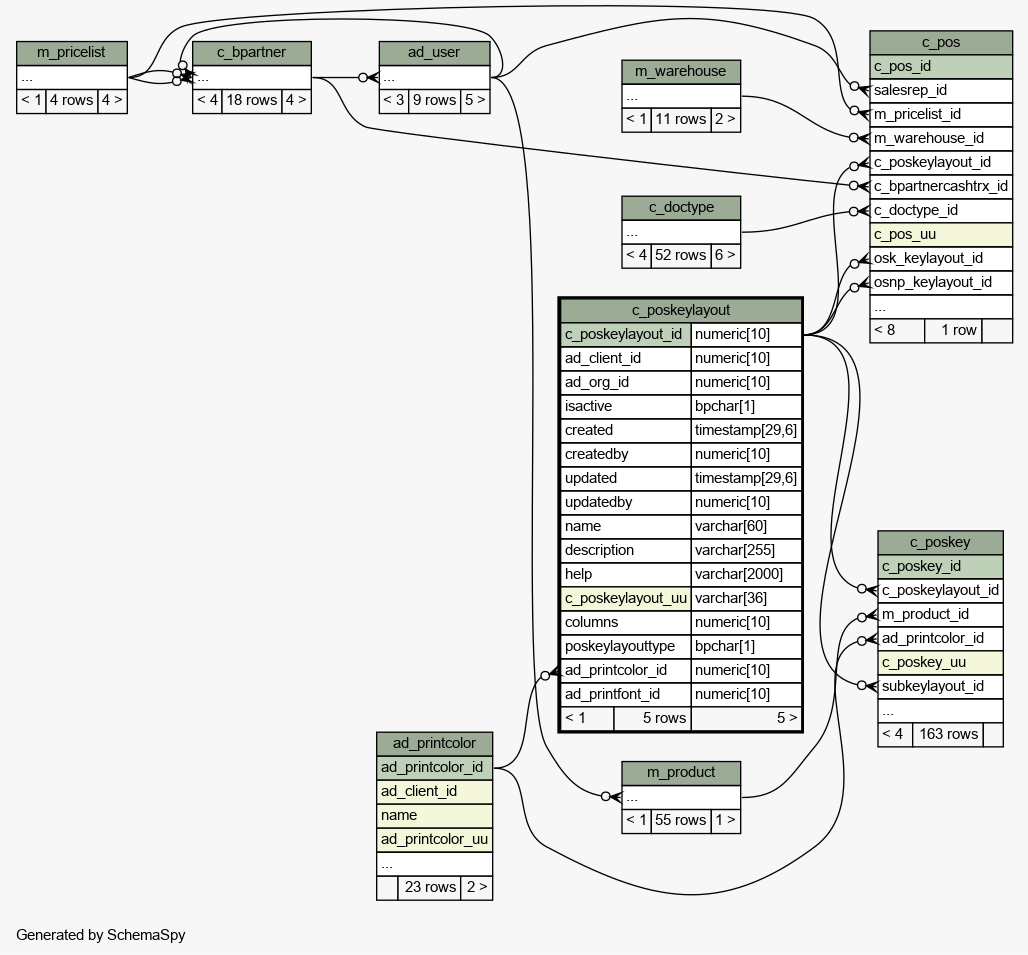

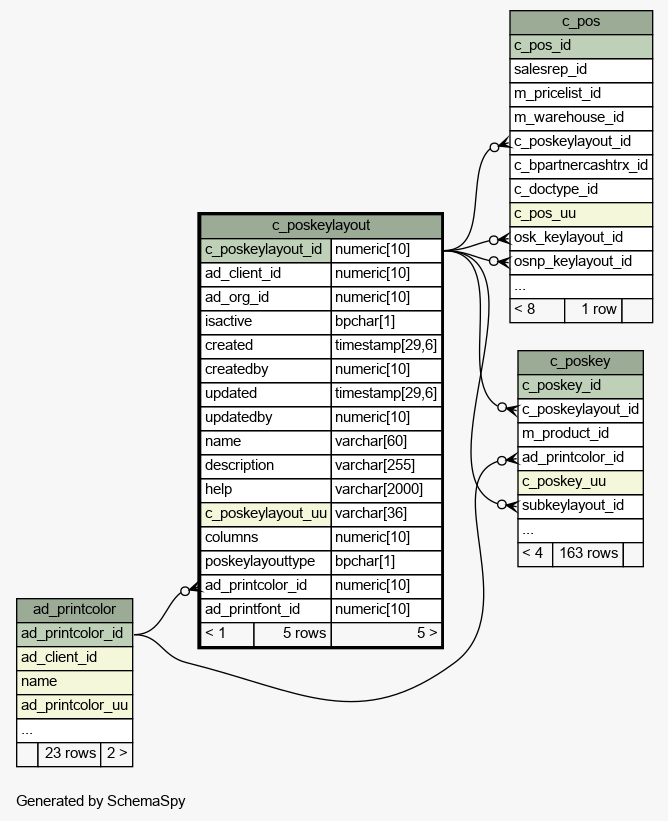

Close relationships  within of separation:
