Table idempiere11.adempiere.m_shippingtransactionline
Shipping Transaction Line

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
c_uom_length_id numeric 10  √  NULL::numeric Standard Unit of Measure for Length
c_uom_weight_id numeric 10  √  NULL::numeric Standard Unit of Measure for Weight
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
height numeric 0  √  null Height
isactive bpchar 1 'Y'::bpchar The record is active in the system
length numeric 0  √  null Length
m_shippingtransaction_id numeric 10
m_shippingtransaction.m_shippingtransaction_id mshippingtransaction_mshipping R
Shipping Transaction
m_shippingtransactionline_id numeric 10 Shipping Transaction Line
m_shippingtransactionline_uu varchar 36  √  NULL::character varying M_ShippingTransactionLine_UU
mastertrackingno varchar 255  √  NULL::character varying Master Tracking No
price numeric 0  √  null Price
processed bpchar 1 'N'::bpchar The document has been processed
seqno numeric 10  √  NULL::numeric Method of ordering records; lowest number comes first
trackingno varchar 255  √  NULL::character varying Number to track the shipment
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
weight numeric 0  √  null Weight of a product
width numeric 0  √  null Width
m_packagemps_id numeric 10  √  NULL::numeric Package MPS

Table contained 0 rows at 2024-01-03 13:52 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_shippingtransactionline_id Primary key Asc m_shippingtransactionline_key
m_shippingtransactionline_uu Must be unique Asc m_shippingtransactionli_uu_idx

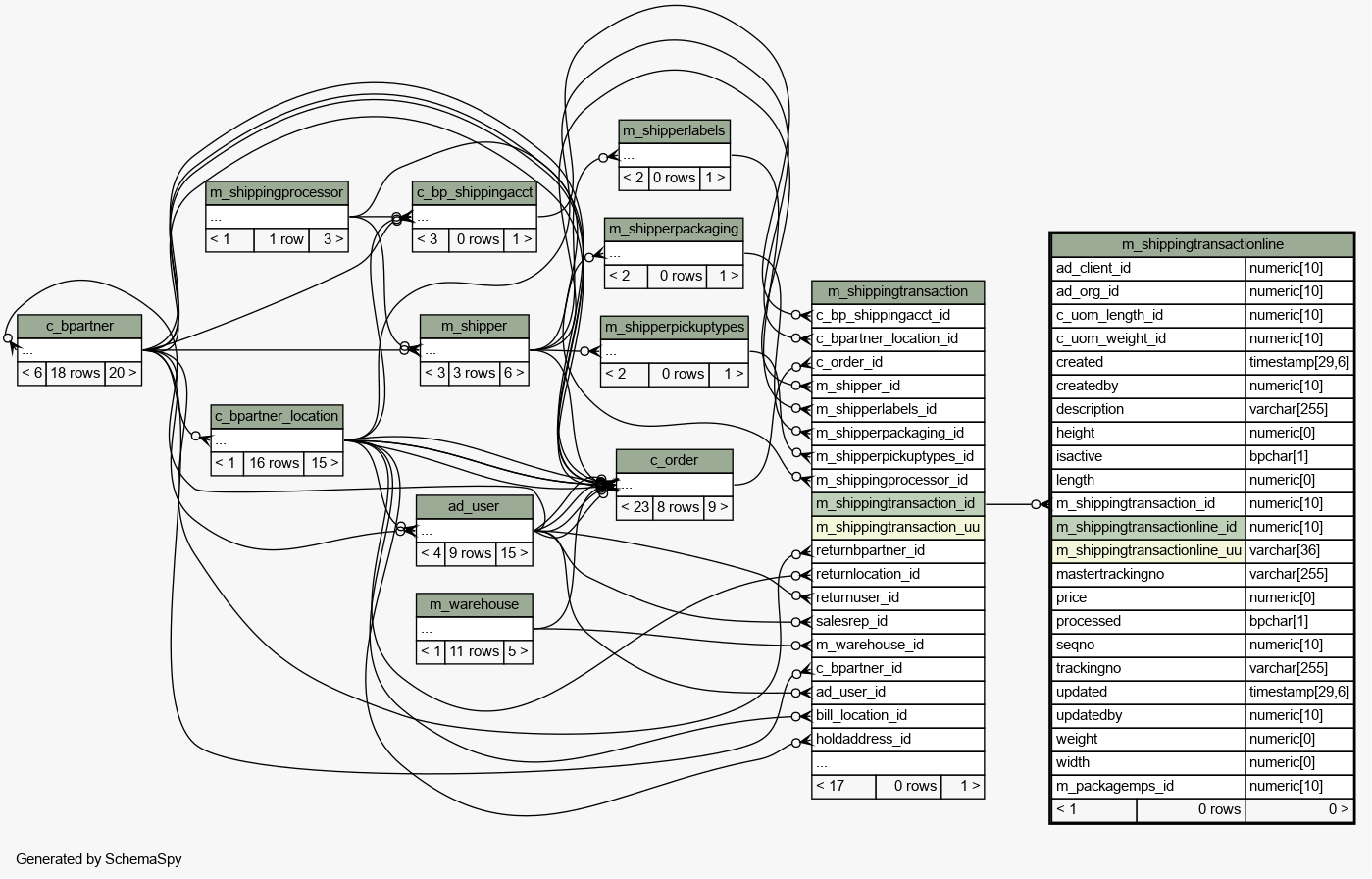

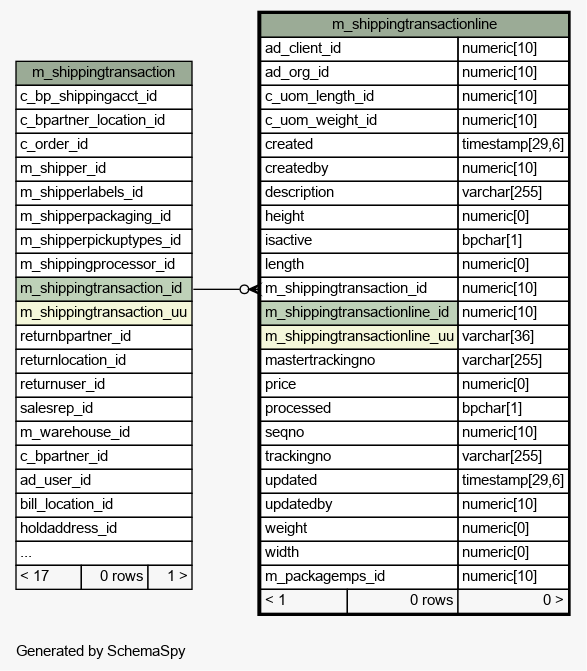

Close relationships  within of separation:
