Table idempiere11.adempiere.ad_wf_nodenext
Workflow Node Transition

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_nodenext_id numeric 10 Workflow Node Transition
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_wf_node_id numeric 10
ad_wf_node.ad_wf_node_id adwfnode_adwfnodenext C
Workflow Node (activity), step or process
ad_wf_next_id numeric 10
ad_wf_node.ad_wf_node_id adwfnodenext_adwfnodenext C
Next Node in workflow
description varchar 255  √  null Optional short description of the record
seqno numeric 10 Method of ordering records; lowest number comes first
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
transitioncode varchar 2000  √  null Code resulting in TRUE of FALSE
isstduserworkflow bpchar 1 'N'::bpchar Standard Manual User Approval Workflow
ad_wf_nodenext_uu varchar 36  √  NULL::character varying AD_WF_NodeNext_UU

Table contained 204 rows at 2024-01-03 13:52 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_nodenext_id Primary key Asc ad_wf_nodenext_pkey
ad_wf_nodenext_uu Must be unique Asc ad_wf_nodenext_uu_idx

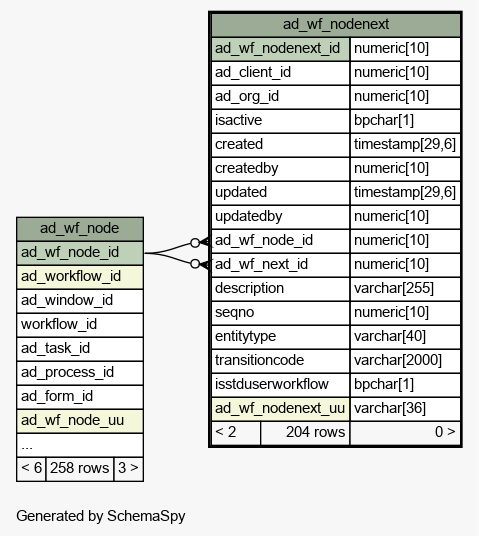

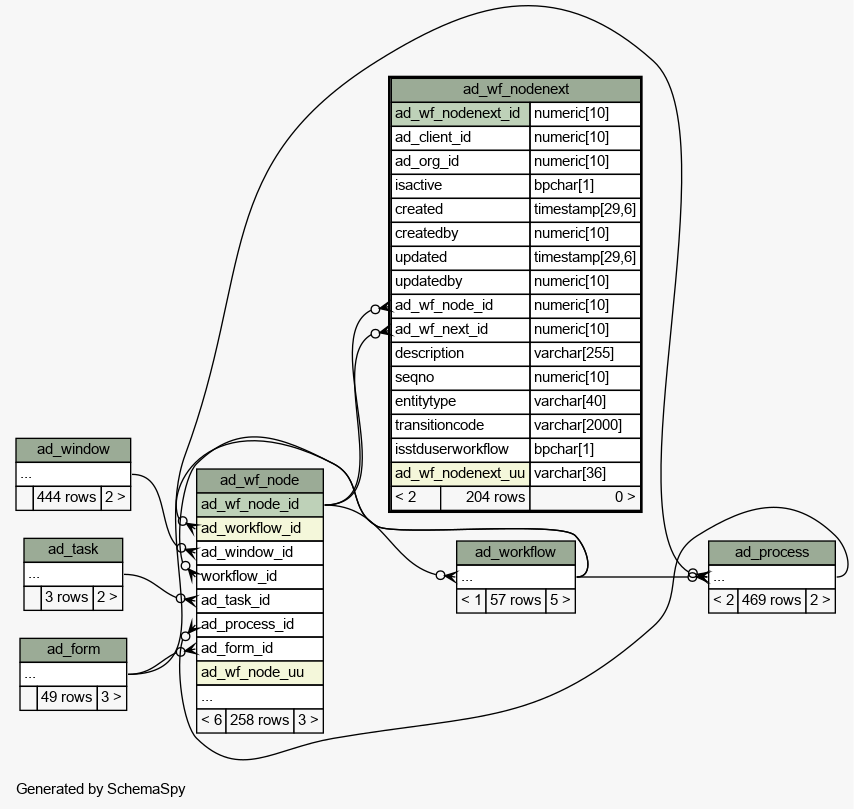

Close relationships  within of separation:
