Table idempiere11.adempiere.c_chargetype
Charge Type

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 NULL::numeric Tenant for this installation.
ad_org_id numeric 10 NULL::numeric Organizational entity within tenant
c_chargetype_id numeric 10
c_charge.c_chargetype_id cchargetype_ccharge R
c_chargetype_doctype.c_chargetype_id cchargetype_cchargetypedoctype R
Charge Type
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
isactive bpchar 1 'Y'::bpchar The record is active in the system
name varchar 60 Alphanumeric identifier of the entity
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40 Search key for the record in the format required - must be unique
c_chargetype_uu varchar 36  √  NULL::character varying C_ChargeType_UU

Table contained 0 rows at 2024-01-03 13:51 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_chargetype_id Primary key Asc c_chargetype_key
c_chargetype_uu Must be unique Asc c_chargetype_uu_idx

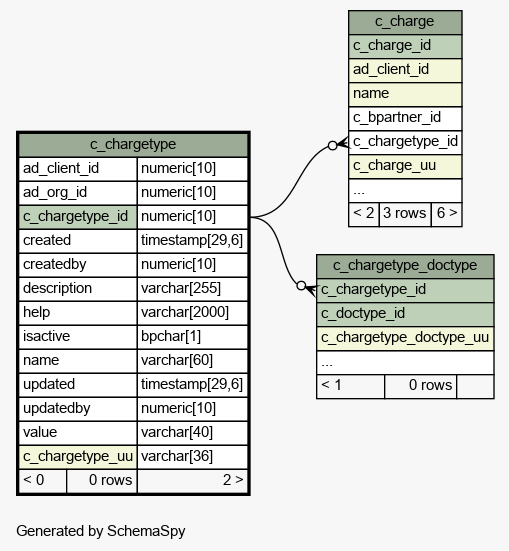

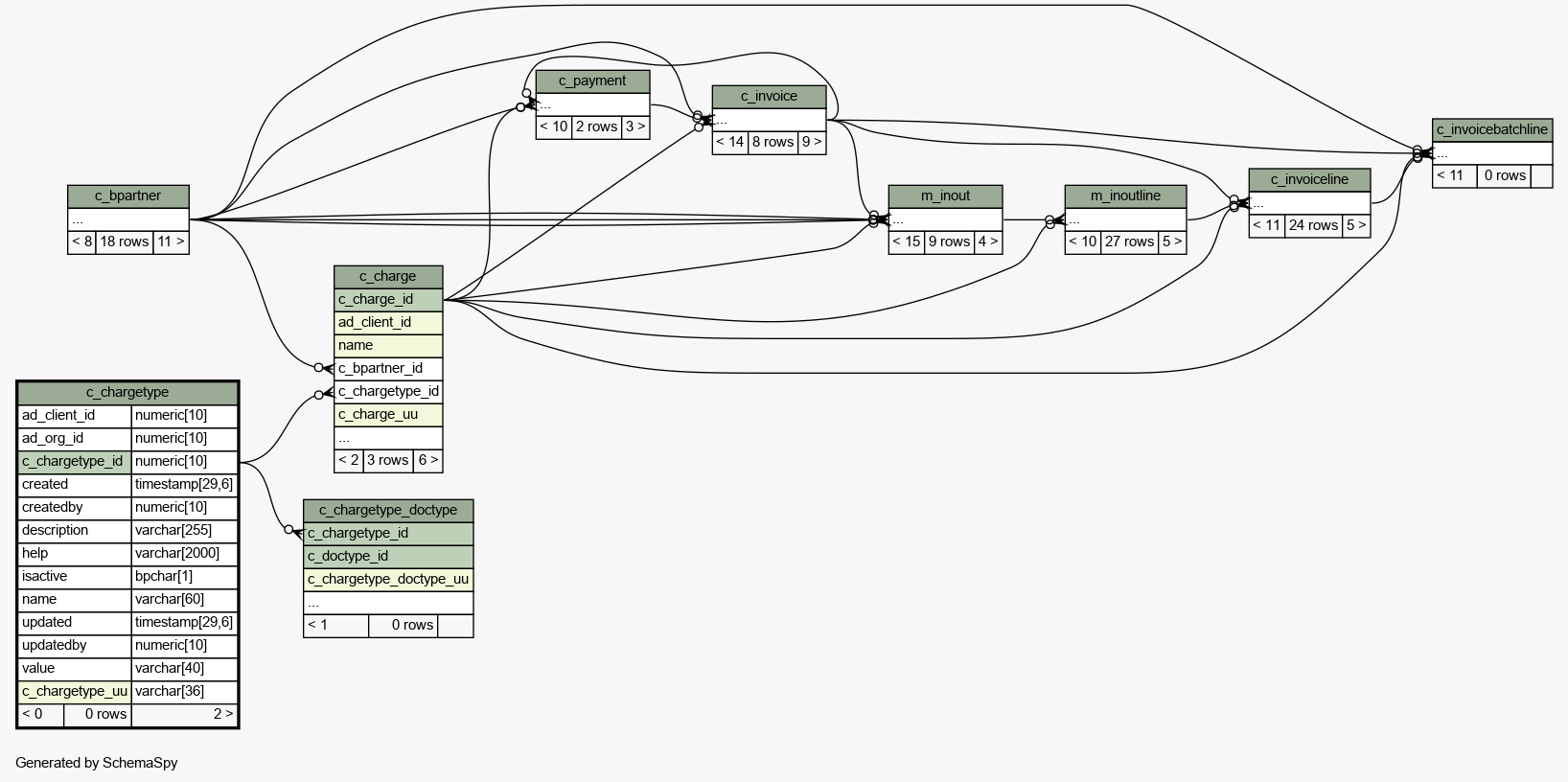

Close relationships  within of separation:
