Table idempiere11.adempiere.m_inoutlineconfirm
Material Shipment or Receipt Confirmation Line

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_inoutlineconfirm_id numeric 10
i_inoutlineconfirm.m_inoutlineconfirm_id minoutlineconfirm_import C
Material Shipment or Receipt Confirmation Line
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
m_inoutconfirm_id numeric 10 Material Shipment or Receipt Confirmation
m_inoutline_id numeric 10 Line on Shipment or Receipt document
targetqty numeric 0 0 Target Movement Quantity
confirmedqty numeric 0 0 Confirmation of a received quantity
description varchar 255  √  null Optional short description of the record
processed bpchar 1 'N'::bpchar The document has been processed
differenceqty numeric 0  √  null Difference Quantity
scrappedqty numeric 0  √  null The Quantity scrapped due to QA issues
m_inventoryline_id numeric 10  √  null
m_inventoryline.m_inventoryline_id minventoryline_minoutlineconfi R
Unique line in an Inventory document
c_invoiceline_id numeric 10  √  null
c_invoiceline.c_invoiceline_id cinvoiceline_minoutlineconfirm R
Invoice Detail Line
confirmationno varchar 20  √  null Confirmation Number
m_inoutlineconfirm_uu varchar 36  √  NULL::character varying M_InOutLineConfirm_UU

Table contained 1 rows at 2024-01-03 13:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_inoutlineconfirm_id Primary key Asc m_inoutlineconfirm_pkey
m_inoutlineconfirm_uu Must be unique Asc m_inoutlineconfirm_uu_idx

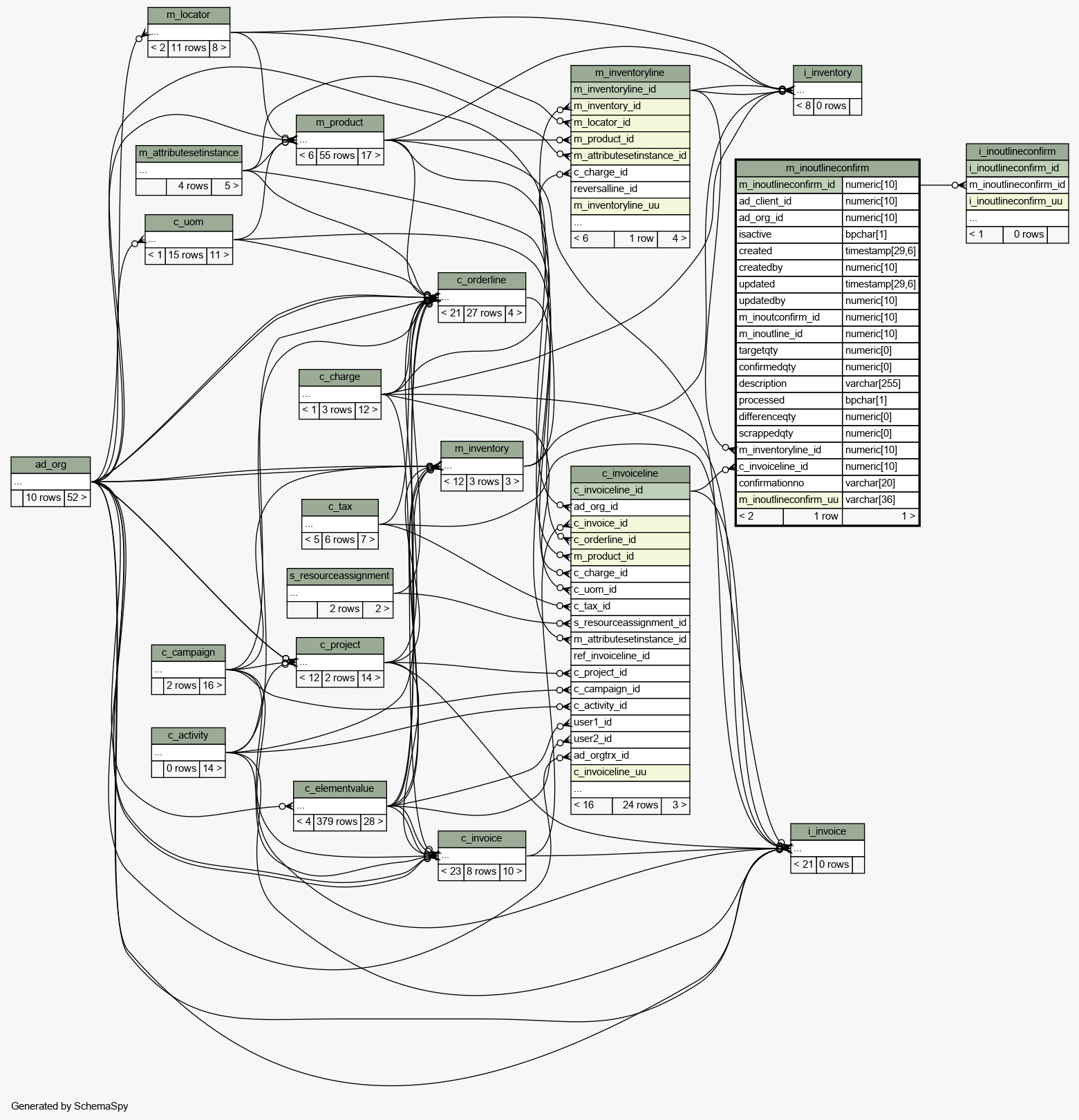

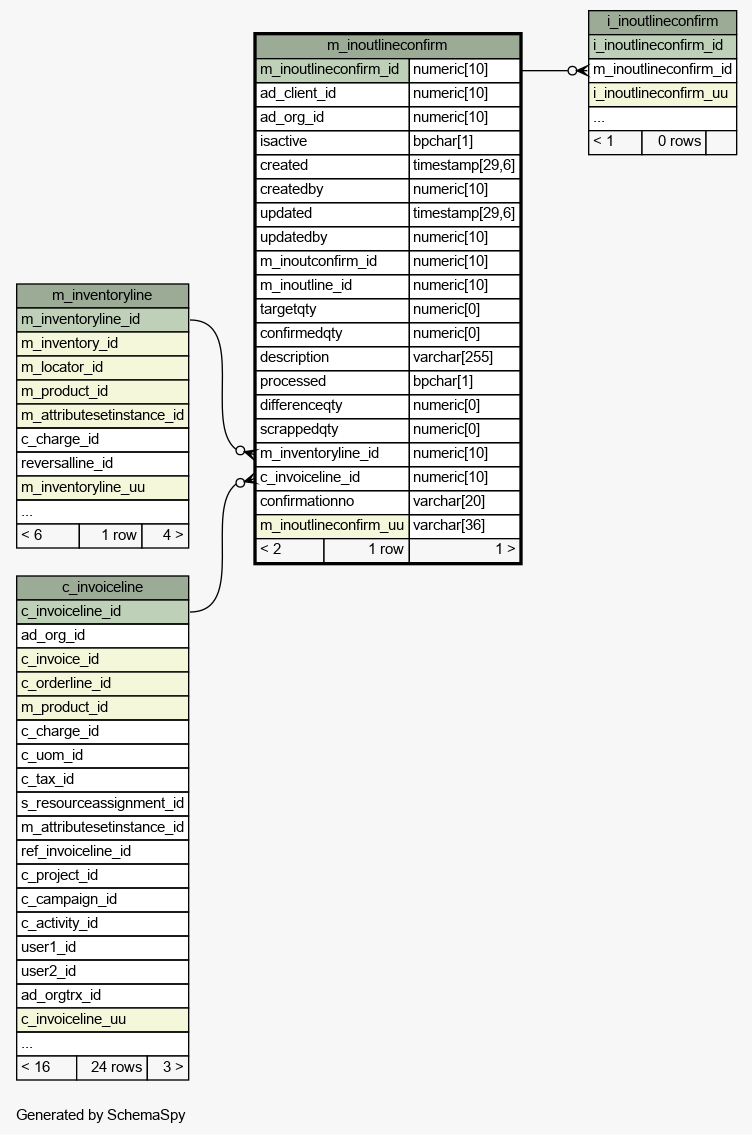

Close relationships  within of separation:
