Table idempiere11.adempiere.i_reportline
Import Report Line Set values

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
i_reportline_id numeric 10 Import Report Line Set values
ad_client_id numeric 10  √  null Tenant for this installation.
ad_org_id numeric 10  √  null Organizational entity within tenant
isactive bpchar 1  √  'Y'::bpchar The record is active in the system
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10  √  null User who created this records
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10  √  null User who updated this records
i_isimported bpchar 1 'N'::bpchar Has this import been processed
i_errormsg varchar 2000  √  null Messages generated from import process
reportlinesetname varchar 60  √  null Name of the Report Line Set
pa_reportlineset_id numeric 10  √  null
pa_reportlineset.pa_reportlineset_id pareportlineset_ireportline N
Report Line Set
name varchar 60  √  null Alphanumeric identifier of the entity
pa_reportline_id numeric 10  √  null
pa_reportline.pa_reportline_id pareportline_ireportline N
Report Line
description varchar 255  √  null Optional short description of the record
seqno numeric 10  √  null Method of ordering records; lowest number comes first
issummary bpchar 1  √  'N'::bpchar This is a summary entity
isprinted bpchar 1  √  'Y'::bpchar Indicates if this document / line is printed
linetype bpchar 1  √  null Line Type
calculationtype bpchar 1  √  null Calculation
amounttype bpchar 2  √  null Type of amount to report
postingtype bpchar 1  √  null The type of posted amount for the transaction
pa_reportsource_id numeric 10  √  null
pa_reportsource.pa_reportsource_id pareportsource_ireportline N
Restriction of what will be shown in Report Line
c_elementvalue_id numeric 10  √  null
c_elementvalue.c_elementvalue_id celementvalue_ireportline N
Account Element
elementvalue varchar 40  √  null Key of the element
processing bpchar 1  √  null Process Now
processed bpchar 1  √  'N'::bpchar The document has been processed
paamounttype bpchar 1  √  NULL::bpchar PA Amount Type for reporting
paperiodtype bpchar 1  √  NULL::bpchar PA Period Type
i_reportline_uu varchar 36  √  NULL::character varying I_ReportLine_UU

Table contained 0 rows at 2024-01-03 13:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
i_reportline_id Primary key Asc i_reportline_pkey
i_reportline_uu Must be unique Asc i_reportline_uu_idx

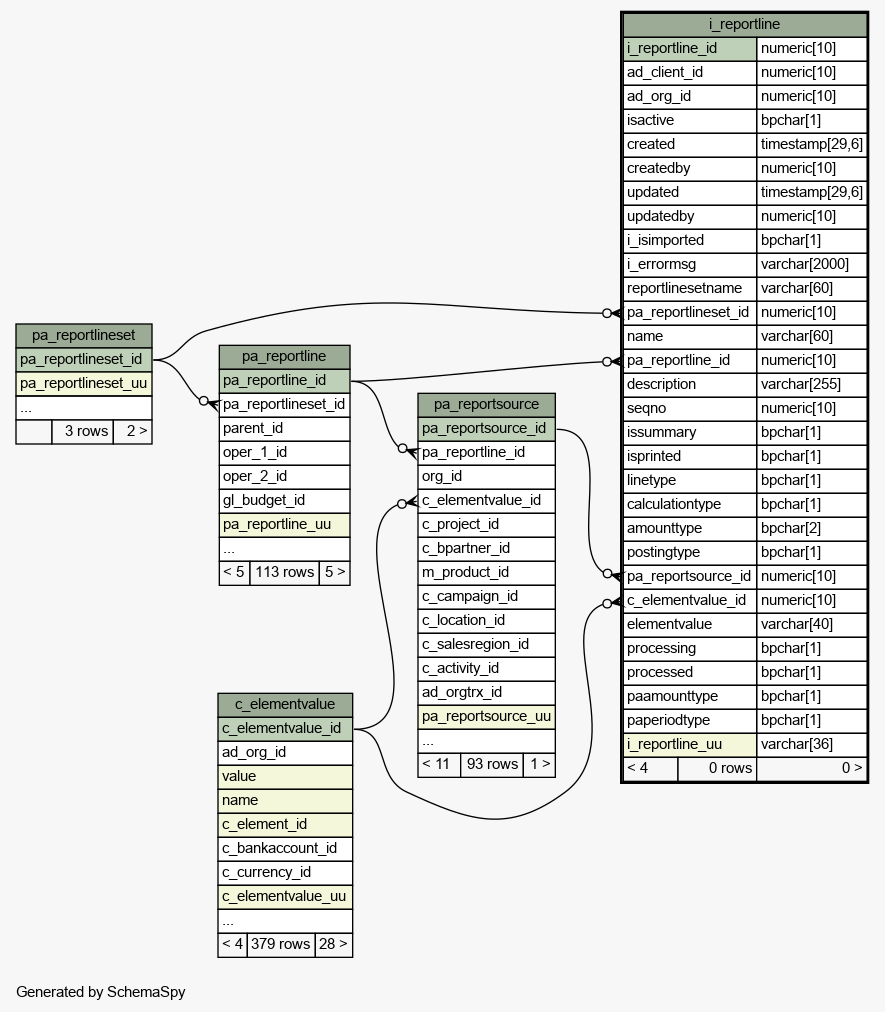

Close relationships  within of separation:
