Table idempiere11.adempiere.ad_ctxhelp
Context Help

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_ctxhelp_id numeric 10
ad_ctxhelpmsg.ad_ctxhelp_id adctxhelp_adctxhelpmsg R
ad_form.ad_ctxhelp_id adctxhelp_adform R
ad_process.ad_ctxhelp_id adctxhelp_adprocess R
Context Help
ad_ctxhelp_uu varchar 36  √  NULL::character varying AD_CtxHelp_UU
ad_form_id numeric 10  √  NULL::numeric
ad_org_id numeric 10 Organizational entity within tenant
ad_process_id numeric 10  √  NULL::numeric
ad_tab_id numeric 10  √  NULL::numeric
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
ctxtype bpchar 1  √  null Type of Context Help
description varchar 255  √  NULL::character varying Optional short description of the record
isactive bpchar 1 'Y'::bpchar The record is active in the system
name varchar 120 Alphanumeric identifier of the entity
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
ad_infowindow_id numeric 10  √  null
ad_workflow_id numeric 10  √  NULL::numeric
ad_task_id numeric 10  √  NULL::numeric
ad_table_id numeric 10  √  NULL::numeric

Table contained 0 rows at 2024-01-03 13:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_ctxhelp_id Primary key Asc ad_ctxhelp_key
ad_ctxhelp_uu Must be unique Asc ad_ctxhelp_uu_idx

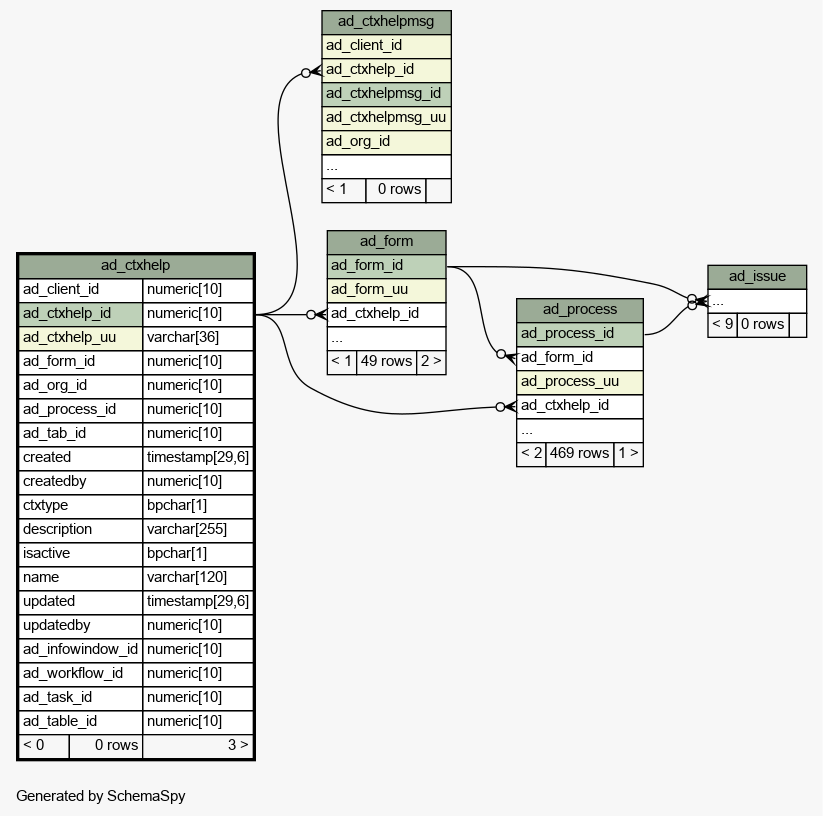

Close relationships  within of separation:
