Table idempiere11.adempiere.gl_budgetcontrol
Budget Control

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
gl_budgetcontrol_id numeric 10 Budget Control
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
c_acctschema_id numeric 10
c_acctschema.c_acctschema_id cacctschema_glbudgetcontrol R
Rules for accounting
gl_budget_id numeric 10
gl_budget.gl_budget_id glbudget_glbudgetcontrol R
General Ledger Budget
commitmenttype bpchar 1 Create Commitment and/or Reservations for Budget Control
isbeforeapproval bpchar 1 'N'::bpchar The Check is before the (manual) approval
budgetcontrolscope bpchar 1 Scope of the Budget Control
gl_budgetcontrol_uu varchar 36  √  NULL::character varying GL_BudgetControl_UU

Table contained 0 rows at 2024-01-03 13:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
gl_budgetcontrol_id Primary key Asc gl_budgetcontrol_pkey
gl_budgetcontrol_uu Must be unique Asc gl_budgetcontrol_uu_idx

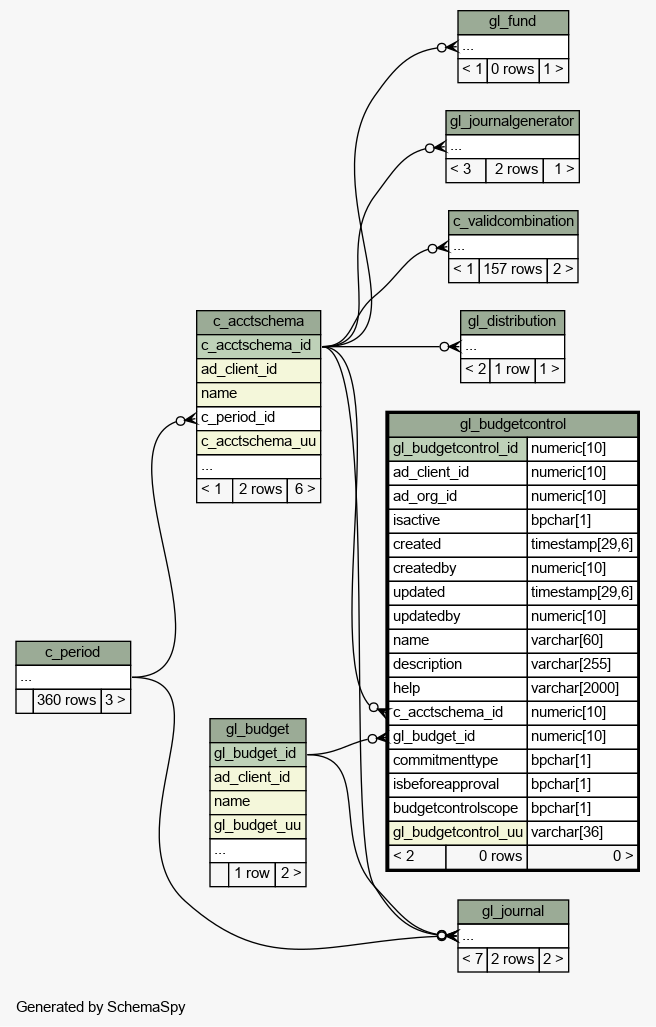

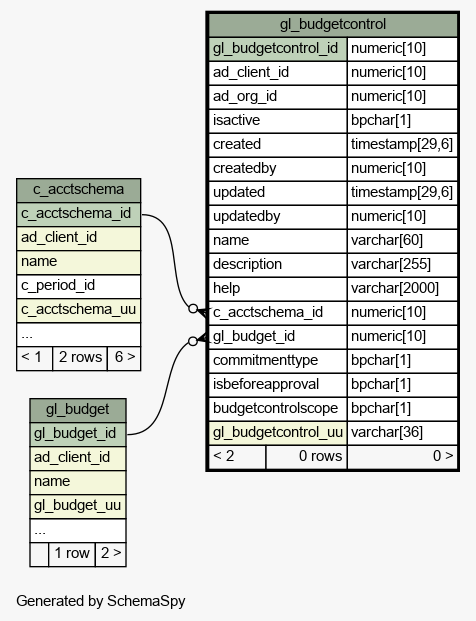

Close relationships  within of separation:
