Table idempiere11.adempiere.ad_replicationstrategy
Data Replication Strategy

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_replicationstrategy_id numeric 10
ad_replication.ad_replicationstrategy_id adreplicationstrategy_adrep R
ad_replicationtable.ad_replicationstrategy_id adrepstrategy_adreptable R
Data Replication Strategy
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
exp_processor_id numeric 10  √  null Export Processor
value varchar 40  √  null Search key for the record in the format required - must be unique
ad_replicationstrategy_uu varchar 36  √  NULL::character varying AD_ReplicationStrategy_UU

Table contained 2 rows at 2024-01-03 13:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_replicationstrategy_id Primary key Asc ad_replicationstrategy_pkey
ad_replicationstrategy_uu Must be unique Asc ad_replicationstrategy_uu_idx
ad_client_id + value Must be unique Asc/Asc ad_replicationstrategy_value

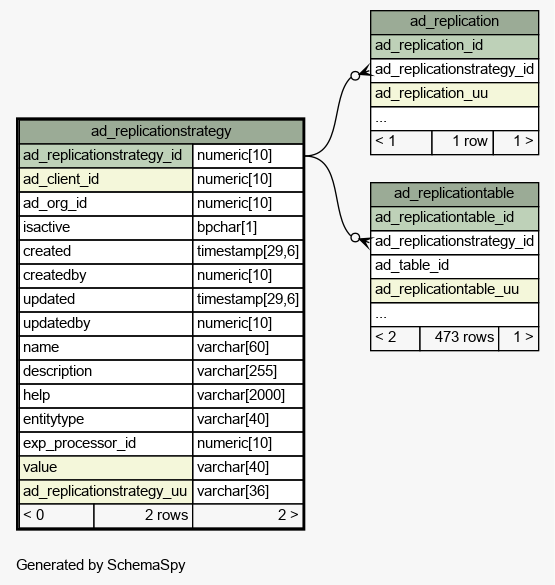

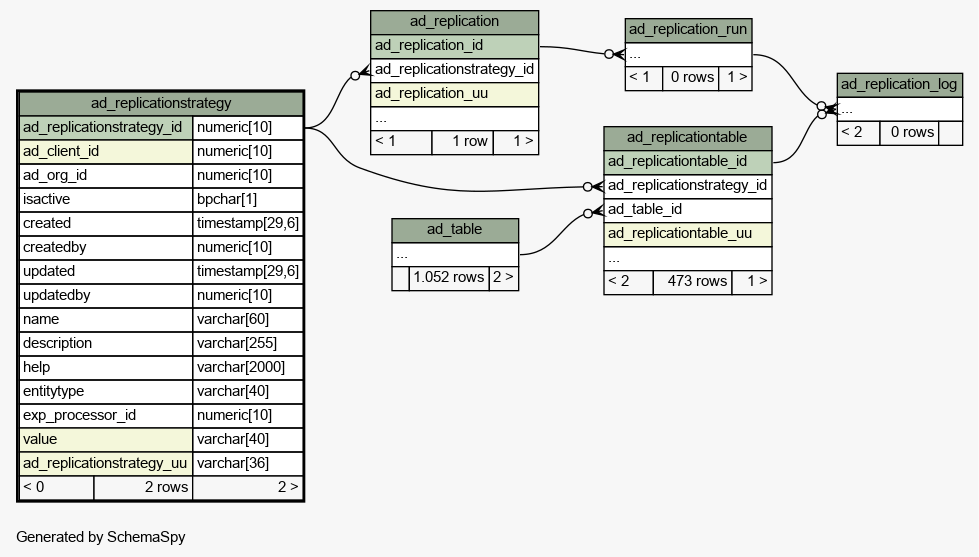

Close relationships  within of separation:
