Table idempiere11.adempiere.m_transaction
Inventory Transaction

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_transaction_id numeric 10 Inventory Transaction
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
movementtype bpchar 2 Method of moving the inventory
m_locator_id numeric 10
m_locator.m_locator_id mlocator_minventorycount R
Warehouse Locator
m_product_id numeric 10
m_product.m_product_id mproduct_minventorycount R
Product, Service, Item
movementdate timestamp 29,6 Date a product was moved in or out of inventory
movementqty numeric 0 0 Quantity of a product moved.
m_inventoryline_id numeric 10  √  null
m_inventoryline.m_inventoryline_id minventoryline_mtransaction R
Unique line in an Inventory document
m_movementline_id numeric 10  √  null
m_movementline.m_movementline_id mmovementline_mtransaction R
Inventory Move document Line
m_inoutline_id numeric 10  √  null
m_inoutline.m_inoutline_id minoutline_mtransaction R
Line on Shipment or Receipt document
m_productionline_id numeric 10  √  null
m_productionline.m_productionline_id mproductionline_mtransaction R
Document Line representing a production
c_projectissue_id numeric 10  √  null
c_projectissue.c_projectissue_id cprojectissue_mtransaction R
Project Issues (Material, Labor)
m_attributesetinstance_id numeric 10 0
m_attributesetinstance.m_attributesetinstance_id mattrsetinst_mtransaction R
Product Attribute Set Instance
pp_cost_collector_id numeric 10  √  null Manufacturing Cost Collector
m_transaction_uu varchar 36  √  NULL::character varying M_Transaction_UU

Table contained 28 rows at 2024-01-03 13:47 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_transaction_id Primary key Asc m_transaction_pkey
m_transaction_uu Must be unique Asc m_transaction_uu_idx
m_product_id Performance Asc m_transsaction_product

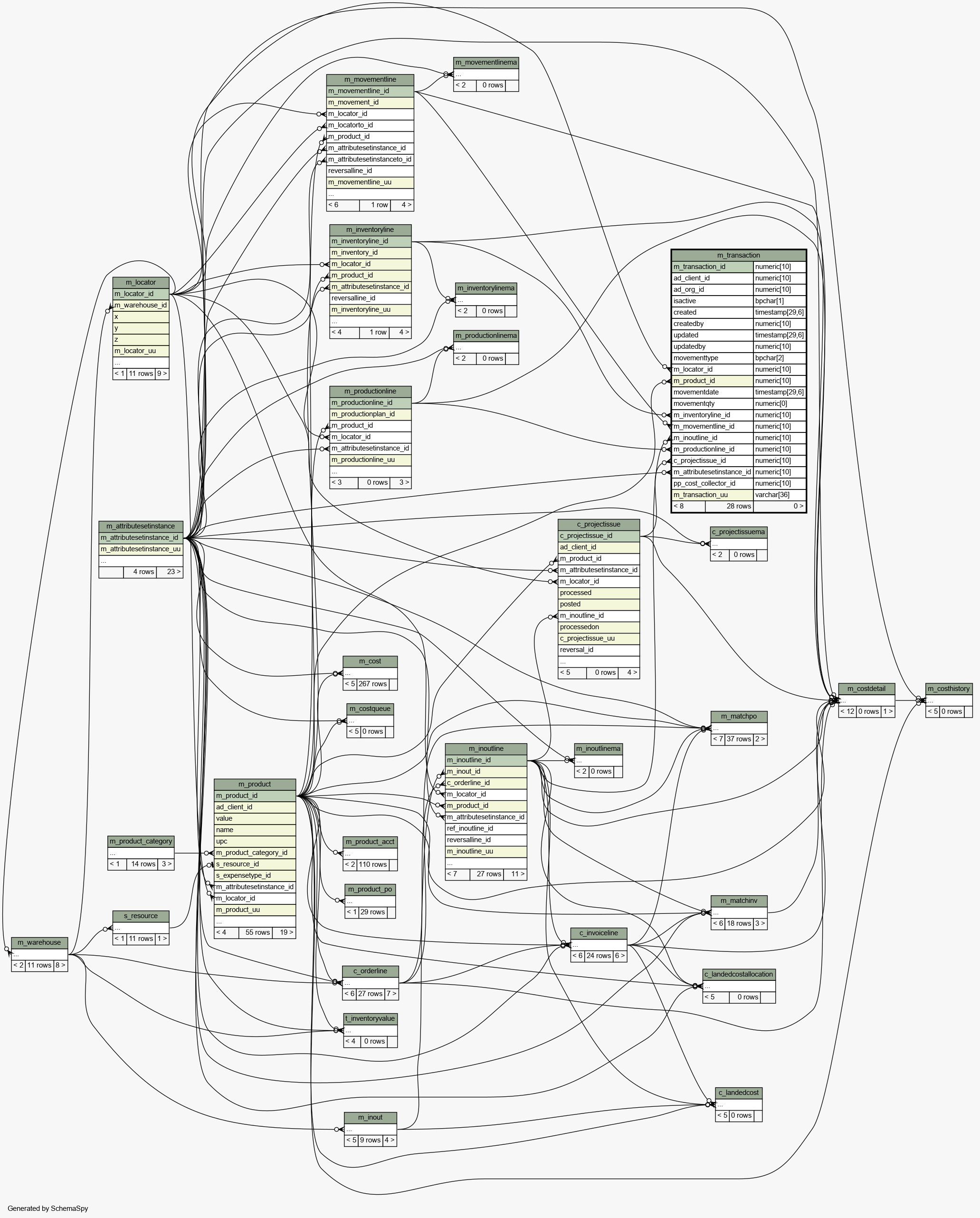

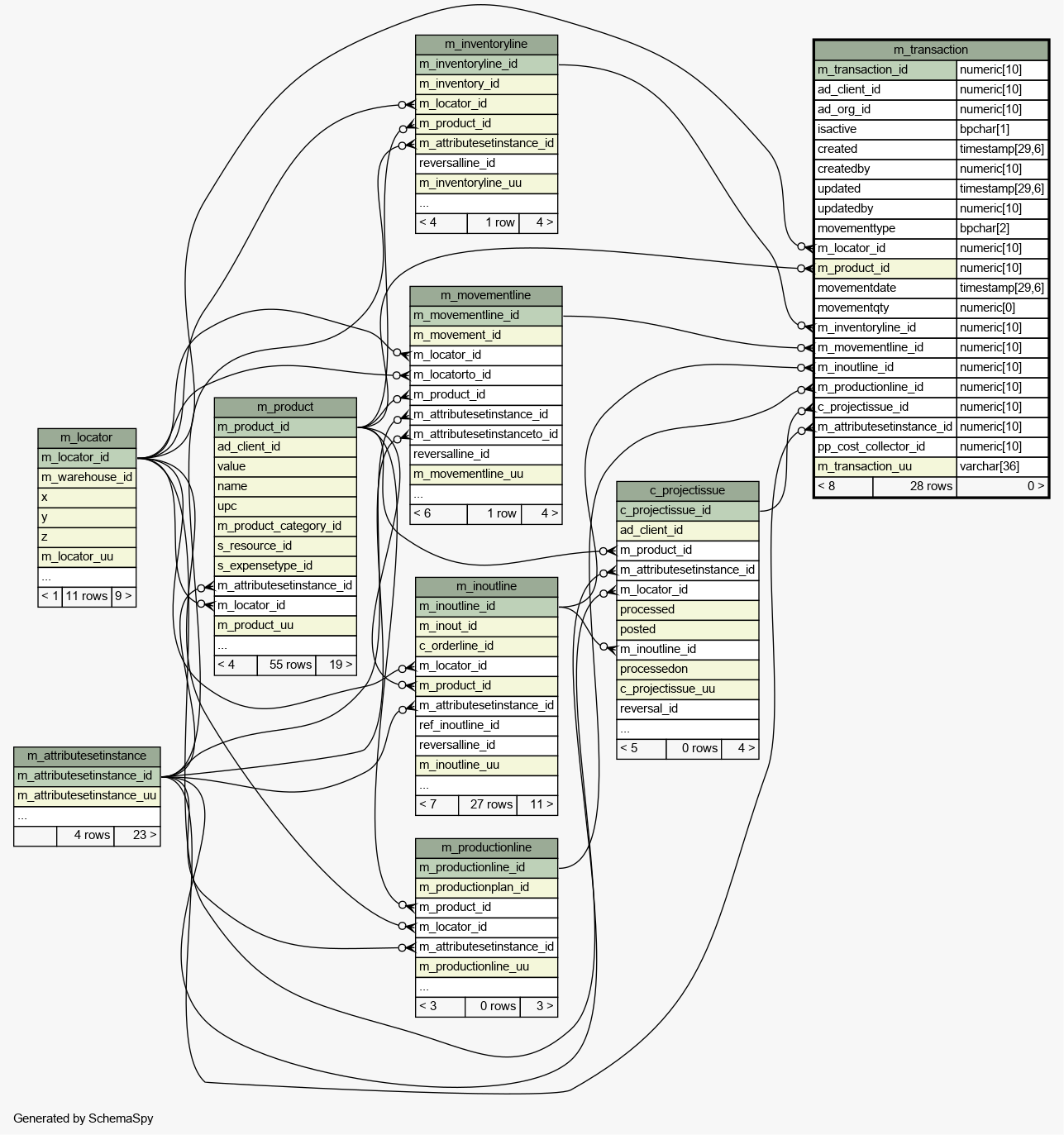

Close relationships  within of separation:
