Table idempiere11.adempiere.ad_zoomcondition
Zoom condition

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
ad_table_id numeric 10
ad_table.ad_table_id adtable_adzoomcondition R
Database Table information
ad_window_id numeric 10  √  NULL::numeric
ad_window.ad_window_id adwindow_adzoomcondition R
Data entry or display window
ad_zoomcondition_id numeric 10 Zoom condition
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
isactive bpchar 1 'Y'::bpchar The record is active in the system
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
seqno numeric 10  √  NULL::numeric Method of ordering records; lowest number comes first
whereclause varchar 2000  √  null Fully qualified SQL WHERE clause
name varchar 60 Alphanumeric identifier of the entity
ad_zoomcondition_uu varchar 36  √  NULL::character varying AD_ZoomCondition_UU
zoomlogic varchar 2000  √  NULL::character varying the result determines if the zoom condition is applied
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization

Table contained 7 rows at 2024-01-03 13:46 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_zoomcondition_id Primary key Asc ad_zoomcondition_key
ad_zoomcondition_uu Must be unique Asc ad_zoomcondition_uu_idx

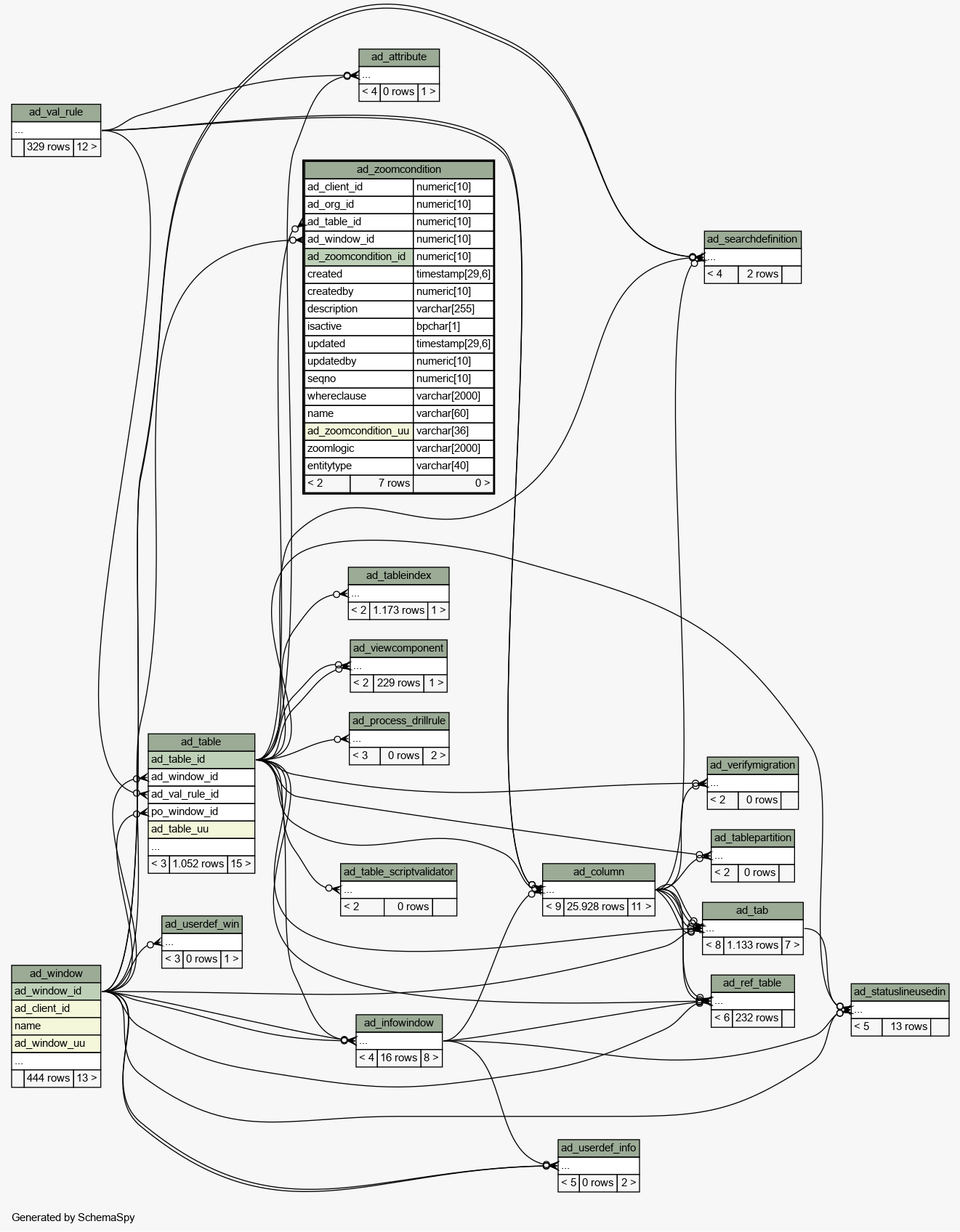

Close relationships  within of separation:
