Table idempiere11.adempiere.ad_tableindex
Index definition for table

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
ad_table_id numeric 10
ad_table.ad_table_id adtable_adtableindex R
Database Table information
ad_tableindex_id numeric 10
ad_indexcolumn.ad_tableindex_id adtableindex_adindexcolumn R
Table Index
ad_tableindex_uu varchar 36  √  NULL::character varying AD_TableIndex_UU
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
help varchar 2000  √  NULL::character varying Comment or Hint
isactive bpchar 1 The record is active in the system
iscreateconstraint bpchar 1 'N'::bpchar Create Constraint
isunique bpchar 1 'N'::bpchar Unique
name varchar 128 Alphanumeric identifier of the entity
processing bpchar 1  √  NULL::bpchar Process Now
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
ad_message_id numeric 10  √  NULL::numeric
ad_message.ad_message_id admessage_adtableindex R
System Message
tableindexdrop bpchar 1  √  NULL::bpchar Drop table index
iskey bpchar 1 'N'::bpchar This column is the key in this table

Table contained 1.173 rows at 2024-01-03 13:46 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_tableindex_id Primary key Asc ad_tableindex_key
Must be unique ad_tableindex_name
ad_tableindex_uu Must be unique Asc ad_tableindex_uu_idx

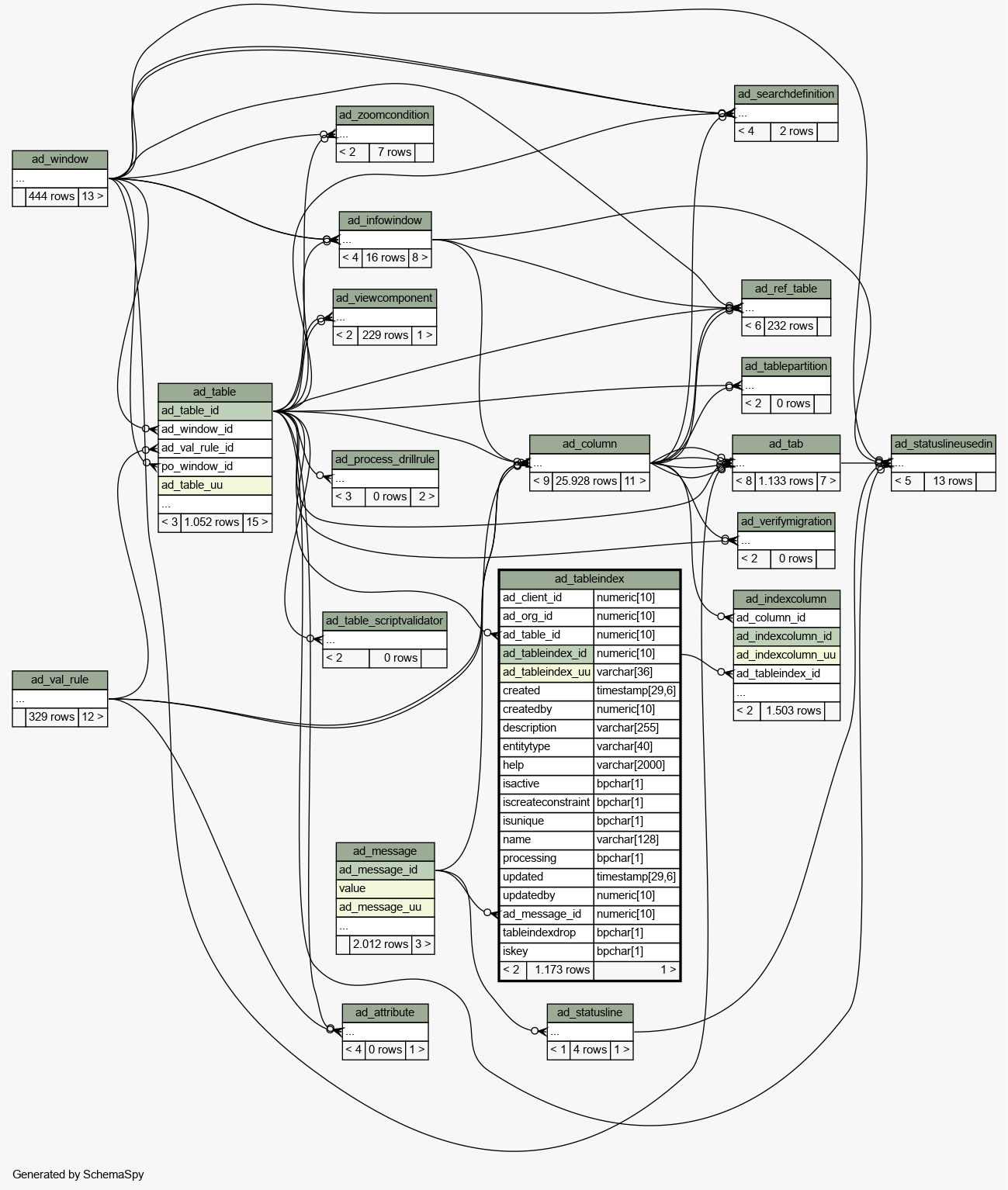

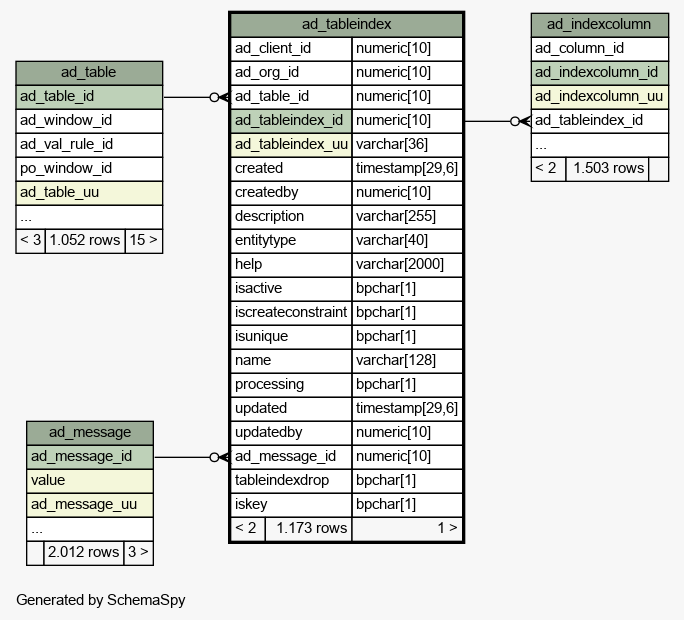

Close relationships  within of separation:
