Table idempiere11.adempiere.ad_inforelated
Info Related

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_inforelated_id numeric 10
ad_userdef_info_related.ad_inforelated_id adinforelated_aduserdefinforel R
Info Related
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 The record is active in the system
created timestamp 29,6 Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  NULL::character varying Optional short description of the record
help varchar 2000  √  NULL::character varying Comment or Hint
ad_infowindow_id numeric 10
ad_infowindow.ad_infowindow_id adinfowindow_adinforelated R
Info and search/select Window
seqno numeric 10 Method of ordering records; lowest number comes first
relatedinfo_id numeric 10 (0)::numeric
ad_infowindow.ad_infowindow_id relatedinfo_adinforelated R
Related Info Window
relatedcolumn_id numeric 10 (0)::numeric
ad_infocolumn.ad_infocolumn_id relatedcolumn_adinforelated R
Related Info Column
ad_inforelated_uu varchar 36  √  NULL::character varying AD_InfoRelated_UU
parentrelatedcolumn_id numeric 10  √  NULL::numeric
ad_infocolumn.ad_infocolumn_id parentrelatedcolumn_adinforela R
column in parent info window, link with column in this relate info
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
displaylogic varchar 2000  √  NULL::character varying If the Field is displayed, the result determines if the field is actually displayed

Table contained 0 rows at 2024-01-03 13:46 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_inforelated_id Primary key Asc ad_inforelated_key
ad_inforelated_uu Must be unique Asc ad_inforelated_uu_idx

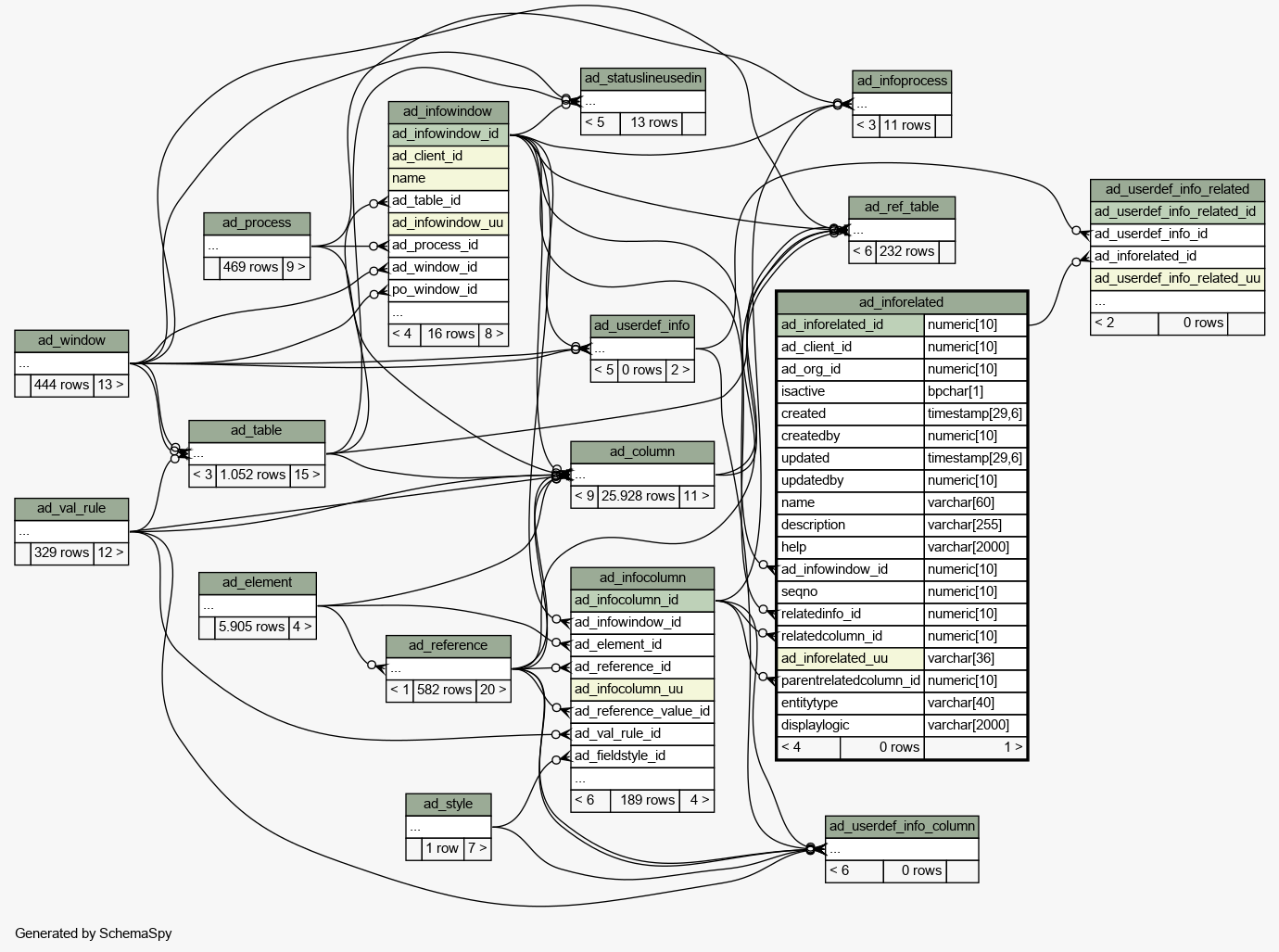

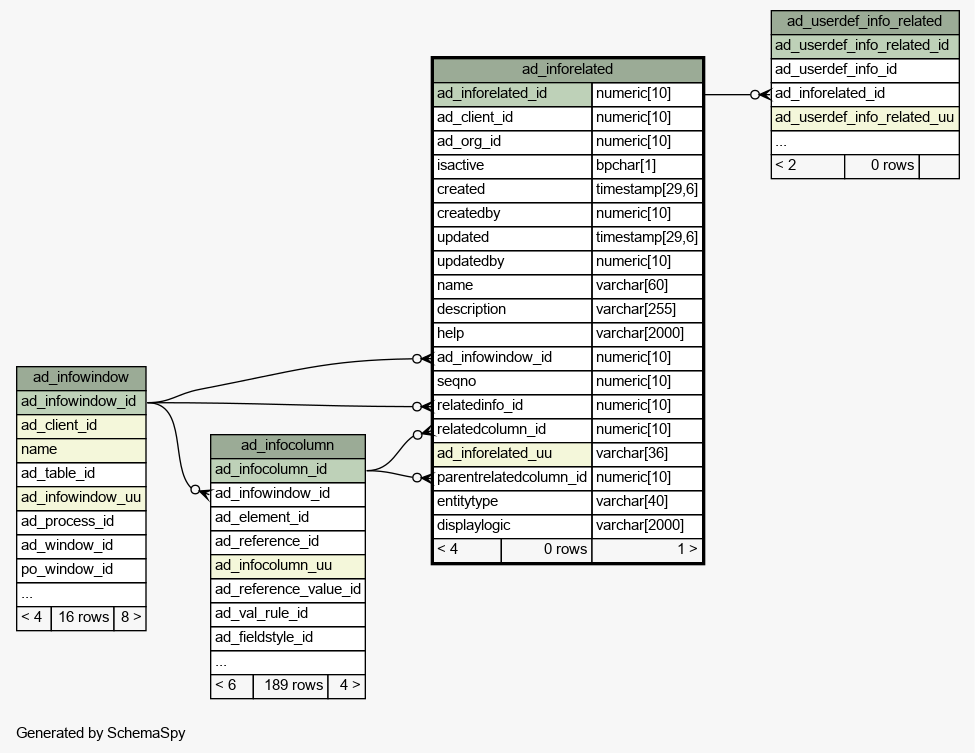

Close relationships  within of separation:
