Table idempiere11.adempiere.ad_element
System Element enables the central maintenance of column description and help.

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_element_id numeric 10
ad_column.ad_element_id ad_element_ad_column R
ad_infocolumn.ad_element_id adelement_adinfocolumn R
ad_process_para.ad_element_id adelement_adprocesspara R
ad_reference.ad_element_id adelement_adreference R
System Element enables the central maintenance of column description and help.
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
columnname varchar 30 Name of the column in the database
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
name varchar 60 Alphanumeric identifier of the entity
printname varchar 60 The label text to be printed on a document or correspondence.
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
po_name varchar 60  √  null Name on PO Screens
po_printname varchar 60  √  null Print name on PO Screens/Reports
po_description varchar 255  √  null Description in PO Screens
po_help varchar 2000  √  null Help for PO Screens
ad_element_uu varchar 36  √  NULL::character varying AD_Element_UU
placeholder varchar 255  √  NULL::character varying Placeholder

Table contained 5.905 rows at 2024-01-03 13:46 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_element_id Primary key Asc ad_element_pkey
ad_client_id + ad_org_id Performance Asc/Asc ad_element_clientorg
name Performance Asc ad_element_name
Must be unique ad_element_uppercolumnname
ad_element_uu Must be unique Asc ad_element_uu_idx

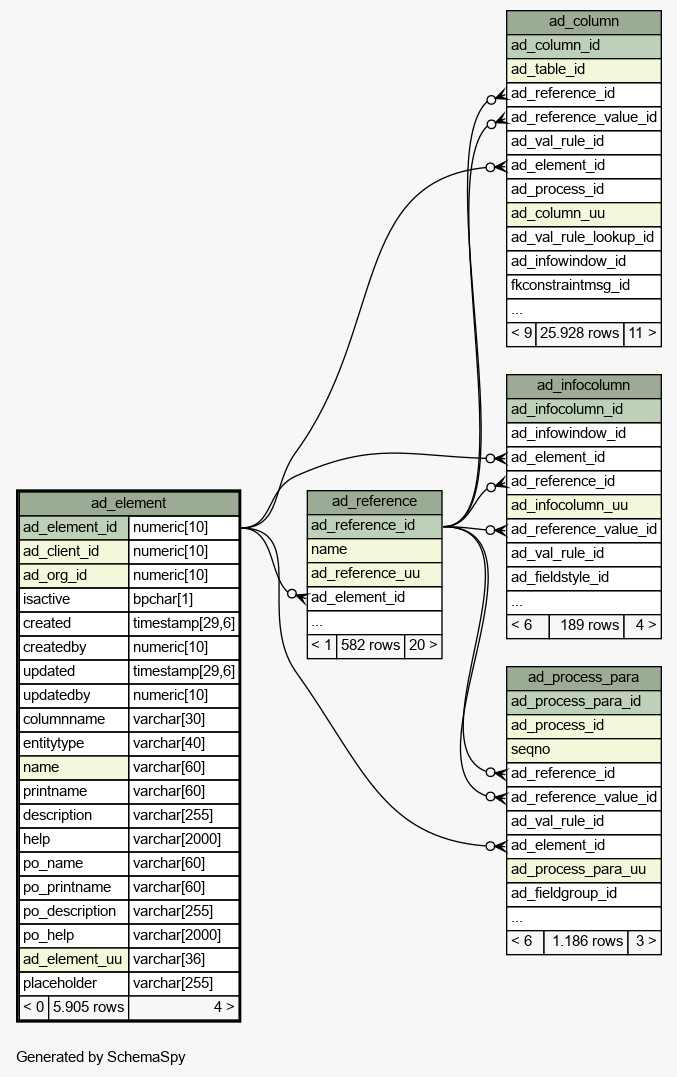

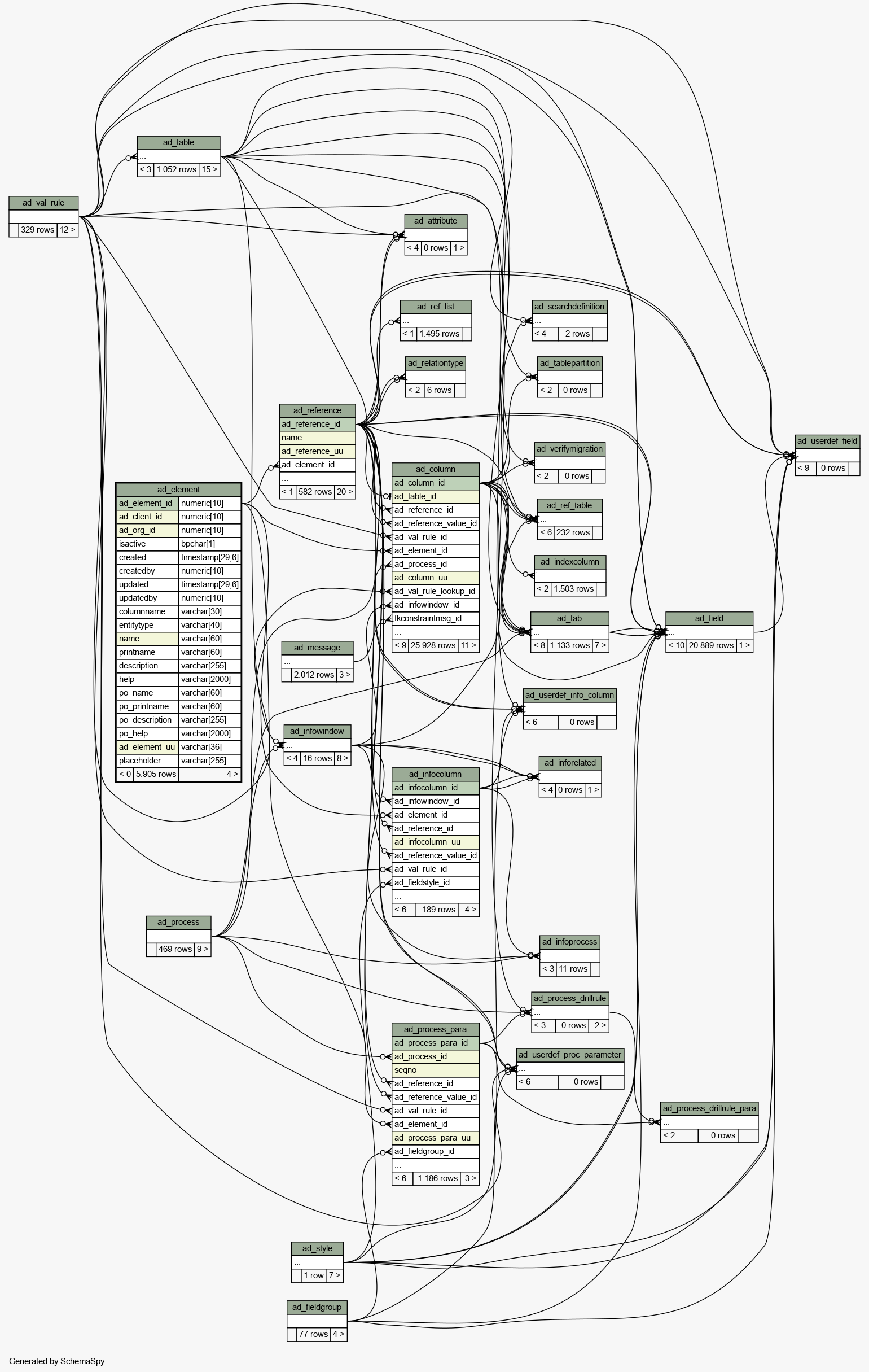

Close relationships  within of separation:
